M1135062-00 - Leeson M1135062.00 40: 1.62RPM.135LBIN.1/4HP.34 .DC GEARMOTORS SUB-FHP.180V TENV.CM34D25NZ33B

40:1.62RPM.135LBIN.1/4HP.34DC GEARMOTORS SUB-FHP.180V TENV.CM34D25NZ33B

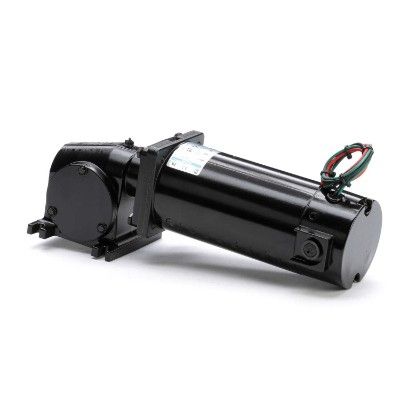

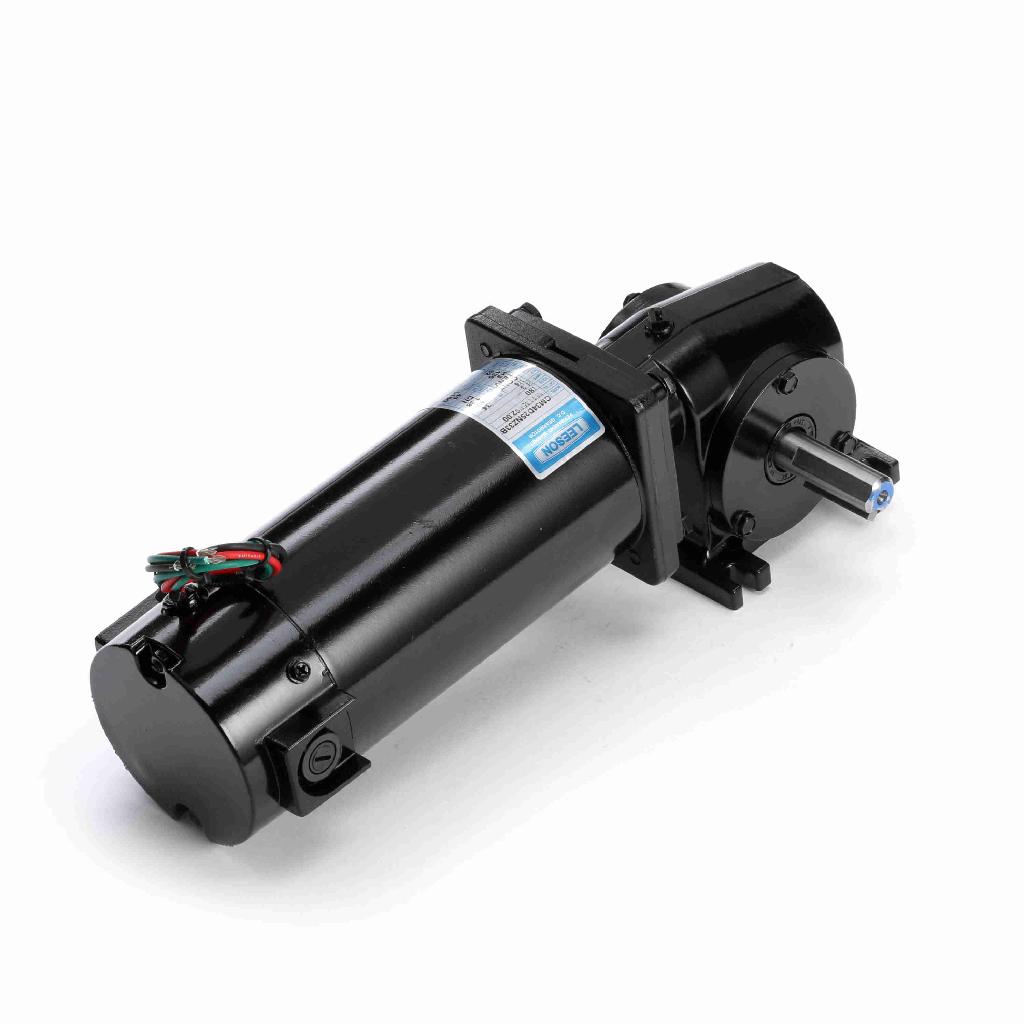

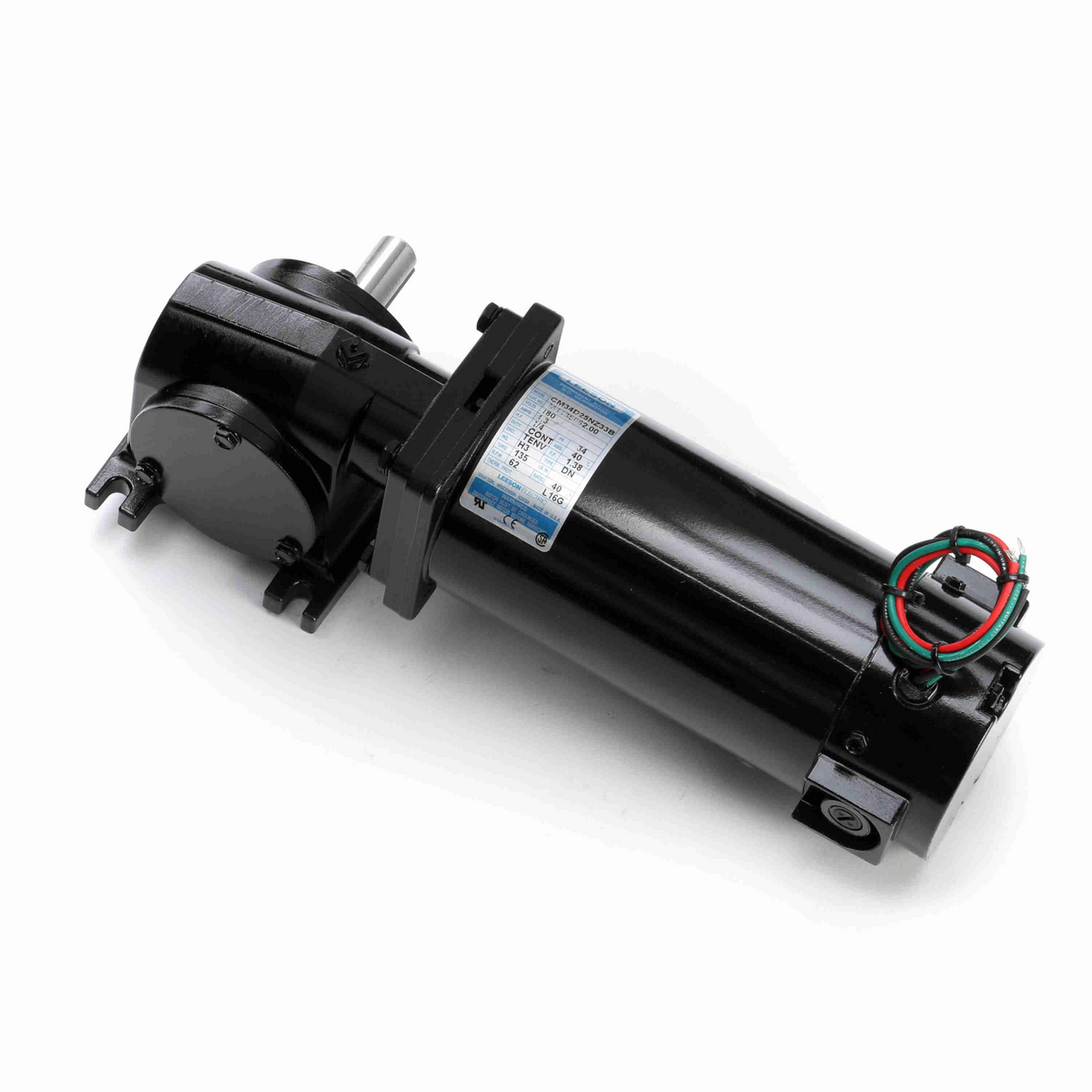

Leeson Electric M1135062.00, Right Angle DC Gearmotor, .25 HP, 180VDC, 62 RPM

<p><ul><li>Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation</li><li>Precision machined aluminum gear housing</li><li>Lubrication is permanent with an oil bath</li><li>Gearbox has all ball bearings</li><li>Output shaft is field interchangeable from left hand to right hand style by reassembly</li><li>Double output shaft available as a factory option</li><li>Optional conduit box available</li><li>Optional gearbox base available (10 Series only)</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Right Angle</li><li>kW:-0.19 kW</li><li>Input Horsepower:-1/4 hp</li><li>Motor Supply Voltage:-180 V</li><li>Gear Ratio:-40 :1</li><li>Output rpm:-62.0 rpm</li><li>Full Load Torque:-135 in-lbs</li><li>Full Load Current:-1.30 A</li><li>Frame Size:-34</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-H</li><li>Thermal Protection:-None</li><li>Standards Met:-CE,UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-5.81 in</li><li>Overall Length (C-Dimension):-12.64 in</li><li>Drive End Bearing Size:-6201-13</li><li>Opposite Drive End Bearing Size:-608</li><li>Shaft Diameter:-0.63 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-14 lbs</li></ul></p>
