M1125279.00 Leeson DC GearMotor | MROSupply.com

13.RT ANGLE.1.3CD.10:1.250RPM.50LBIN.1/4HP.32.LEFT WASHGUARD.90V.DC.TENV.CM32D25VZ8A

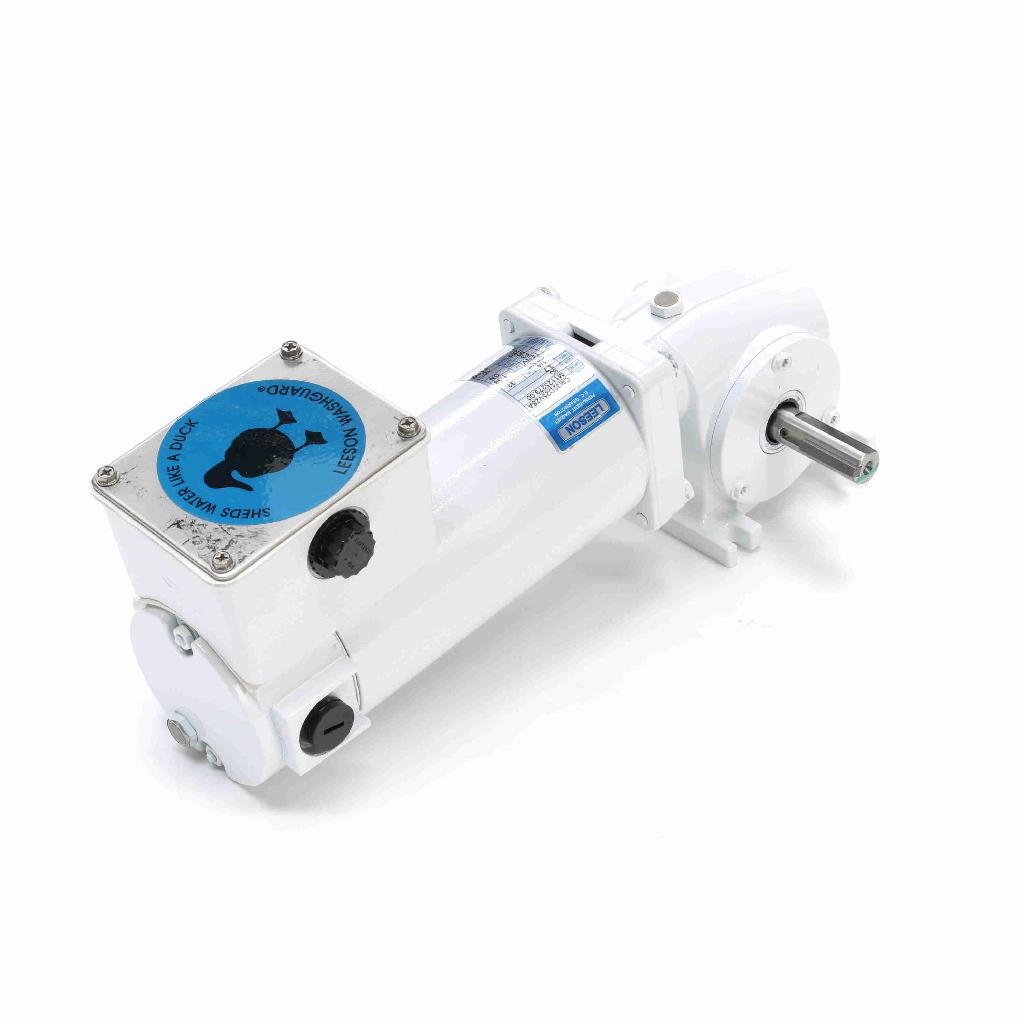

Leeson Electric M1125279.00, Right Angle DC Gearmotor (Washdown), .25 HP, 90VDC, 250 RPM

<p><ul><li>303 Stainless Steel gearbox output shaft</li><li>Frame, endshields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalies and oil</li><li>Cast conduit box with threaded conduit holes and Nitrile gaskets keep water out</li><li>Conduit box cover is made from 304 stainless steel</li><li>For any condensation that may accumulate inside the motor, a one-way stainless steel vapor vent is provided</li><li>All hardware is stainless steel</li><li>Painted with white epoxy for superior corrosion resistance and protection</li><li>Machined fits between the endbells and motor frame are sealed with gaskets</li><li>Thru-bolt heads and nuts sealed with fiber washers</li><li>O-rings under each threaded brush cover</li><li>Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation</li><li>Precision machined aluminum gear housing</li><li>Lubrication is permanent with an oil bath</li><li>Gearbox has all ball bearings</li><li>Output shaft is field interchangeable from left hand to right hand style by reassembly</li><li>Double output shaft available as a factory option</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Right Angle</li><li>Input Horsepower:-1/4 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-10 :1</li><li>Output rpm:-250.0 rpm</li><li>Full Load Torque:-50 in-lbs</li><li>Full Load Current:-3.70 A</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Footed</li><li>Insulation Class:-F3</li><li>DC Armature Voltage:-90 V</li><li>Standards Met:-CE, UL, CSA</li><li>Enclosure Abbreviation:-TENV</li><li>IP Rating:-IP55</li><li>Duty / Condition Type:-Continuous Duty</li><li>Weight:-17.00 lbs</li><li>Harmonization Code:-8501.31.4000</li></ul></p>
