M1130139.00 Leeson Metric Motor | MROSupply.com

18KW-1/4HP 1800RPM.63D.IP54.180VS1.40C.1.0SF.B14.CIM34D18FC2BDC METRIC

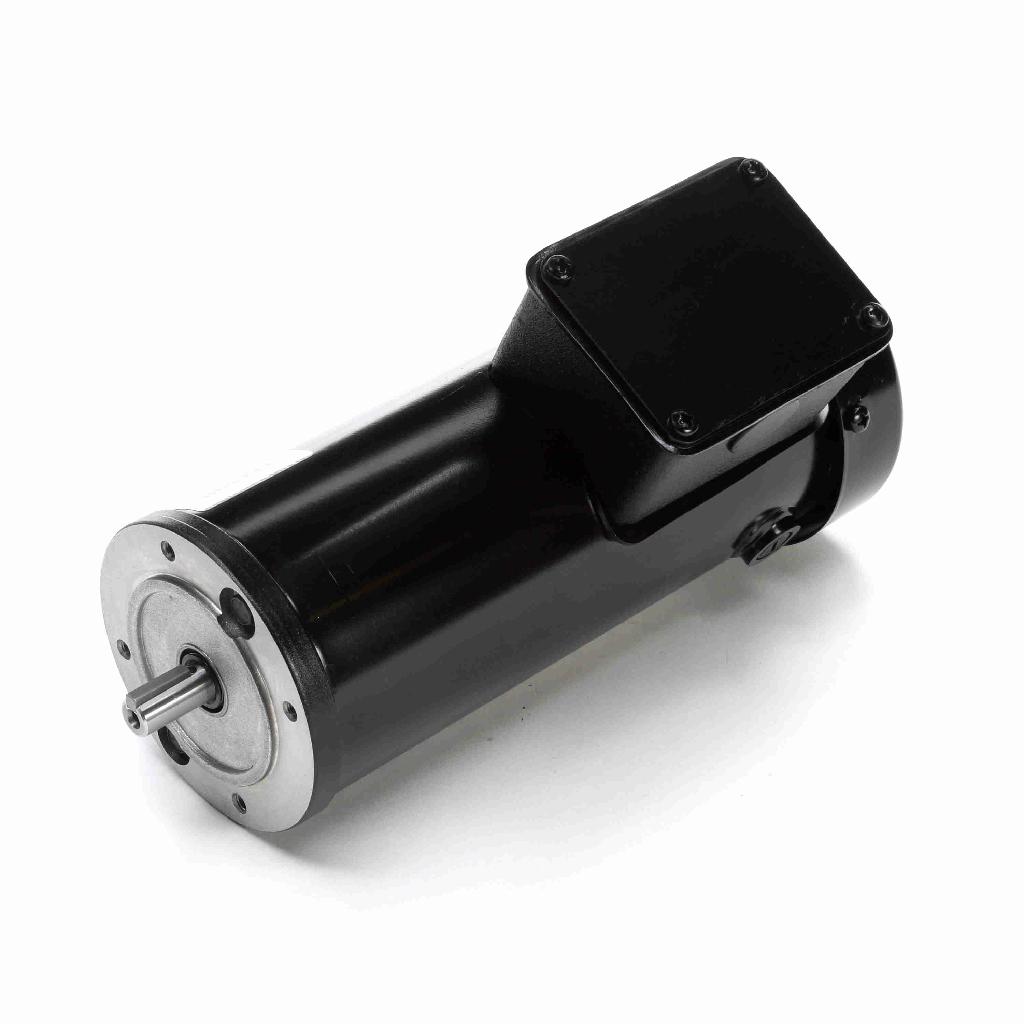

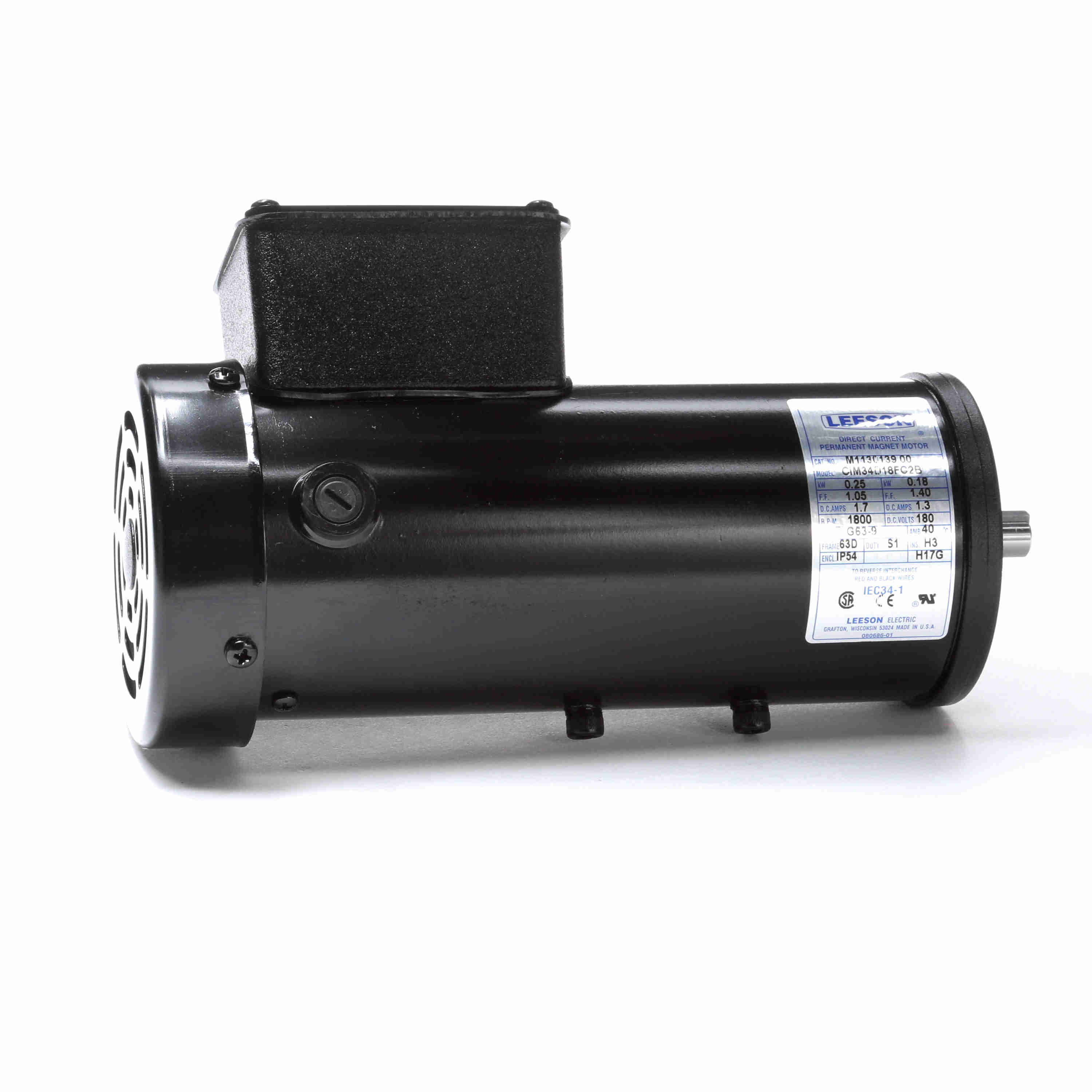

Leeson Electric Leeson Motors Metric DC Motor-.18-.25 KW, 180V, 1800RPM, IP54, B14

<p><ul><li>Cast aluminum conduit box</li><li>Terminal board provided for connections</li><li>All metric fasteners</li><li>Easy brush access for field service</li><li>Oversize brushes for extended life</li><li>High strength rolled steel frame</li><li>Die cast aluminum endshields with steel bearing inserts</li><li>Permanently lubricated sealed ball bearings</li><li>Reversible rotation; Simple 2 lead connection; Convenient wiring access</li><li>Tachometer mounting kits available for 71 and 80 frames only</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/4 hp </li><li> Full Load Efficiency:-74.40 % </li><li> DC Armature Voltage:-180 V </li><li> Base RPM:-1800 rpm </li><li> Enclosure Type:-IP54 </li><li> Duty / Condition Type:-S1 </li><li> NEMA / IEC Frame Size:-63D </li><li> Thermal Protection:-None </li><li> Field Full Load Current:-1.70 A </li><li> Shaft Diameter:-0.44 in </li><li> Shaft Rotation:-Reconn </li><li> Motor Length Less Shaft:-7.18 in </li><li> Overall Length (C-Dimension):-9.50 in </li><li> Insulation Class:-H </li><li> Mounting Type:-B14 Flange </li><li> Service Factor:-1.00 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CE, CSA, UL Recognized </li><li> Drive End Bearing Size:-6201-13 </li><li> Opposite Drive End Bearing Size:-6201-13 </li><li> Weight:-10 lbs </li></ul></p>
