M1125069.00 Leeson DC GearMotor | MROSupply.com

76:1.24RPM.280LBIN.1/8HP.30DC GEARMOTORS SUB-FHP.90V.DC.TENV

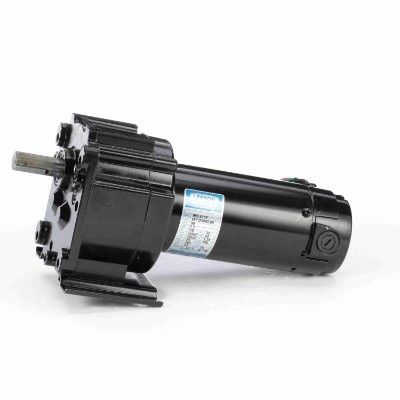

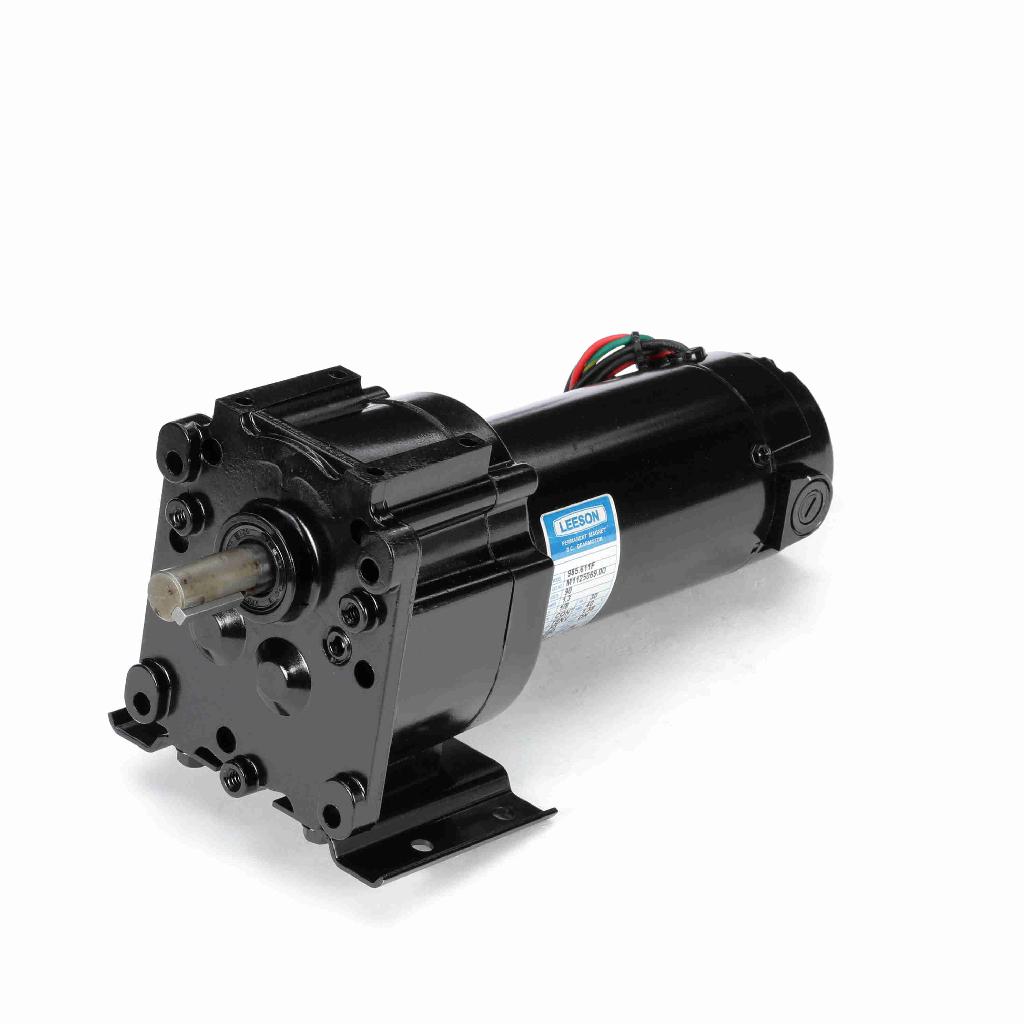

Leeson Electric Leeson M1125069.00, 1/8 HP, 24 RPM, 90VDC, TENV, P300, 76:1 Ratio, 280 In-Lbs

<p><ul><li>Precision machined in-line steel gears</li><li>First stage steel helical gear followed by spur-type gears</li><li>Lubrication is permanent semi-fluid grease, reducing possibility of leakage</li><li>Output shafts have needle bearings for high load capacities</li><li>Shafts are hardened steel</li><li>Optional conduit box available</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Parallel</li><li>kW:-0.10 kW</li><li>Input Horsepower:-0.13 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-76 :1</li><li>Output rpm:-24.0 rpm</li><li>Full Load Torque:-280 in-lbs</li><li>Full Load Efficiency:-67.20 %</li><li>Full Load Current:-1.30 A</li><li>Frame Size:-30</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-F</li><li>Thermal Protection:-None</li><li>Standards Met:-CE,UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-4.91 in</li><li>Overall Length (C-Dimension):-11.45 in</li><li>Drive End Bearing Size:-6000</li><li>Opposite Drive End Bearing Size:-6000</li><li>Shaft Diameter:-0.63 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-14 lbs</li></ul></p>
