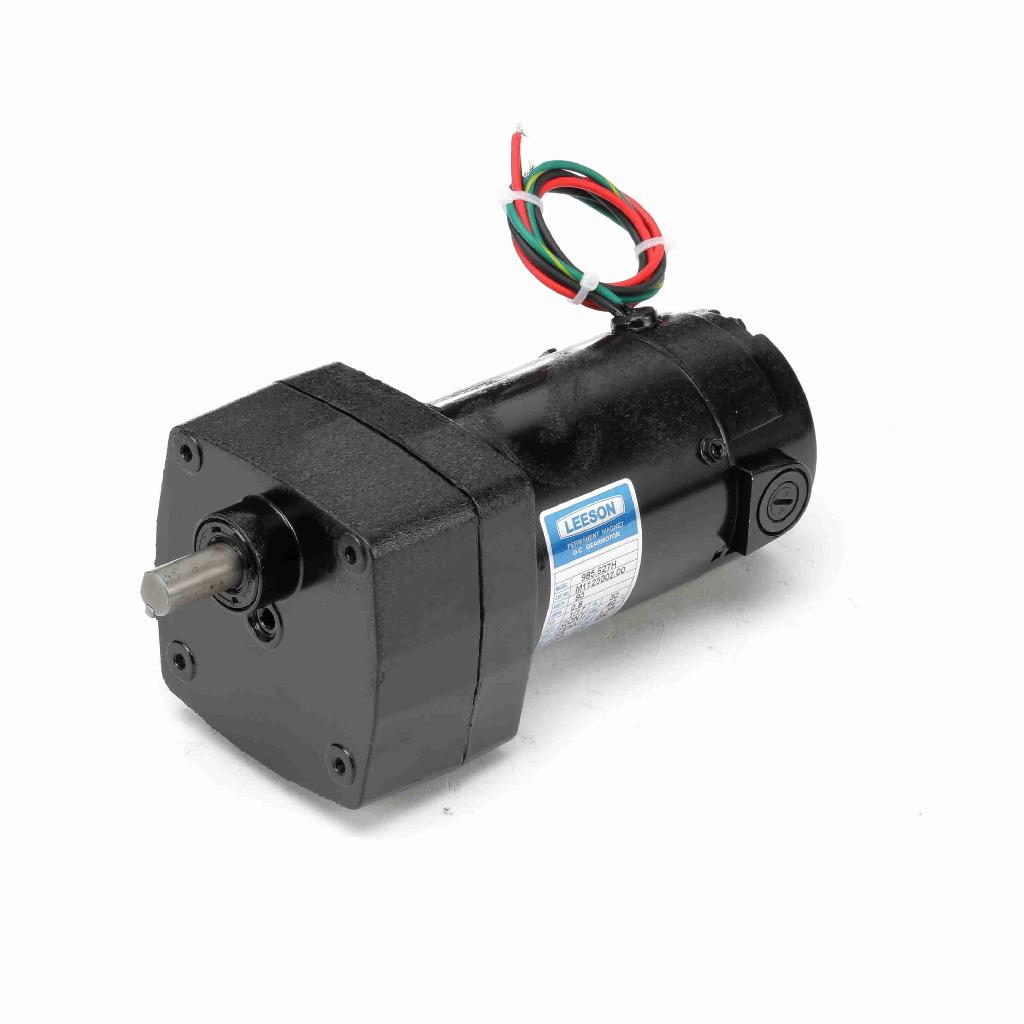

M1125002.00 Leeson DC GearMotor | MROSupply.com

60:1.30RPM.100LBIN.1/17HP.30DC GEARMOTORS.90V TENV.985.627H

Replaces Haas # 30-0005 Turret Motor (motor only) 90 Volts, 1/17 HP, 100 IN-LB Torque, 30 RPM 1/2 inch output shaft

<p><ul><li>Precision machined in-line steel gears</li><li>First stage steel helical gear followed by spur-type gears</li><li>Lubrication is permanent semi-fluid grease, reducing possibility of leakage</li><li>Output shafts have needle bearings for high load capacities</li><li>Shafts are hardened steel</li><li>Optional conduit box and PZ gearmotor mounting bracket available</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Parallel</li><li>kW:-0.04 kW</li><li>Input Horsepower:-0.06 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-60 :1</li><li>Output rpm:-30.0 rpm</li><li>Full Load Torque:-100 in-lbs</li><li>Full Load Efficiency:-55.10 %</li><li>Full Load Current:-0.80 A</li><li>Frame Size:-30</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-F</li><li>Thermal Protection:-None</li><li>Standards Met:-CE,UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-2.99 in</li><li>Overall Length (C-Dimension):-9.30 in</li><li>Drive End Bearing Size:-6000</li><li>Opposite Drive End Bearing Size:-6000</li><li>Shaft Diameter:-0.50 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-9 lbs</li></ul></p>
