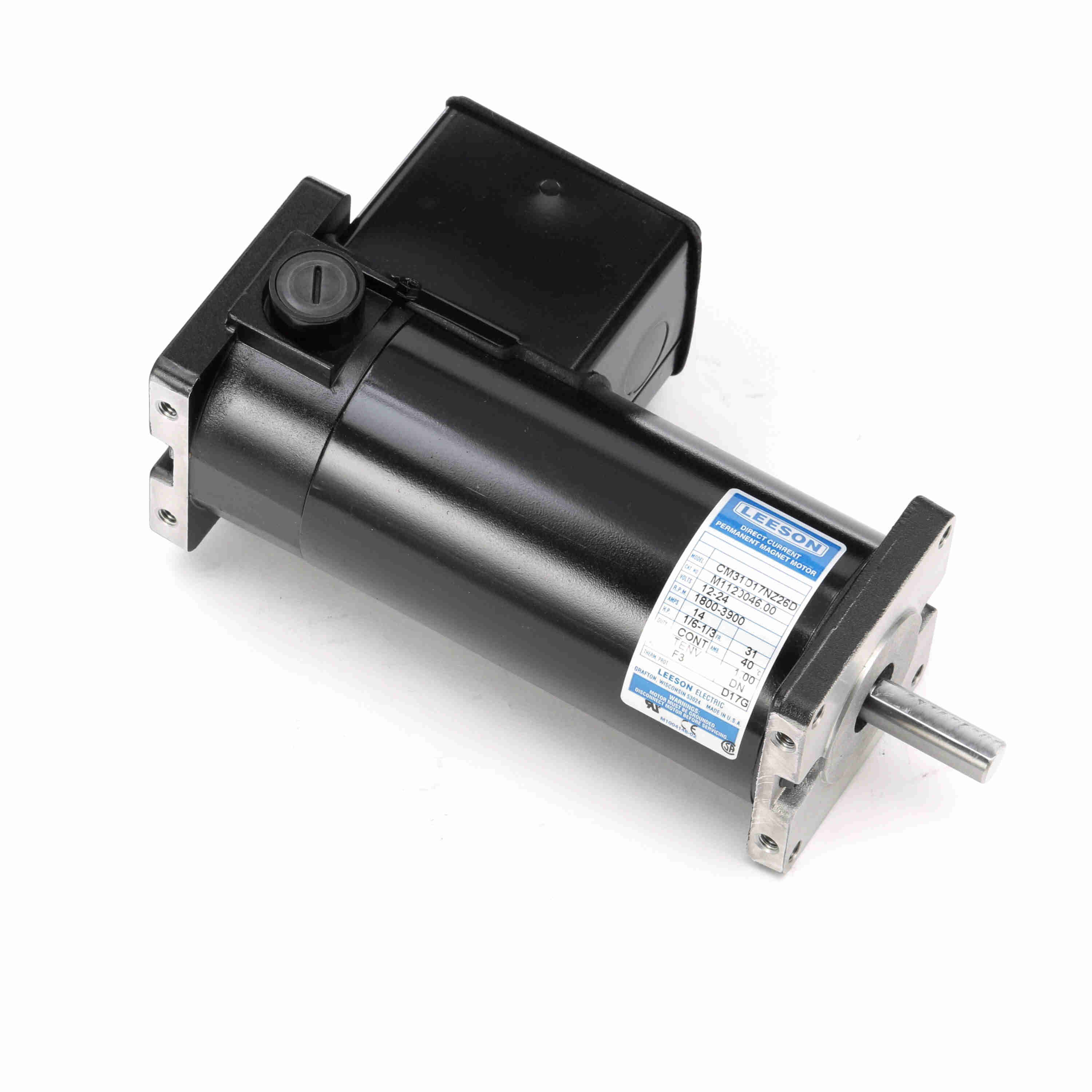

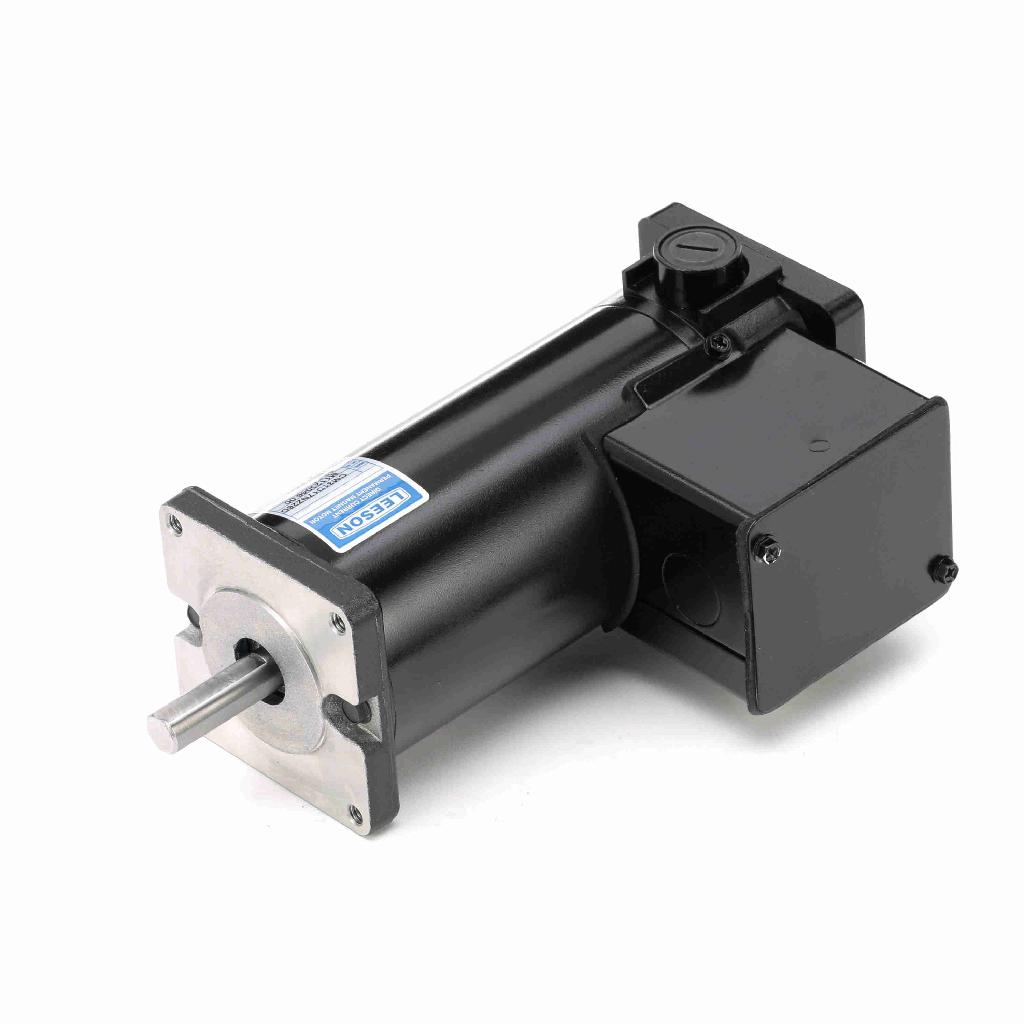

M1120046-00 - Leeson M1120046.00 16 -.33HP.1800-3900RPM.31.TENV.12-24V.CONT.40C.1.0SF.SQ. FLANGE.DC SUB-FHP LOW VOLTA...

1/6HP-1/3HP 1800RPM - 3900RPM.31.TENV.12V - 24VCONT.40C.1.0SF.SQ. FLANGE.CM31D17NZ26DDC SUB-FHP LOW VOLTAGE

LEESON M1120046.0016 - 33HP 1800-3900RPM 31 TENV12-24V CONT 40C 1 0SF SQ FLANGE DCSUB-FHP LOW VOLTAGE CM31D17NZ26C

Leeson Electric, M1120046.00, .166;.33HP, 1800;3900RPM, 12V;24V, 31 Frame, Square Flange Flange, Footless, TENV, DC Motor

<p><ul><li>Compact, space saving design</li><li>Standard conduit box simplifies connections</li><li>Ball bearing construction; Long life brushes</li><li>External access to brushes allows for easy replacement further prolonging motor life</li><li>High starting torques</li><li>Linear speed torque characteristics throughout the speed range</li><li>Capable of dynamic braking for faster stops</li><li>Reversible rotation</li><li>Simple two lead connection</li><li>Class F insulated with high temperature welded commutators</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/6 hp </li><li> Full Load Efficiency:-72.80 % </li><li> DC Armature Voltage:-12-24 V </li><li> Base RPM:-1800 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Duty / Condition Type:-Continuous Duty </li><li> NEMA / IEC Frame Size:-31 </li><li> Thermal Protection:-None </li><li> Field Full Load Current:-14.00 A </li><li> Shaft Diameter:-0.50 in </li><li> Shaft Rotation:-Reconn </li><li> Motor Length Less Shaft:-5.50 in </li><li> Overall Length (C-Dimension):-9.45 in </li><li> Insulation Class:-F </li><li> Mounting Type:-SQ Flange </li><li> Service Factor:-1.00 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CE, CSA, UL Recognized </li><li> Drive End Bearing Size:-6201-13 </li><li> Opposite Drive End Bearing Size:-6201-13 </li><li> Weight:-9 lbs </li></ul></p>
