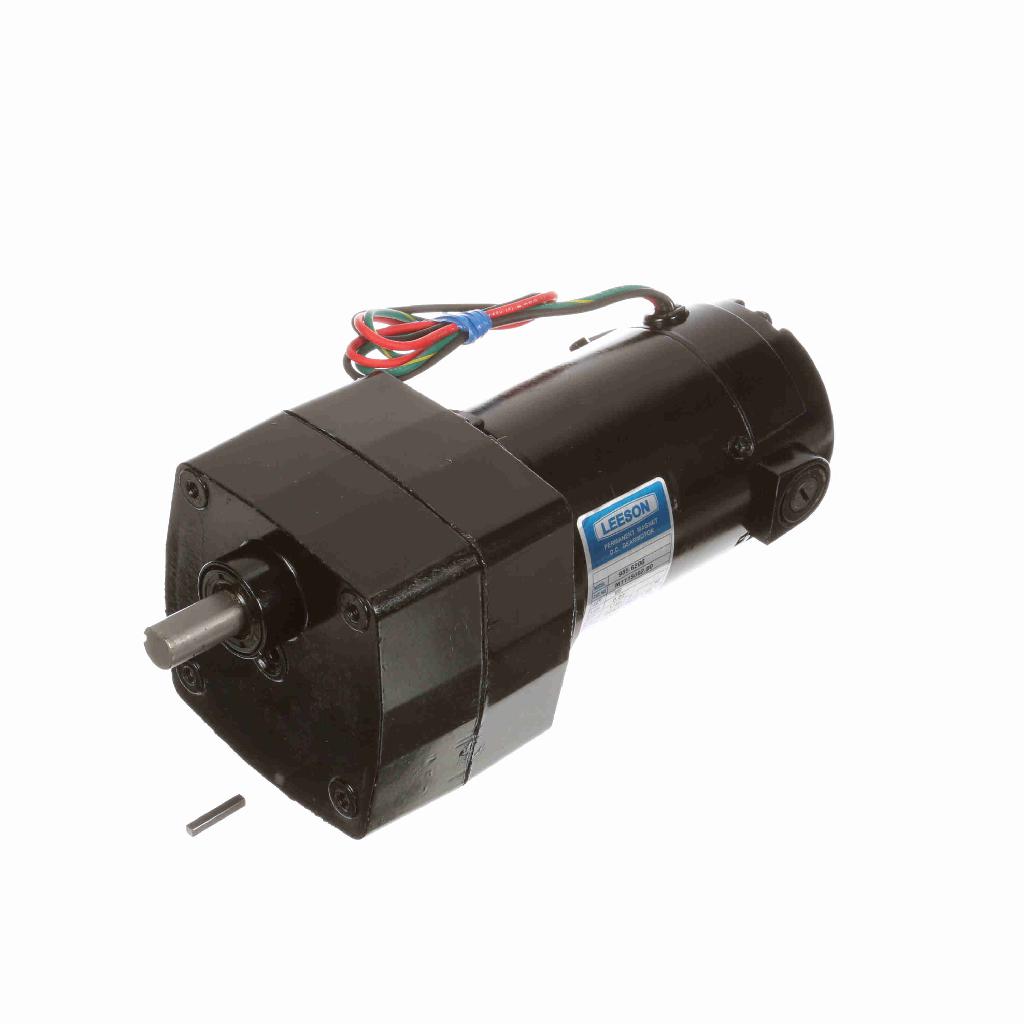

M1115002.00 Pz 450:1 4Rpm 40Lbin 1/40Hp 30 Dc Gearmotors Sub-Fhp 90V Dc Tenv 985 620G

PZ450:1.4RPM.40LBIN.1/40HP.30DC GEARMOTORS SUB-FHP.90V.DC.TENV.985.620G

<p><ul><li>Precision machined in-line steel gears</li><li>First stage steel helical gear followed by spur-type gears</li><li>Lubrication is permanent semi-fluid grease, reducing possibility of leakage</li><li>Output shafts have needle bearings for high load capacities</li><li>Shafts are hardened steel</li><li>Optional conduit box and PZ gearmotor mounting bracket available</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Parallel</li><li>kW:-0.02 kW</li><li>Input Horsepower:-0.03 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-450 :1</li><li>Output rpm:-4.0 rpm</li><li>Full Load Torque:-40 in-lbs</li><li>Full Load Efficiency:-11.50 %</li><li>Full Load Current:-0.22 A</li><li>Frame Size:-30</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Special</li><li>Insulation Class:-F</li><li>Thermal Protection:-None</li><li>Standards Met:-CE,UL Recognized,CSA</li><li>Service Factor:-1.00</li><li>Duty / Condition Type:-Continuous Duty</li><li>Motor Length Less Shaft:-2.99 in</li><li>Overall Length (C-Dimension):-9.30 in</li><li>Drive End Bearing Size:-6000</li><li>Opposite Drive End Bearing Size:-6000</li><li>Shaft Diameter:-0.50 in</li><li>Shaft Rotation:-Reconn</li><li>Ambient Temperature Range:-40 C</li><li>Weight:-7 lbs</li></ul></p>
