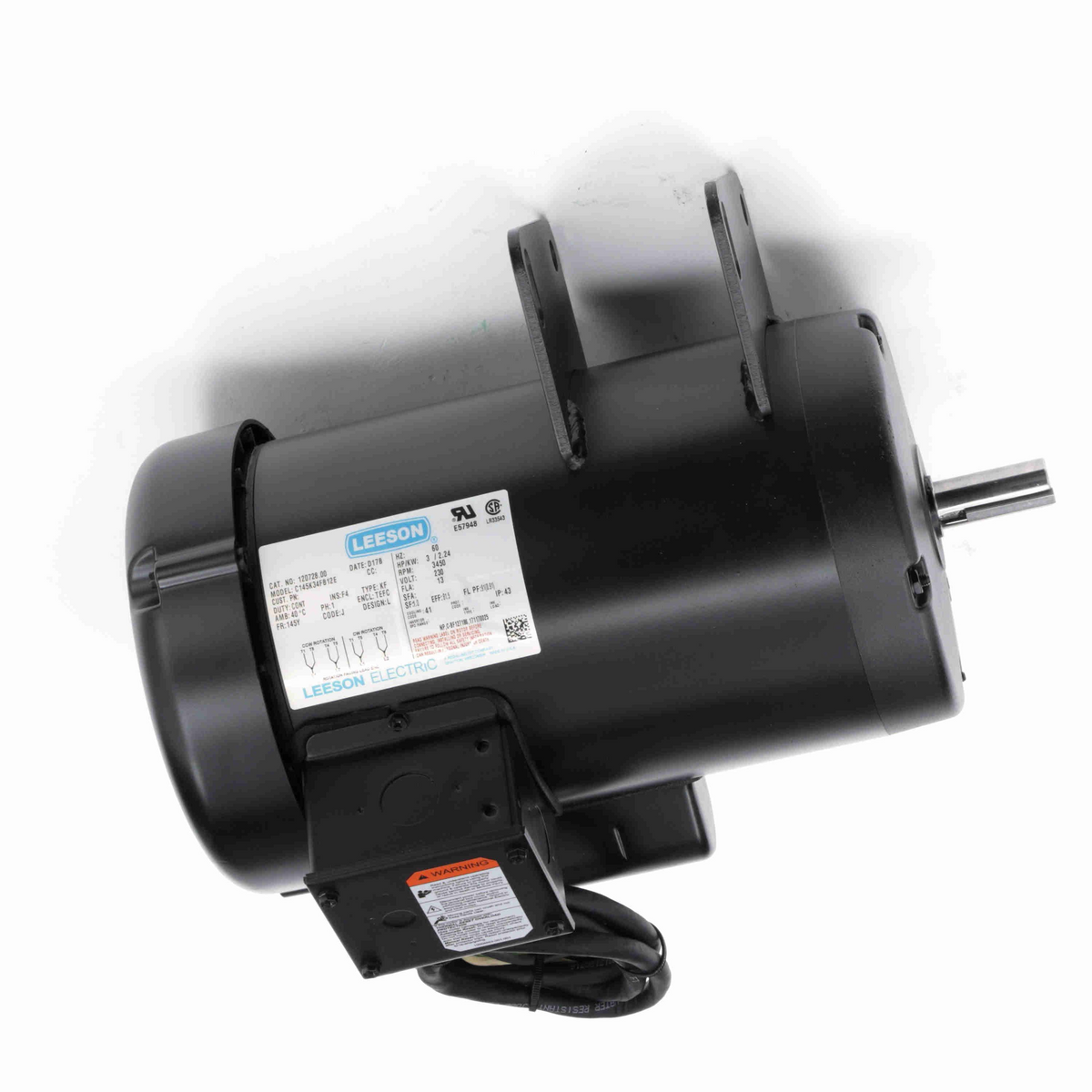

Leeson 120728 AC Motor, 3 HP, 3600 rpm, 230V, 145Y Frame, TEFC, Delta UNISAW

The 3 HP Leeson Contractor Power Saw Electric Motor is a powerful single-phase motor specially designed for use with woodworking equipment such as table saws with Delta UNISAW mounting. UL listed. CSA certified. Amps: 13, Capacitor Run: Yes, Capacitor Start: Yes, Hertz: 60, Horsepower: 3, Motor Phase: Single-phase, Reversible: Yes, Rotation: Counter Clockwise, RPM: 3,600, Shank Diameter: 3/4 in, Volts: 230 Motor pivots on rod for belt tensioning Delta UNISAW mounting sytem Totally enclosed, fan-cooled (TEFC) housing has an external fan to provide cooling by blowing air over the outside frameFully gasketed to provide dust entryDurable rolled steel constructionDouble shielded ball bearingsContinuous duty operationExtra high breakdown torques for maximum cutting powerCapacitor Start/Capacitor Run construction for reduced amperage and higher efficiencyIncludes 54in. power cordService factor 1.00 Replaces Delta UNISAW motor model #83-621

Leeson 120728.00 3HP 3450RPM 145 TEFC /230V 1PH 60HZ CONT NONE 40C 1SF RIGID WOODWORKING C145K34FB12D

<p><ul><li>Motor pivots on rod for belt tensioning</li><li>Extra high breakdown torques for maximum cutting power</li><li>3/4” Dia. Shaft, 1-3/4” long with keyway</li><li>Includes 54 inch cord</li><li>56 frame models have a 1-7/8” long shaft by 5/8” Dia.</li><li>Shaft extensions, each end, include keyway and flat, 90º apart</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Category:-Woodworking Motor </li><li> Motor Phase:-1 ph </li><li> Motor Horsepower:-3.00 hp, 3 hp </li><li> Synchronous RPM:-3600 rpm </li><li> Motor Supply Voltage:-230 V </li><li> Frame Size:-145Y </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-C-Face Flange </li><li> Base RPM:-3450 rpm </li><li> Thermal Protection:-None </li><li> Ambient Temperature Range:-40 °C </li><li> Assembly/Box Mounting:-F1 Only </li><li> Electrical Type:-Capacitor Start Capacitor Run </li><li> KVA Code:-J </li><li> kW:-2.24 kW </li><li> Full Load Current:-13.00 A </li><li> Full Load Efficiency:-81.50 % </li><li> Motor Orientation:-Horizontal </li><li> Motor Poles:-2-pole </li><li> Starting Method:-Across the Line </li><li> Volts @ Frequency:-230 V @ 60 Hz </li><li> Shaft Type:-SGL SPL EXT </li><li> Shaft Diameter:-0.75 in </li><li> Shaft Rotation:-Fixed Counterclockwise </li><li> Motor Length Less Shaft:-8.50 in </li><li> Overall Length (C-Dimension):-12.86 in </li><li> Bearing Type:-Ball Bearing </li><li> Drive End Bearing Size:-6205 </li><li> Opposite Drive End Bearing Size:-6203 </li><li> NEMA Design Class:-L </li><li> Service Factor:-1.00 </li><li> Frame Material:-Rolled Steel </li><li> Insulation Class:-F </li><li> IP Rating:-43 </li><li> Standards Met:-CSA, UL Recognized </li><li> Harmonization Code:-8501.40.6040 </li><li> Weight:-55 lbs </li></ul></p>
