Leeson NEMA Type 56C-Face DC Motors. Low-cost DC motors available in numerous configurations to meet your needs Power...

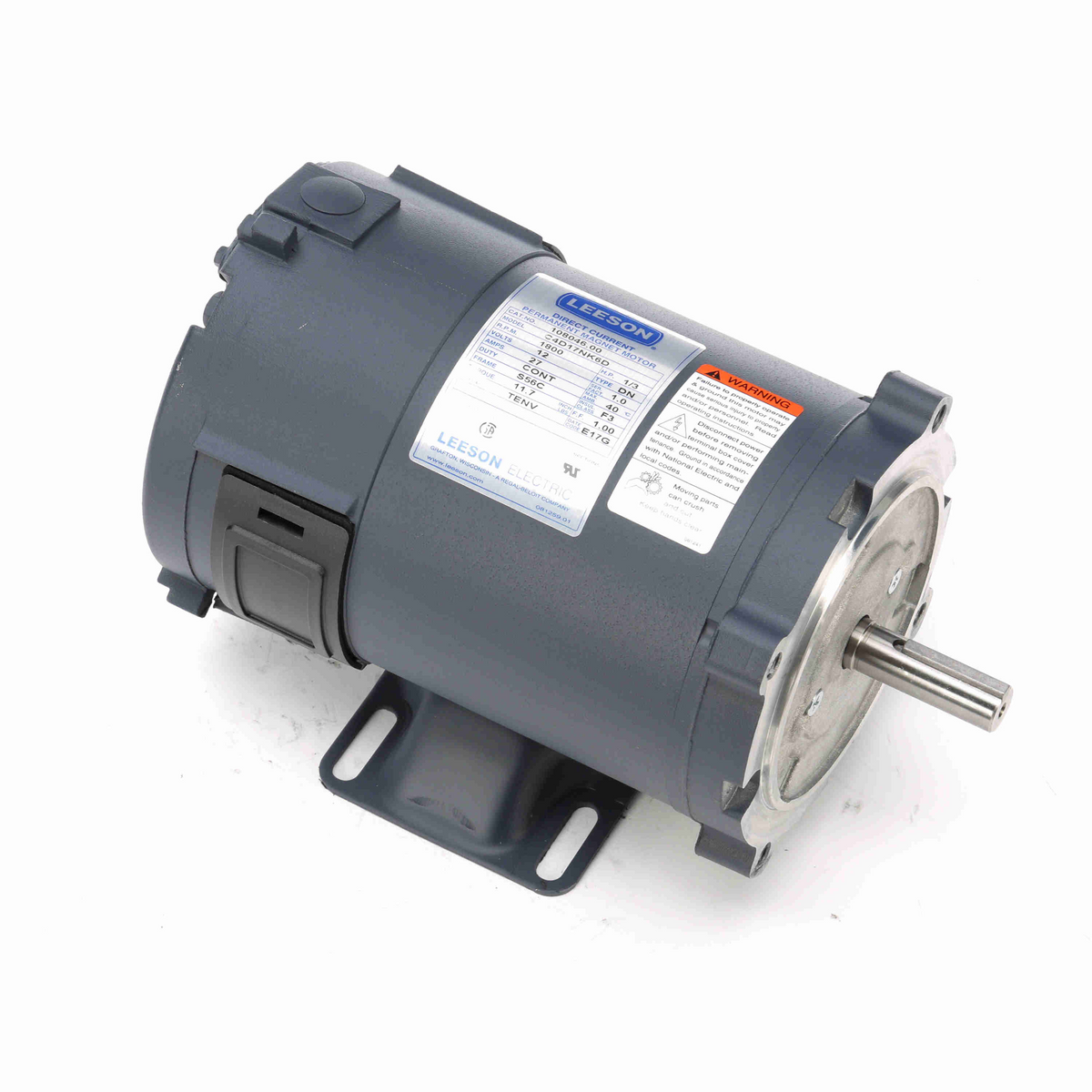

Leeson 108046.00 1/3HP 1800RPM US56C TENV 12V CONT 40C 1 0SF RIGID C DC NEMA LOW VOLTAGE C4D17NK6C

<p><ul><li>Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life</li><li>Heavy-duty, stamped steel, bolt on base (Removable)</li><li>NEMA C face mounting flange at no additional cost; High strength rolled steel frame</li><li>Rugged die cast endshields with steel bearing inserts</li><li>Permanently lubricated sealed ball bearings</li><li>Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits shown below</li><li>High starting torques for heavy load applications</li><li>Linear speed torque characteristics throughout the speed range</li><li>Capable of dynamic braking for faster stops</li><li>Reversible rotation; Simple two lead connection</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet - Low Voltage </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/3 hp </li><li> Full Load Efficiency:-70.10 % </li><li> DC Armature Voltage:-12 V </li><li> Base RPM:-1800 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Duty / Condition Type:-Continuous Duty </li><li> NEMA / IEC Frame Size:-S56C </li><li> Thermal Protection:-None </li><li> Field Full Load Current:-27.00 A </li><li> Shaft Diameter:-0.63 in </li><li> Shaft Rotation:-Reconn </li><li> Motor Length Less Shaft:-4.47 in </li><li> Overall Length (C-Dimension):-10.77 in </li><li> Insulation Class:-F </li><li> Mounting Type:-Rigid C-Base </li><li> Service Factor:-1.00 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CSA, UL Recognized </li><li> Drive End Bearing Size:-6203 </li><li> Opposite Drive End Bearing Size:-6203 </li><li> Weight:-27 lbs </li></ul></p>
