Leeson . 118016.00

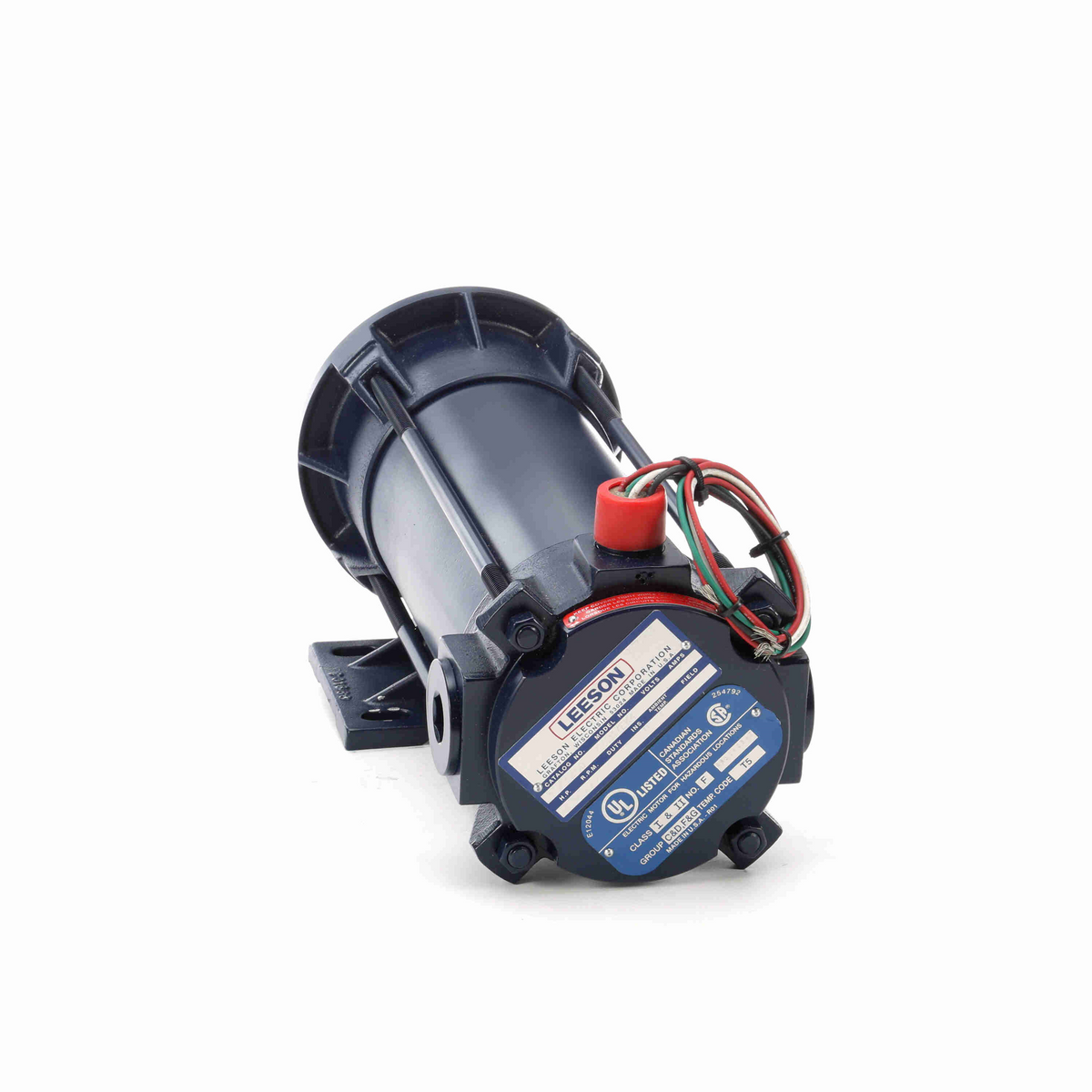

Leeson 118018.00 75HP 1750RPM S56C TENV 90V CONT 40C 1 0SF RIGID C DC EXPLOSION-PROOF C6D17EK4A

<p><ul><li>Rugged mechanical construction</li><li>Meets all safety requirements</li><li>UL and CSA listed</li><li>Leads exit thru 3/4”-14NPT Pipe nipple at top of frame opposite shaft end</li><li>Conduit box optional - see below</li><li>Pilot duty thermostats -standard (connect to SCR control)</li><li>Thermostats rated for continuous duty with full wave SCR(thyristor) controls.</li><li>Double shielded, pre lubricated ball bearings - standard</li><li>Easy brush access for field service</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Explosion Proof </li><li> Motor Type:-Brushed </li><li> Horsepower:-3/4 hp </li><li> Full Load Efficiency:-82.00 % </li><li> DC Armature Voltage:-90 V </li><li> Base RPM:-1750 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Duty / Condition Type:-Continuous Duty </li><li> NEMA / IEC Frame Size:-S56C </li><li> Thermal Protection:-Automatic </li><li> Field Full Load Current:-7.10 A </li><li> Shaft Diameter:-0.63 in </li><li> Shaft Rotation:-Reconn </li><li> Overall Length (C-Dimension):-16.41 in </li><li> Insulation Class:-H </li><li> Mounting Type:-Rigid C-Base </li><li> Service Factor:-1.00 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CSA, UL Recognized </li><li> Weight:-43 lbs </li></ul></p>
