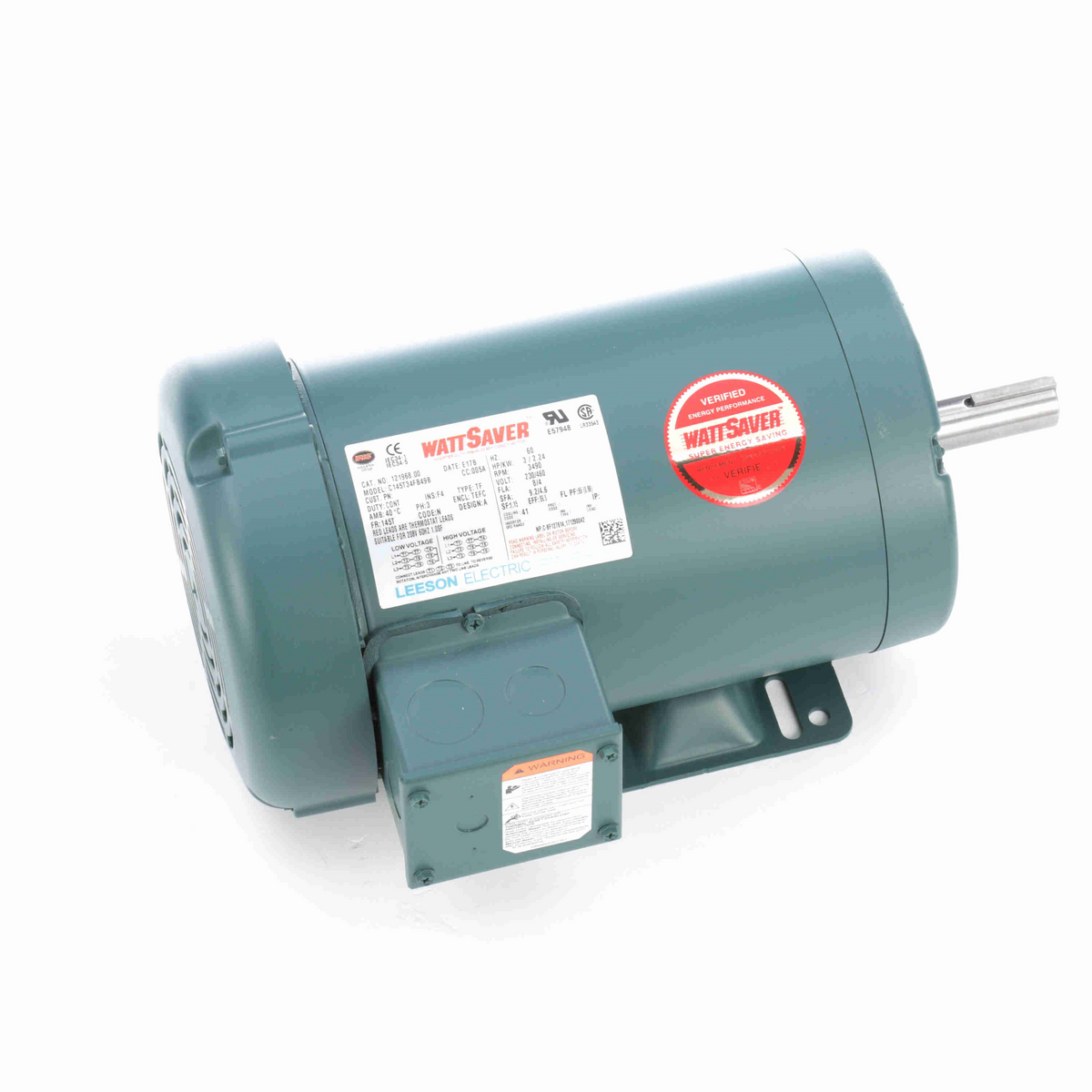

121968-Leeson-AC

<p><ul><li>Standard, EPAct and Premium efficient ratings<li>Inverter-rated; Continuous duty<li>Class B insulation systems – 42, 48 and 56 frames<li>Class F insulation system – 140 frame and higher<li>Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications<li>Dynamically balanced rotors<li>1-year warranty on Standard efficient motors<li>2-year warranty on EPAct efficient motors<li>3-year warranty on Premium efficient motors<li>Torques exceed NEMA performance standards; UL recognized and CSA certified</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Phase:-3 ph <li> Motor Horsepower:-3.00 hp, 3 hp <li> Synchronous RPM:-3600 rpm <li> Motor Supply Voltage:-230/460 V <li> Frame Size:-145T <li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) <li> Frequency Rating:-60 Hz <li> Mounting Type:-Rigid Base <li> Base RPM:-3490 rpm <li> Assembly/Box Mounting:-F1 Only <li> Duty / Condition Type:-Continuous Duty <li> Thermal Protection:-None <li> Electrical Type:-Squirrel Cage Induction Run <li> Full Load Efficiency:-86.50 % <li> KVA Code:-N <li> kW:-2.24 kW <li> Motor Orientation:-Horizontal <li> Motor Poles:-2-pole <li> Starting Method:-Across the Line <li> Volts @ Frequency:-230/460 V @ 60 Hz <li> Shaft Diameter:-0.88 in <li> Shaft Rotation:-Reversible <li> Shaft Type:-T <li> Motor Length Less Shaft:-8.00 in <li> Overall Length (C-Dimension):-13.93 in <li> Ambient Temperature Range:-40 °C <li> Bearing Type:-Ball Bearing <li> NEMA Design Class:-A <li> Service Factor:-1.15 <li> Frame Material:-Rolled Steel <li> Insulation Class:-F <li> IP Rating:-43 <li> Standards Met:-CE, CSA, UL Recognized <li> Drive End Bearing Size:-6205 <li> Opposite Drive End Bearing Size:-6203 <li> Weight:-48 lbs <li> Harmonization Code:-8501.52.4000 <li> Manufacturer UPC Number:-691720332627 </li></ul></p>
