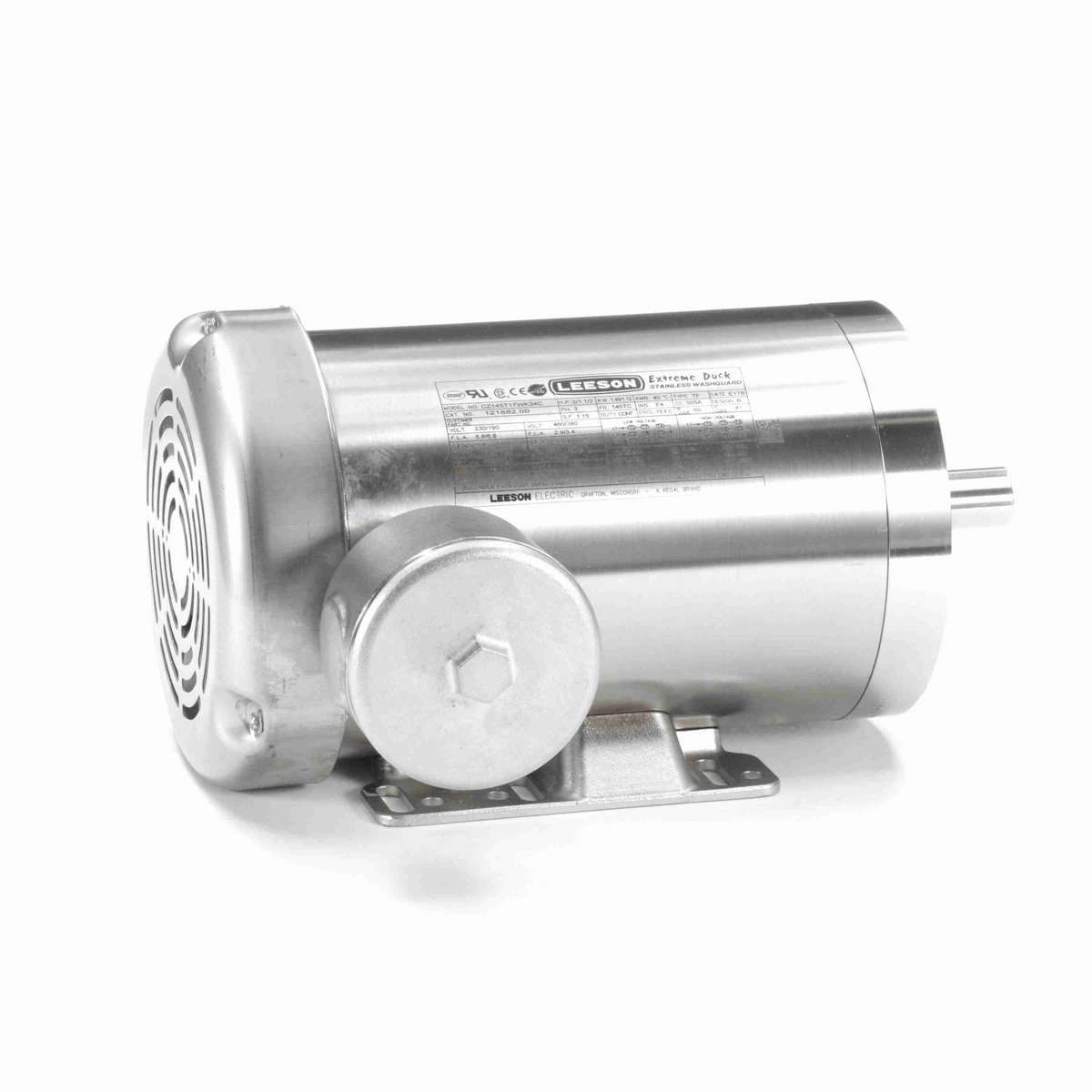

LEESON ELECTRIC . 121882

Leeson 121882.00 2HP 1745/1435RPM.145.TEFC.208-230/ 460V.3PH.60/50HZ.CONT.NOT.40C.1.25/ 1.25SF.RIGID C.WASHGUARD-ALL STAINLESS.CZ145T17WK34A

<p><b>Specifications: </b><ul><li>Item:-Washdown Motor</li><li>Motor Application:-Washdown</li><li>Motor Type:-3-Phase</li><li>Enclosure:-Totally Enclosed Fan-Cooled</li><li>HP:-2</li><li>Nameplate RPM:-1745</li><li>Frame:-145TC</li><li>NEMA Design:-B</li><li>Rotation:-CW/CCW</li><li>Voltage:-208-230/460</li><li>Full Load Amps:-6.0-5.8/2.9</li><li>Phase:-3</li><li>Hz:-60/50</li><li>Mounting:-Face/Base</li><li>Bearings:-Ball</li><li>Frame Material:-Stainless Steel</li><li>Thermal Protection:-None</li><li>Service Factor:-1.15</li><li>Max. Ambient Temp.:-40 Degrees C</li><li>Shaft Dia.:-7/8"</li><li>Shaft Length:-2-1/8"</li><li>Body Dia.:-6-5/8"</li><li>Length Less Shaft:-11-1/8"</li><li>Overall Length:-13-1/4"</li><li>Insulation Class:-F</li><li>RPM Range:-1701-1800</li><li>Duty:-Continuous</li><li>Shaft Material:-303 Stainless Steel</li><li>Conduit Box:-Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring</li><li>Drain Plugs:-None</li><li>Endshields:-300 Series Stainless Steel</li><li>Nominal Efficiency:-86.5%</li><li>Application:-Food Processing, Chemical Processing, and Beverage Industries</li><li>Includes:-Frame, Base, Conduit Box Cover Endshields and Bearing Carrier Cover</li><li>Standards:-UL Recognized (E57948), CSA Certified (LR33543), CSA Energy Efficiency Verification Program (EEV 78720-1), BISSC (769)</li><li>UNSPSC:-26101612</li></ul></p>
