LEESON ELECTRIC . 110058

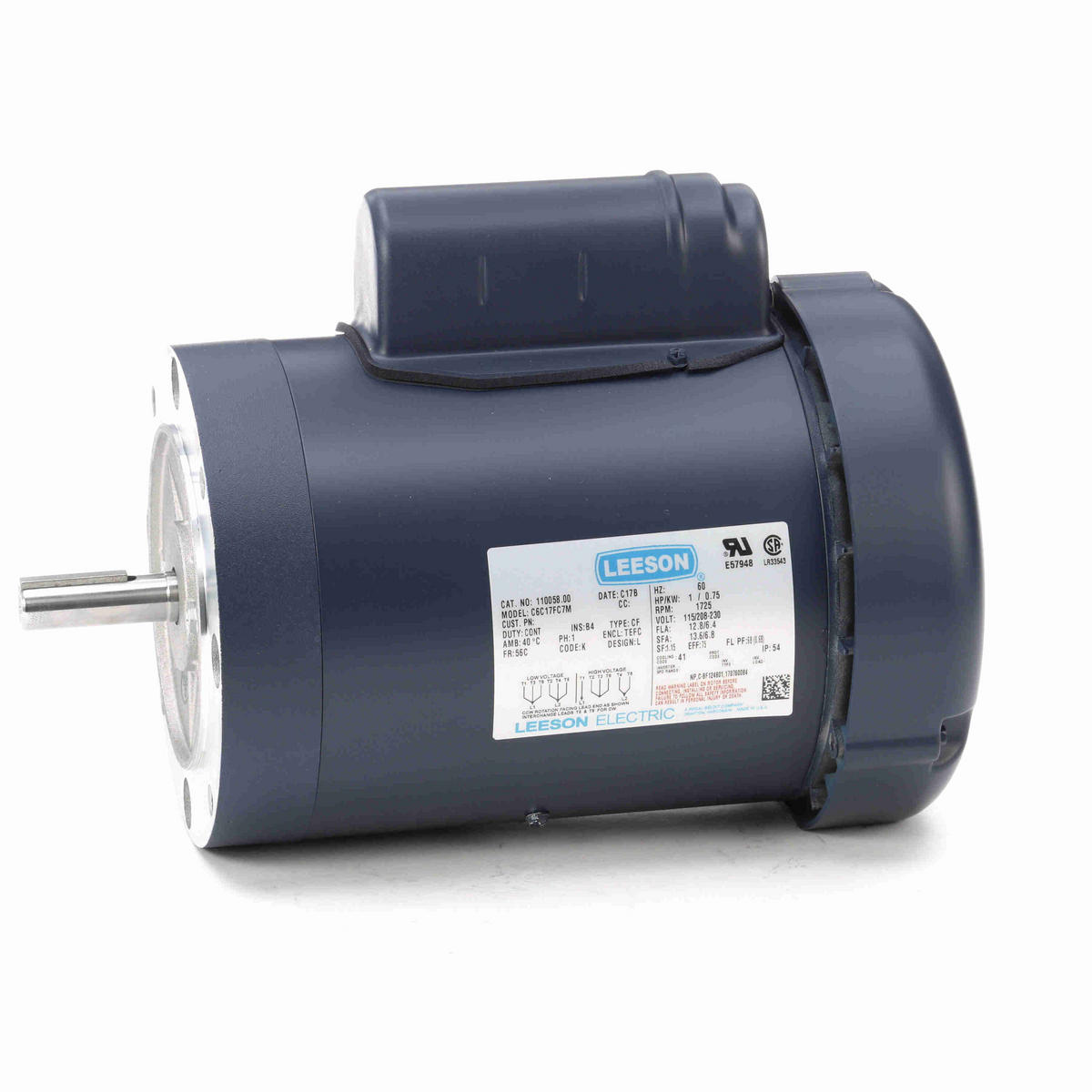

Leeson Electric Leeson Motors-1HP, 115/208-230V, 1725RPM, TEFC, C Face Mount, 1.15 SF, 75 Eff.

Leeson 110058.00 1HP 1725RPM 56 TEFC /V 1PH 60HZ CONT NONE 40C 1 15SF C FACE GENERAL PURPOSE C6C17FC7K

<p><ul><li>Durable rolled steel construction</li><li>NEMA Design B performance</li><li>Meets or exceed NEMA service factors</li><li>Double shielded ball bearings</li><li>Continuous duty</li><li>Thermally protected ratings</li><li>1-year warranty on general purpose motors</li><li>3-year warranty on Premium efficient motors</li><li>UL recognized component listing and CSA certified</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Phase:-1 ph </li><li> Motor Horsepower:-1.00 hp, 1 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-115/208-230 V </li><li> Frame Size:-56C </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Mounting Type:-C-Face Flange </li><li> Base RPM:-1725 rpm </li><li> Assembly/Box Mounting:-F1 Only </li><li> Duty / Condition Type:-Continuous Duty </li><li> Thermal Protection:-None </li><li> Electrical Type:-Capacitor Start Induction Run </li><li> Full Load Efficiency:-75.00 % </li><li> KVA Code:-K </li><li> kW:-0.75 kW </li><li> Motor Orientation:-Horizontal </li><li> Motor Poles:-4-pole </li><li> Starting Method:-Across the Line </li><li> Volts @ Frequency:-115/208-230 V @ 60 Hz </li><li> Shaft Diameter:-0.63 in </li><li> Shaft Rotation:-Selective Counterclockwise </li><li> Shaft Type:-Standard 56 </li><li> Motor Length Less Shaft:-6.50 in </li><li> Overall Length (C-Dimension):-11.98 in </li><li> Ambient Temperature Range:-40 °C </li><li> Bearing Type:-Ball Bearing </li><li> NEMA Design Class:-L </li><li> Service Factor:-1.15 </li><li> Frame Material:-Rolled Steel </li><li> Insulation Class:-B </li><li> IP Rating:-43 </li><li> Standards Met:-CSA, UL Recognized </li><li> Drive End Bearing Size:-6203 </li><li> Opposite Drive End Bearing Size:-6203 </li><li> Weight:-36 lbs </li><li> Harmonization Code:-8501.40.6040 </li><li> Manufacturer UPC Number:-691720007723 </li></ul></p>
