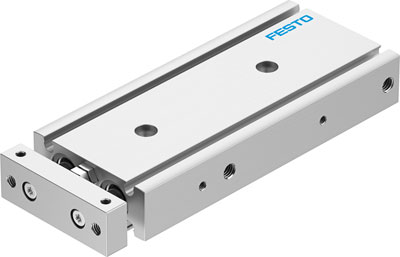

DGTZ-GF-10-60-P-A – Coast Pneumatics

Festo . 8100559

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitmm
Extra Product NameDGTZ-GF-10-60-P-A – Coast Pneumatics
Weight234
WeightUnitg
Weight_AttribProduct weight
diameter, height, length, width10.0
height_Attrib, width_AttribPiston diameter
length_AttribAdjustable end position range/length
moq, multiple, tierMinQty11
MPN, SKU8100559
qtyInStock-2
qtySourceDefault field
tierPrice1150.25
Stroke60 mm
Adjustable end position range/length, Piston diameter10 mm
Type codeDGTZ
Drive unit operating modeYoke
CushioningElastic cushioning rings/pads at both ends
Mounting positionAny
GuideSliding guide
DesignGuide
Position sensingFor proximity sensor
Symbol00991249
Operating pressure1.5 bar … 8 bar
Mode of operationDouble-acting
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)1 – Low corrosion stress
Ambient temperature-10 ?C … 80 ?C
Impact energy in the end positions0.08 J
Max payload as a function of the stroke at defined distance xs2.7 N
Theoretical force at 6 bar, retracting60 N
Theoretical force at 6 bar, advancing94 N
Moving mass, Product weight234 g
Pneumatic connectionM5
Note on materialsRoHS-compliant
Cover materialWrought aluminum alloy
Seals materialHNBR
Housing materialWrought aluminum alloy, anodized
Piston rod materialHigh-alloy stainless steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics81005591-211 @ $150.25
sun-source.com8100559111 @ $0.00
