Where can I buy 8036723?

8036723 is available from Coast Pneumatics, sun-source.com. See pricing comparison above.

What is the price of 8036723?

Pricing is approximately $111.75 per unit.

Yes, 8036723 is currently in stock at multiple distributors with immediate availability.

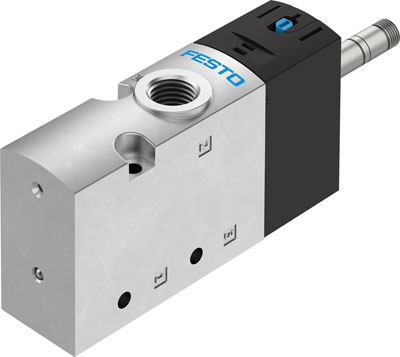

VUVS-LT30-M32U-MD-N38-F8 – Coast Pneumatics

Festo . 8036723

Attributes

Brand name, Manufacturer name, Manufacturer	Festo
DimensionUnit	mm
Extra Product Name	VUVS-LT30-M32U-MD-N38-F8 – Coast Pneumatics
Weight	305
WeightUnit	g
Weight_Attrib	Product weight
moq, multiple, tierMinQty1	1
MPN, SKU	8036723
qtyInStock	-2
qtySource	Default field
tierPrice1	111.75
width	7.9
width_Attrib	Nominal width
Valve function	3/2, open, monostable
Material of screws	Steel, galvanized
Lap	Underlap
Actuation type	Electrical
Valve size	31 mm
Standard nominal flow rate	1600 l/min
Pneumatic working port, Pneumatic connection 1, Pneumatic connection 2, Pneumatic connection 3	3/8 NPT
Operating voltage	Via solenoid coil, to be ordered separately
Operating pressure	2.5 bar … 10 bar
Design	Plate seat
Reset method	Mechanical spring
Certification	c UL us – Recognized (OL)
Nominal width	7.9 mm
Type code	VUVS
Exhaust air function	With flow control option
Sealing principle	Soft
Mounting position	Any
Manual override	DetentingNon-detenting
Type of control	Pilot-controlled
Pilot air supply port	Internal
Flow direction	Non-reversible
Symbol	00991140
b-value	0.2
C value	7 l/sbar
Switching time off	36 ms
On switching time	14 ms
Max positive test pulse with 0 signal	2000 ?s
Max negative test pulse on 1 signal	3600 ?s
Coil characteristics	See solenoid coil, to be ordered separately
Operating medium, Pilot medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Vibration resistance	Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
Temperature of medium, Ambient temperature	-10 ?C … 60 ?C
Product weight	305 g
Type of mounting	On terminal stripWith through-holeOptionally:
Venting hole connection	Not ducted
Pilot exhaust air port 82	10-32 UNF-2B
Note on materials	RoHS-compliant
Seals material	HNBRNBRTPE-U(PU)
Housing material	Die cast aluminum, painted
Piston slide material	Wrought aluminum alloy

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Coast Pneumatics	8036723	1	-2	1	1 @ $111.75
sun-source.com	8036723	1		1	1 @ $0.00
