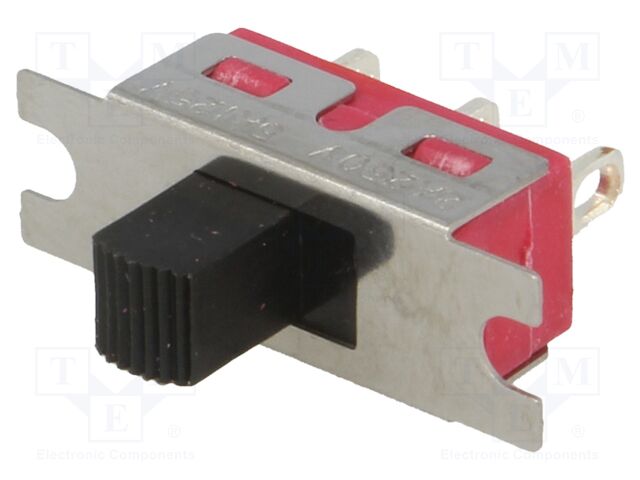

IC SWITCHES IC1105S1M1QE2 | Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; screw type; -30?85?C

IC SWITCHES . IC1105S1M1QE2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerIC SWITCHES
CategoryL1Switches and Indicators
CategoryL2Slide Switches
DimensionUnitmm
Extra Product NameIC SWITCHES IC1105S1M1QE2 | Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; screw type; -30?85?C
atoms, moq, multiple1
height5.08
height_AttribKnob height
jsonUrlDatac26408f1423accbe76a66b27e1146bc2.
jsonUrlData2d7386725ff280ac76144
keywordsIC SWITCHES, IC1105S1M1QE2
MPN, SKUIC1105S1M1QE2
qtyInStock0
snippetIC SWITCHES IC1105S1M1QE2 | Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; screw type; -30?85?
Type of switchslide
Number of positions, Stable positions number2
Contacts configurationSPDT
AC contacts rating @R2A / 250V AC
Switching methodON-ON
Mountingscrew type
Leadsfor soldering
Operating temperature-30...85?C
Body dimensions19.56x6.6x6.35mm
Min insulation resistance1G?
Max contact resistance:10m?
Contact platingsilver plated
Terminal pitch4.7mm
Contact materialcopper alloy
Knob height5.08mm
Mechanical durability30000 cycles
Body materialstainless steel
Actuator materialpolyamide
Flammability ratingUL94V-0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEIC1105S1M1QE211
