ADTRAN . 1700340F1

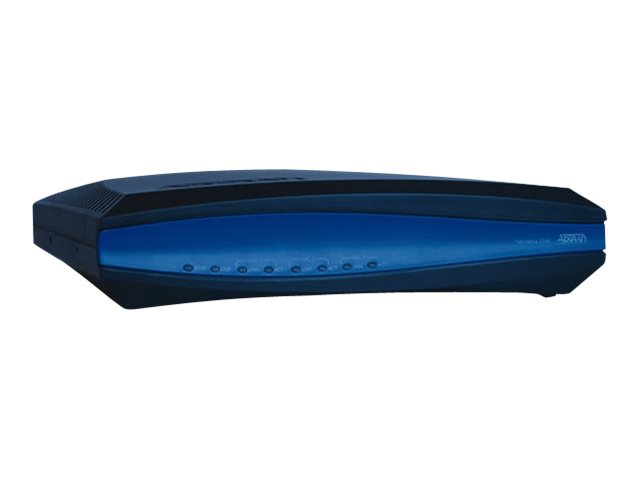

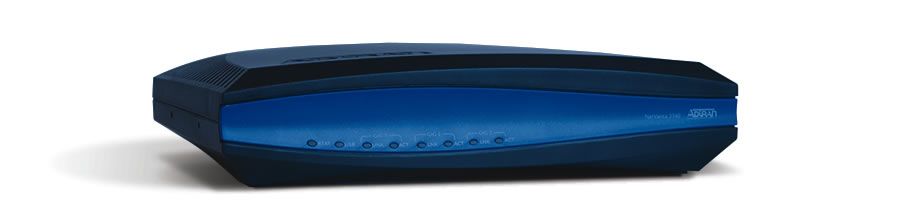

NetVanta 3140 High-Performance Fixed Port Desktop Secure Access Ethernet Router. Provides routed, autosensing Gigabit Ethernet interfaces that can be either LAN or WAN facing. Ideal for carrier-bundled service offerings and enterprise-class Internet access for secure, high-speed corporate connectivity. Optional Enterprise Session Border Control (eSBC) functionality. Dynamic bandwidth allocation. Operating system allows for support of static and default routes, demand and policy-based routing, and network convergence using protocols such as BGP, OSPF, RIP, and PIM Sparse Mode. Total Ports: 4. Ethernet-redundant WAN and LAN Ports: 3. USB Ports: 1. LEDs: Power Status, Port Status, USB. Security: Statefull Inspection Firewall, DOS Protection, Access Control Lists, Packet Filtering, Multi-level Access Control, TACACS+, RADIUS AAA, SSH CLI and SSL GUI, Port Authentication (802.1x). 802.1Q VLAN Trunking. QoS: Weighted Fair Queueing (WFQ), DiffServ, NetFlow9 Traffic Monitoring. SIP ALG allows SIP-based device traffic to pass through the firewall.
