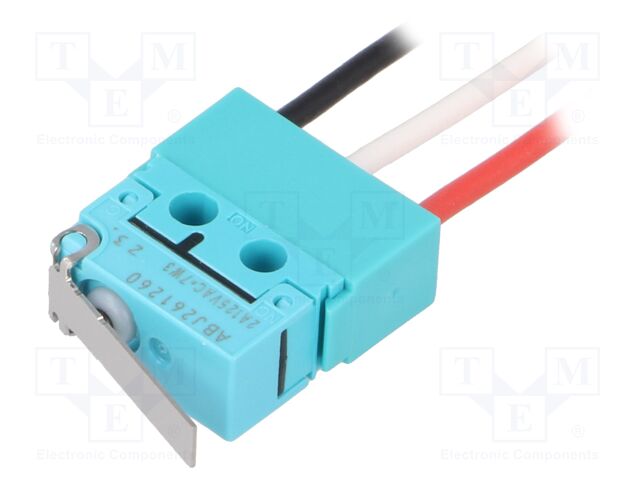

PANASONIC ABJ261260 | Microswitch SNAP ACTION; with lever; SPDT; 2A/125VAC; 2A/30VDC

PANASONIC . ABJ261260

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPANASONIC
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
Extra Product NamePANASONIC ABJ261260 | Microswitch SNAP ACTION; with lever; SPDT; 2A/125VAC; 2A/30VDC
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData3dc4fd6ce709ea307f1897fd425c65d3.
jsonUrlData20287a0127d977ad9b1d4
keywordsPANASONIC, ABJ261260, ABJ261260J, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
MPNABJ261260
qtyInStock0
SKUABJ261260J
snippetPANASONIC ABJ261260 | Microswitch SNAP ACTION; with lever; SPDT; 2A/125VAC; 2A/30VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice14.6707
tierPrice24.5421
tierPrice34.1779
tierPrice43.9422
tierPrice53.6958
Type of switchmicroswitch SNAP ACTION
Switches featureswith lever
Contacts configurationSPDT
AC contacts rating @R2A / 125V AC
DC contacts rating @R2A / 30V DC
Max contact resistance:100m?
Switching methodON-(ON)
Number of positions2
IP ratingIP67
Leadscables
Body dimensions12.8x6x5mm
Mechanical durability1000000 cycles
Operating temperature-40...85?C
Operating Force1.96N
Electrical life30000 cycles
Min insulation resistance100M?
Contact materialAgNi
Manufacturer seriesABJ

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEABJ261260J111 @ $4.67, 5 @ $4.54, 20 @ $4.18, 100 @ $3.94, 500 @ $3.70
RS Delivers698-957011
