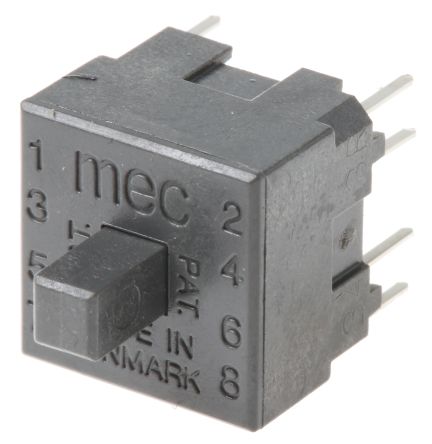

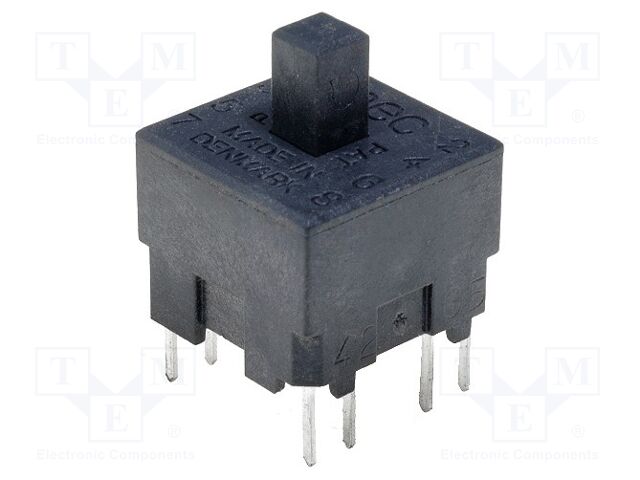

MEC 15501 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; THT

MEC . 15501

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMEC
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches TACT
DimensionUnitmm
Extra Product NameMEC 15501 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; THT
atoms, moq, multiple, Stable positions number1
height15.7
height_AttribButton height
jsonUrlDatace2f85a59436fdbf23b96567ac4176de.5
jsonUrlData245220262f535b1789d3a
keywordsMEC, 15501, MEC15501, Switches and Indicators, Microswitches, Microswitches TACT
MPN15501
qtyInStock0
SKUMEC15501
snippetMEC 15501 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; TH
Type of switchmicroswitch TACT
Contacts configurationDPST-NO + DPST-NC
Number of positions2
DC contacts rating @R0.025A / 120V DC
MountingTHT
Illuminationnone
Operating Force2.5N
Body dimensions12.6x12.6mm
Button height15.7mm
Switching methodON-(ON)
Terminal pitch2.54x10.16mm
Operating temperature-40...75?C
Button shapesquare
Key button colourblack
Key stroke1.8mm
Leadsfor PCB,
Max contact resistance:100m?
Min insulation resistance10M?
Mechanical durability1500000 cycles
Soldering temperature260?C / 10 s
Related itemsMEC16300-B,

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEMEC1550111
RS Delivers495-440611
