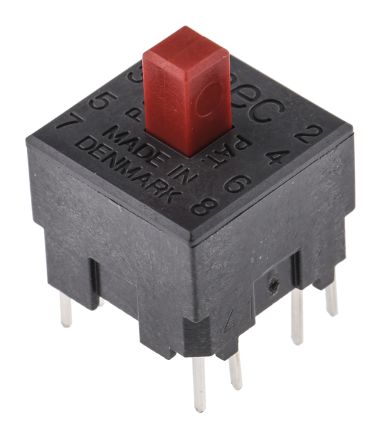

MEC 15551 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; THT

MEC . 15551

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMEC
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches TACT
DimensionUnitmm
Extra Product NameMEC 15551 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; THT
atoms, moq, multiple1
height15.7
height_AttribButton height
jsonUrlData091889f2169018967479fd23df8d11b6.5
jsonUrlData25b8066c2da1a9056bf5f
keywordsMEC, 15551, MEC15551, Switches and Indicators, Microswitches, Microswitches TACT
MPN15551
qtyInStock0
SKUMEC15551
snippetMEC 15551 | Microswitch TACT; DPST-NO + DPST-NC; Pos: 2; 0.025A/120VDC; TH
Type of switchmicroswitch TACT
Contacts configurationDPST-NO + DPST-NC
Number of positions, Stable positions number2
DC contacts rating @R0.025A / 120V DC
MountingTHT
Illuminationnone
Operating Force2.5N
Body dimensions12.6x12.6mm
Button height15.7mm
Switching methodON-ON
Terminal pitch2.54x10.16mm
Operating temperature-40...75?C
Button shapesquare
Key button colourred
Key stroke1.8mm
Leadsfor PCB,
Max contact resistance:100m?
Min insulation resistance10M?
Mechanical durability500000 cycles
Soldering temperature260?C / 10 s
Related itemsMEC16300-B,

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEMEC1555111
RS Delivers495-441211
