Raychem

Raychem . EC-TS

Gallery

Attributes

Brand name, Manufacturer name, Extra Product Name, BrandRaychem
ManufacturerRaychem RAYCHEM
DimensionUnitinch
GraingerSku45RK49
UPC715629007278
UnitOfMeasureEA
Voltage100 to 277VAC
Weight65 0.000625 4.05
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height30
jsonUrlData924526ffbdad25e5923b
length17.5
moq, multiple, tierMinQty1, Number of Switches, Number of Poles, Number of Heating Stages, Case, NumberOfItems, PackageQuantity1
MPN, Part Number, PartNumberEC-TS
qtyInStock55
qtyInStockOverride-2
SKUG3886517
tierPrice1514.51
urlhttps://www.zoro.com/raychem-line-volt-electronic-tstat-open-on-rise-wall-spst-100-to-277vac-ec-ts/i/G3886517/
width17
Product GroupBISS
Switch ActionOpen on Rise
Sensor TypeThermistor
Differential, Temperature Differential4 Degrees F
Display TypeLED
Number of Relay Inputs, Number of Relay Outputs0
Thermostat Control Range, Control Range, Temperature Control Range30 Degrees to 110 Degrees F
Mounting Locationwall
Switch Type, Thermostat Switch TypeSPST
Color, Enclosure Color, Housing ColorGray
Width4 47/64 in 2.00 75
Height4 13/16 in 2.00 56 75
Sensing Bulb Length, Depth, Overall Depth2 in
Thermostat Heating/CoolingHeating
Contact Rating Resistive @ 240V, Full Load Amps @ 240VAC, Contact Rating Resistive @ 120V, Contact Rating Resistive @ 277V, Full Load Amps @ 120VAC, Resistive Amps @ 208VAC, Full Load Amps @ 240V AC, Full Load Amps @ 120V AC, Amperage, Resistive Amps @ 208V AC30 A
Thermostat ItemLine Voltage Thermostat
Thermostat Voltage, Contact Rating100 to 277V AC
Sensing Bulb Dia1/4 in
Thermostat Programmable, Temperature ReadoutNo
Remote Sensing Bulb Included, Remote Sensing Capability, Includes Positive OffYes
Includes25 ft Temperature Sensor
Mounting TypeSurface
StandardsUL
Temp Sensitivity, Temperature Sensitivity+/-3 Degrees F
ItemLine Volt Electronic Tstat
Enclosure TypePlastic NEMA 4X
For Use WithAny hardwired heating cable system
Compatible System TypeFloor Heating and Snow Melting Applications, Flow Maintenance, Freezer Frost Heave, Pipe Freeze Protection
Lead Length25 ft
Minimum Operating Temperature-40 Degrees F
Overall Width4 3/4 in
Operating Humidity Range0 to 90 %
Stages1H
Fan SettingsNo Fan Setting
System SettingsHeat-Off
Overall Height4 13/16 in
Electrical Connection TypeScrew Rising Cage Clamp
Operating Temperature Range-40 Degrees to 140 Degrees F
Minimum Control Temperature30 Degrees F
Frequency50 Hz, 60 Hz
Mounting DirectionHoritonzal
Differential TypeFixed
Lead Wire Gauge20 ga
Switch Type/ActionSPST, Open on Rise
Temperature ScaleFahrenheit/Celsius
Maximum Operating Humidity90 %
Enclosure NEMA RatingNEMA 4X
Mounting Hole Diameter5/32 in
Maximum Operating Temperature212 Degrees F
Housing MaterialPolycarbonate
Lead MaterialPVC
Minimum Operating Humidity0 %
Maximum Control Temperature110 Degrees F
Country of Origin (subject to change)United States
ASIN, AsinB07B7N9XYZ
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161
Feature<b>Price For:</b> Each
Label, Man, Publisher, StudioRAYCHEM
Length2.00
ProductGroupBISS BISS Basic
ProductTypeNameELECTRONIC_COMPONENT
SkuRAYCHEM EC-TS

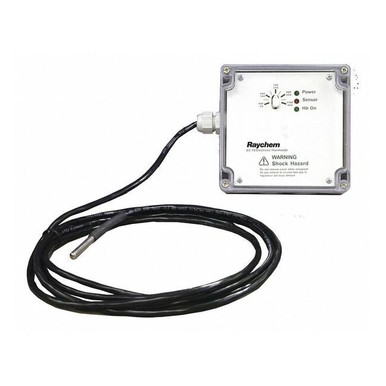

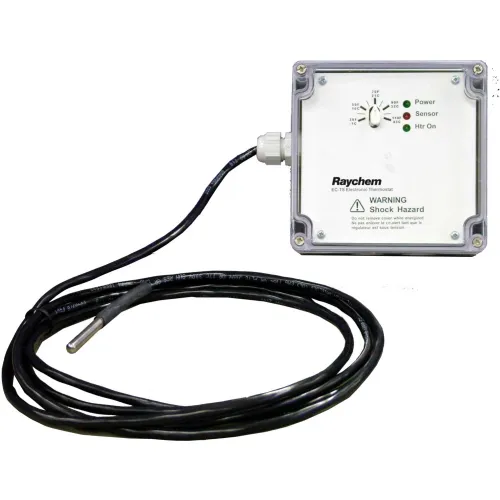

TitleLine Volt Electronic Tstat, 100 to 277VAC RAYCHEM Line Volt Electronic Tstat for Heating, 100 to 277VAC
URLhttp://ecx.images-amazon.com/images/I/31SjbSbqaYL._SL75_.jpg https://m.media-amazon.com/images/I/312TVimFvJL._SL75_.jpg
Unitsinches pixels pounds

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG388651715511 @ $514.51
Grainger45RK4911011 @ $431.00
Global IndustrialWBB22119291-211 @ $559.00
simsupply.comZO-G388651712211 @ $542.07
Voomi SupplyEC-TS111 @ $537.31
