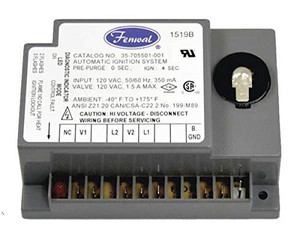

Fenwal Ignition Controls . 35-705501-001

'Control Board, 120V, Fits Brand FENWAL IGNITION CONTROLS, Includes Ignition Control'

<p><b>Note: Image is not an exact representation of item:</b>The 35-70 is a 120 VAC direct spark ignition controlfor controlling a gas valve and igniting LP or naturalgas fired equipment and gas burner applications thatprovide a 120 VAC operating signal.The microprocessor circuit design provides precise,repeatable timing sequences for ignition times andpurge times (pre- and inter-) as well as multiple triesfor ignition, one hour automatic reset and flame sensingduring pre-purge. The on-board diagnostics with LEDoutput provide assistance with trouble-shooting toensure safe and efficient burner operation.<p><b>Features:</b><ul><li>1 Try<li>3 Enclosure Configurations (Case and Cover - dust and foreign object protection, Open Board with Stand-Off's - saves space and cost, Potted - protection for washdown and extreme vibration)<li>2 Wiring Options (1/4" quick connects and multi-pin connector)<li>2 Trial for Ignition Options (1 and 3 try)<li>4 Trial for Ignition Times (4, 7,10, 15 seconds, and customized timings available)<li>2 Flame Sense Options (single spark and sense and remote sense)<li>2 Reset Options “ thermostat/power off and automatic(1 hour reset)<li>Diagnostic LED “ 3 error codes for accurate troubleshooting<li>Flame Current Test Pins “ instant access to circuitfor troubleshooting<li>Polarity Insensitive “ reduces chance of miswiring</li></ul><p><b>Specifications: </b><ul><li>Product Type: Ignition Control</li><li>Ignition Type: Direct Spark Ignition</li><li>Flame Sense: 1 mA minimum</li><li>Temperature Range (F): -40F to 175F</li><li>Voltage: 120v</li><li>Gas Type: Natural LP or Manufactured</li></ul></p>
