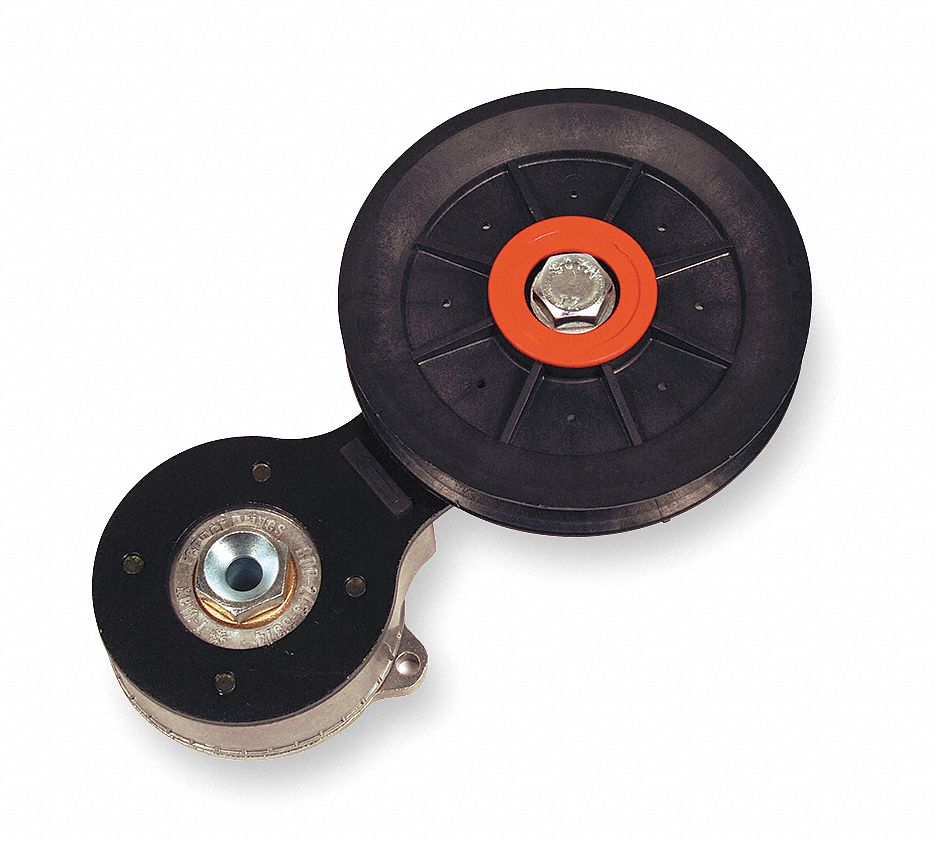

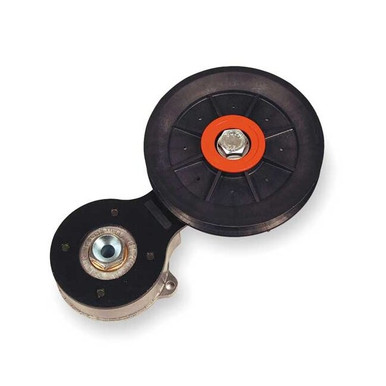

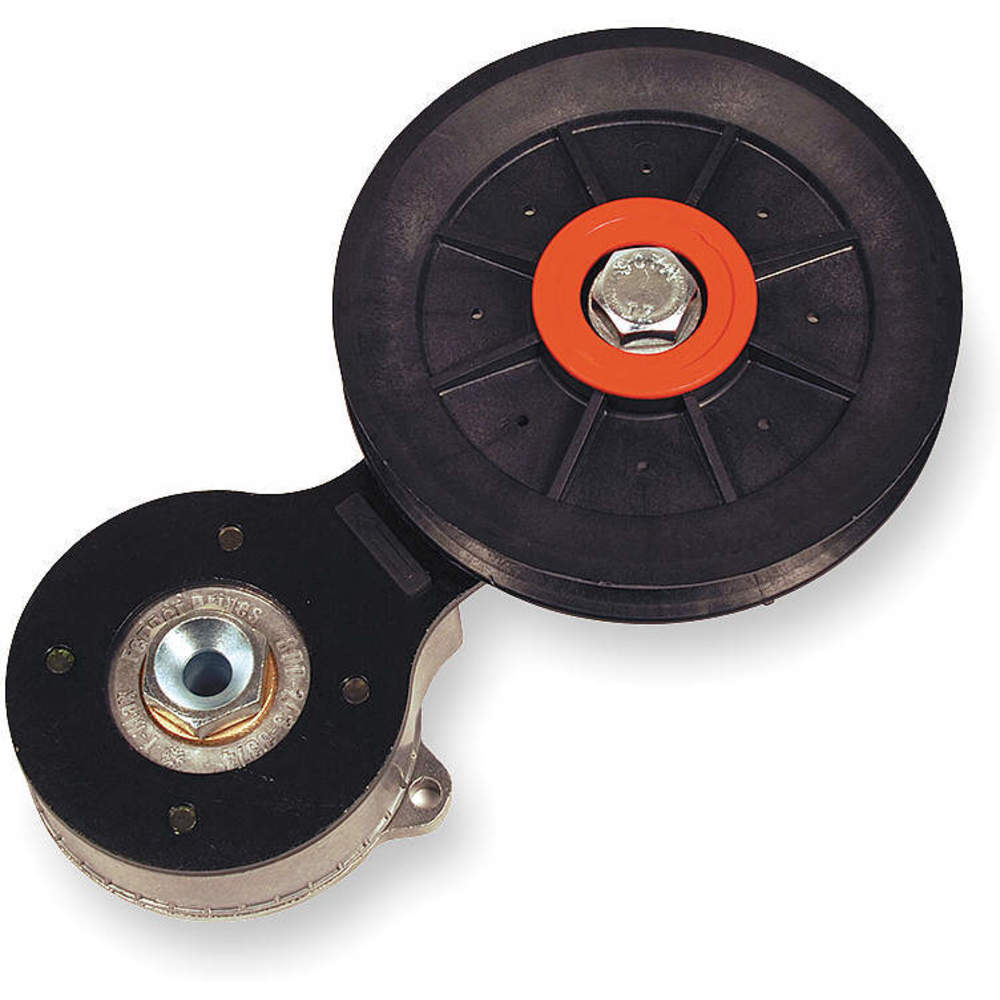

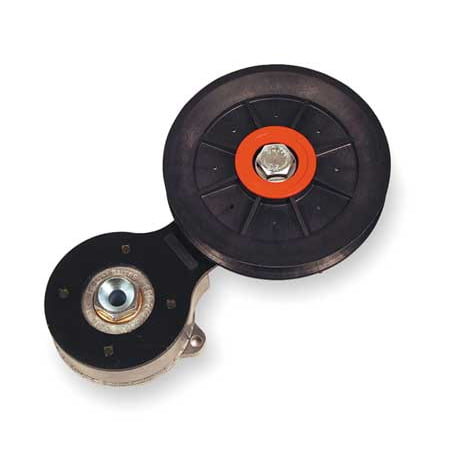

Self-adjusting tensioner, Arm Rotation 70 Degrees , For Chain Number Not Applicable, For V-Belt Size B, Pulley Outside Diameter 5 in, Maximum Tension Force 42 lbf, Arm Length to Hole Center 4.5 in, Arm Material Aluminum, Base Diameter 3.34 in, Features Automatically Take Up the Slack and Avoid the Risk of Over-Tensioning Drive Components to Enhance Overall Drive Operating Efficiency, Housing Material Aluminum, Includes RT3001 Tensioner, VA5001 Pulley, Minimum Tension Force 0 lbf
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G2355105 | 1 | 38 | 1 | 1 @ $212.99 |
 Grainger | 2ZRT9 | 1 | 44 | 1 | 1 @ $162.75 |
 Walmart | 751975224 | 1 | 1 | 1 @ $126.56 | |
| AC4GQD | 1 | 1 | 1 @ $276.64 | ||
 AmazonTP | B007IB0MCA | 1 | 1 | 1 @ $153.78 | |
 bscsource.com | FS0566 | 1 | 1 | 1 @ $240.99 | |
| WWG2ZRT9 | 1 | 1 | 1 @ $198.33 | ||
| sustainablesupply.com | C1675463 | 1 | -2 | 1 | 1 @ $214.35 |
| Guardian | 61878724 | 1 | 1 | ||
 simsupply.com | ZO-G2355105 | 1 | 22 | 1 | 1 @ $239.14 |
 National Supply Network | 61878724 | 1 | -2 | 1 | 1 @ $283.04 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Self-Adjusting Tensioner, B V-Belt Size
Brand: Fenner Drives
' Self-adjusting tensioner, B V-Belt Size Range, Mounting Hole 0.40 In In, Temp Range 32-225 F, Force Range 0-42 Lbs '
Details
- Price For: Each Item: Self-adjusting tensioner Mounting Hole (In.): 0.40" Temp. Range (F): 32-225 Tensioning Arm: Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive Insert: Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.
- Function: Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing ANSI Chain Size: - V-Belt Size Range: B Force Range (Lbs.): 0-42 Application: V-Belt Drives Dimension A (In.): 2.12 Dimension B (In.): 0.26 Dimension C (In.): 1.19 Dimension D (In.): 3.34 Dimension E (In.): 8.69 Dimension G (In.): 0.4 Dimension T (In.): 1.37 30 Degree Dim. S (In.): - Hard 10 Degree Force (Lb.): -
- 20 Degree Dim. S (In.): - Dimension N (In.): - Dimension L (In.): - Agency Compliance: - Normal 30 Deg. Force (Lb.): - Mounting Hole (Metric): - Normal 20 Deg. Force (Lb.): - Hard 20 Degree Force (Lb.): - Normal 10 Deg. Force (Lb.): - Dimension K (In.): - Dimension J2 (In.): - Includes: - Idler Outside Dia.: 5.04" Dimension J1(In.): - Idler Bolt (In.): - Hard 30 Degree Force (Lb.): -
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | MECHANICAL_COMPONENTS |
| Model | FS0566 |
| Part number | FS0566 |
| Items per pack | 1 |
| Label | FENNER DRIVES |
| Manufacturer | FENNER DRIVES |
Catalog
| Feature | Price For: Each Item: Self-adjusting tensioner Mounting Hole (In.): 0.40" Temp. Range (F): 32-225 Tensioning Arm: Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive Insert: Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use. |
|---|---|
| Category | Industrial & Scientific |
| MPN | FS0566 |
| Product group | BISS |
| Product type | TOOLS |
| Manufacturer | FENNER DRIVES |
