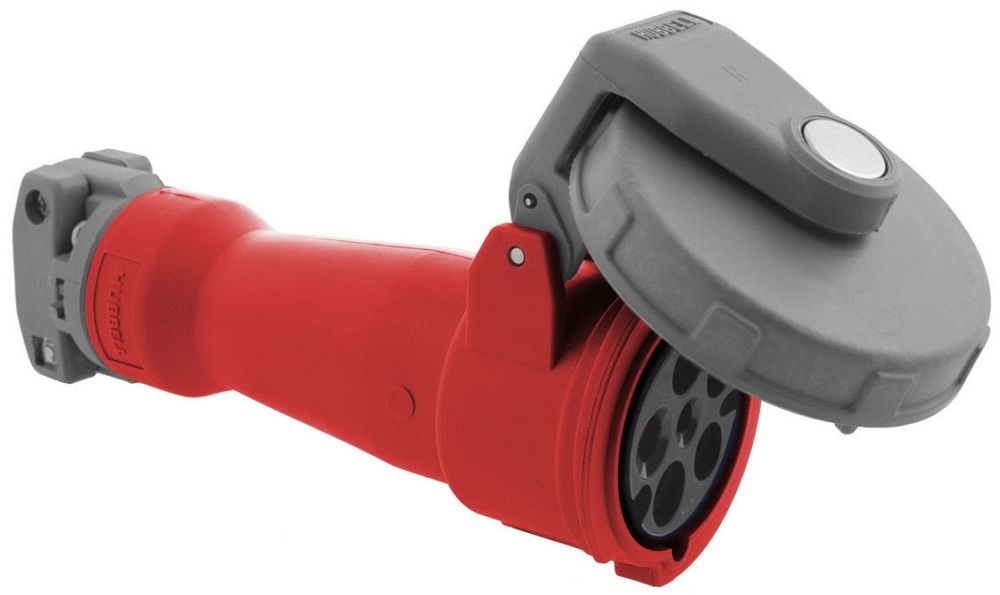

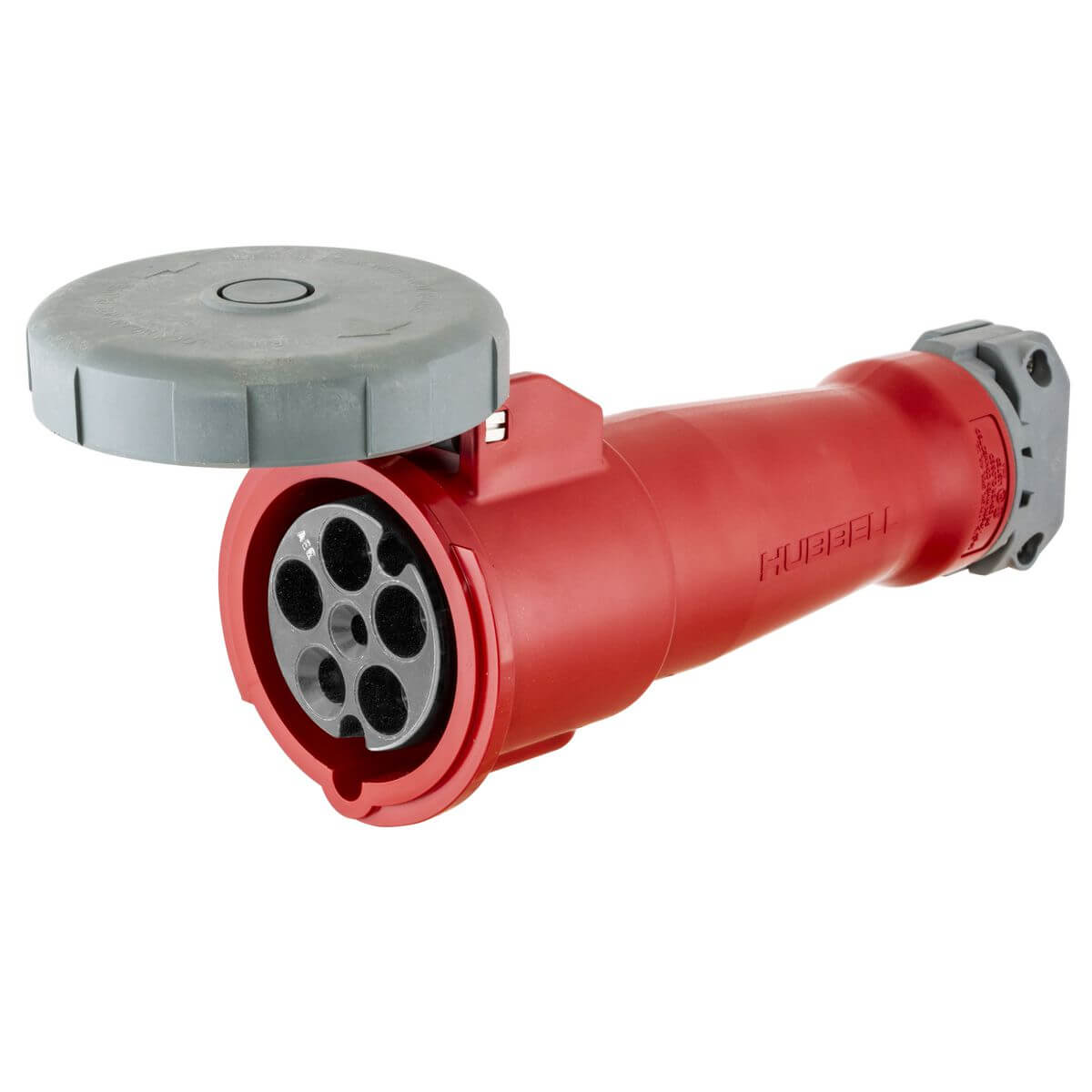

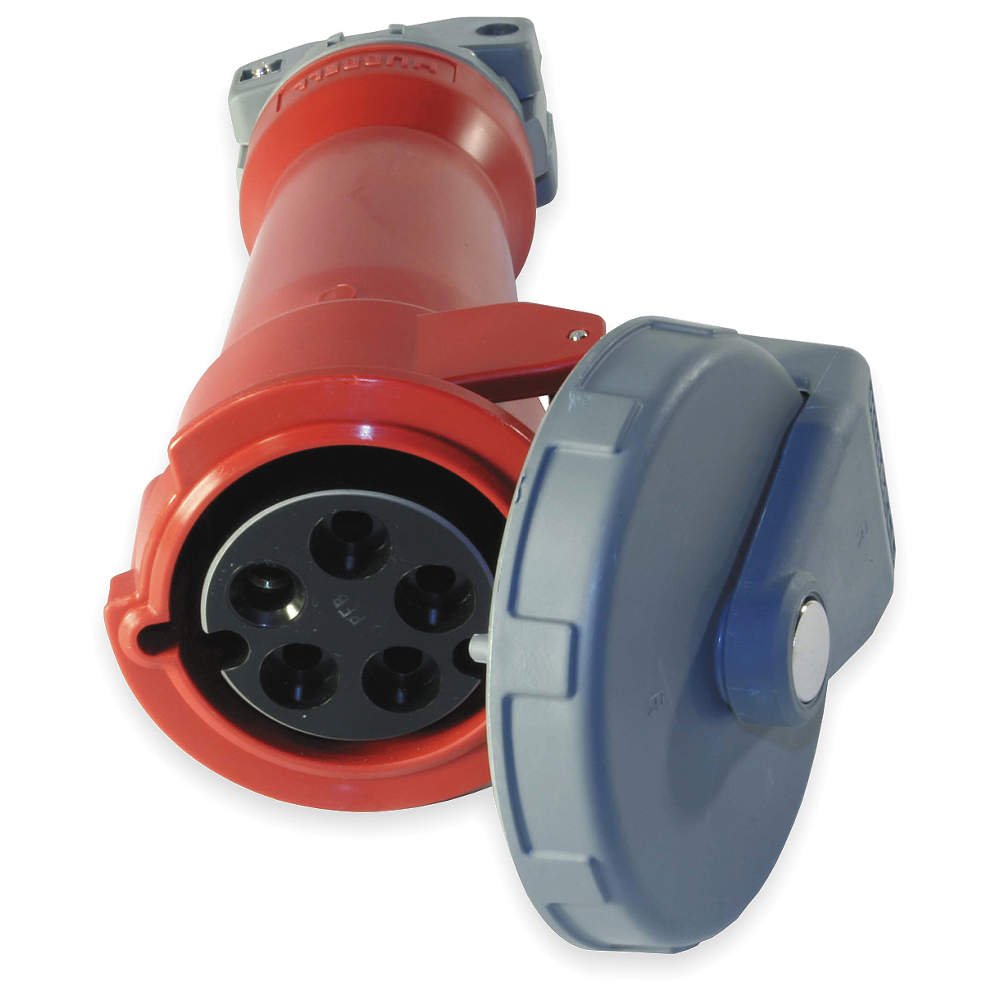

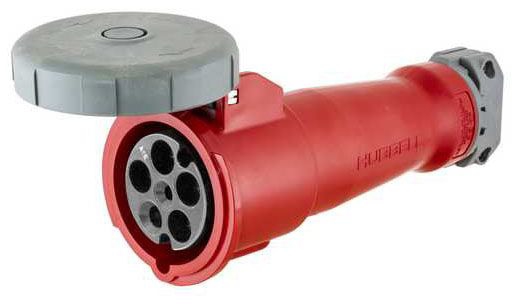

Hubbell . HBL520C7W

'Watertight Pin and Sleeve Connector, Number of Poles 4, Number of Wires 5, Amps 20, Color Red, Switch Rated No, Phase 3Y, HP 5, Voltage 277/480VAC, Body Material Zytel 801 Nylon, Features Abuse Resistant, Standards UL Listed, CSA Certified, IEC 60309-1 and 60309-2'

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. This listing is for each. Amperage 20 Amperage Rating 20 Application High Ampacity Connections Approximate Weight 1.5 Brand WIRING DEVICE-KELLEMS Catalog Number HBL520C7W Color Red Conductor Range #14 AWG to #10 AWG Connection Pressure Screw Terminal Country of Origin USA Environmental Conditions Watertight Insulation Insulated Body Item Type Standard Manufacturer Hubbell Wiring Material Composite Mounting Cord Mounted NEMA Configuration Non-NEMA NEMA Rating Non-NEMA Number Of Poles 4-Pole Number of Conductors 5-Wire Grounding Size Standard Special Features Watertight Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033 Stock Status NONSTOCK Temperature Rating Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. Trade Size Standard Type Watertight Connector Body Voltage 3 Phase Y 277/480

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Connector<br /> Body Material - Pin and Sleeve: Zytel 801 Nylon<br /> Amps - Plugs and Receptacles: 20<br /> Voltage - Plugs and Receptacles: 277/480VAC<br /> Color - Plugs and Receptacles: Red<br /> Number of Poles: 4<br /> Number of Wires: 5<br /> Phase - Electrical: 3Y<br /> Switch Rated: No<br /> Grounding Style: IEC<br /> HP: 5<br /> Features: Abuse Resistant<br /> Standards: UL Listed, CSA Certified, IEC 60309-1 and 60309-2<br /> Item: Watertight Pin and Sleeve Connector
