Hubbell . HBL330C4W

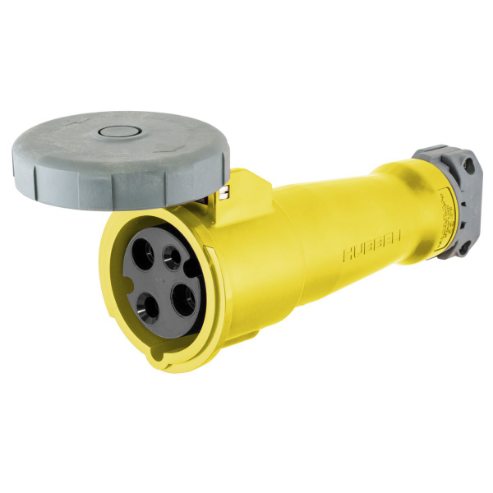

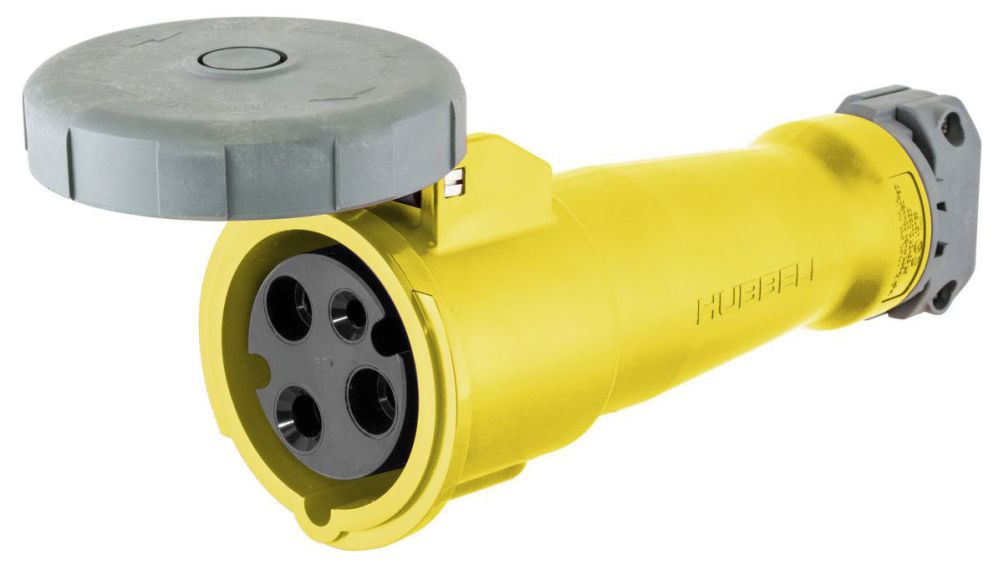

Hubbell Wiring 3-Wire Watertight standard pin and sleeve connector in yellow color has a current rating of 30 Amps and voltage rating of 125 Volts. It features full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%. The 2-Pole connector is used for high ampacity connections. Pin and sleeve connector is UL listed and CSA certified.

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Connector<br /> Body Material - Pin and Sleeve: Zytel 801 Nylon<br /> Amps - Plugs and Receptacles: 30<br /> Voltage - Plugs and Receptacles: 125VAC<br /> Color - Plugs and Receptacles: Yellow<br /> Number of Poles: 2<br /> Number of Wires: 3<br /> Phase - Electrical: 1<br /> Switch Rated: No<br /> Grounding Style: IEC<br /> Features: Abuse Resistant<br /> Standards: UL Listed File No: E146033, UL1682 and UL1686C2, CSA Certified File No: LR280C, C22.2 No. 182.1, IEC 60309-1 and 60309-2<br /> Item: Watertight Pin and Sleeve Connector<br />
