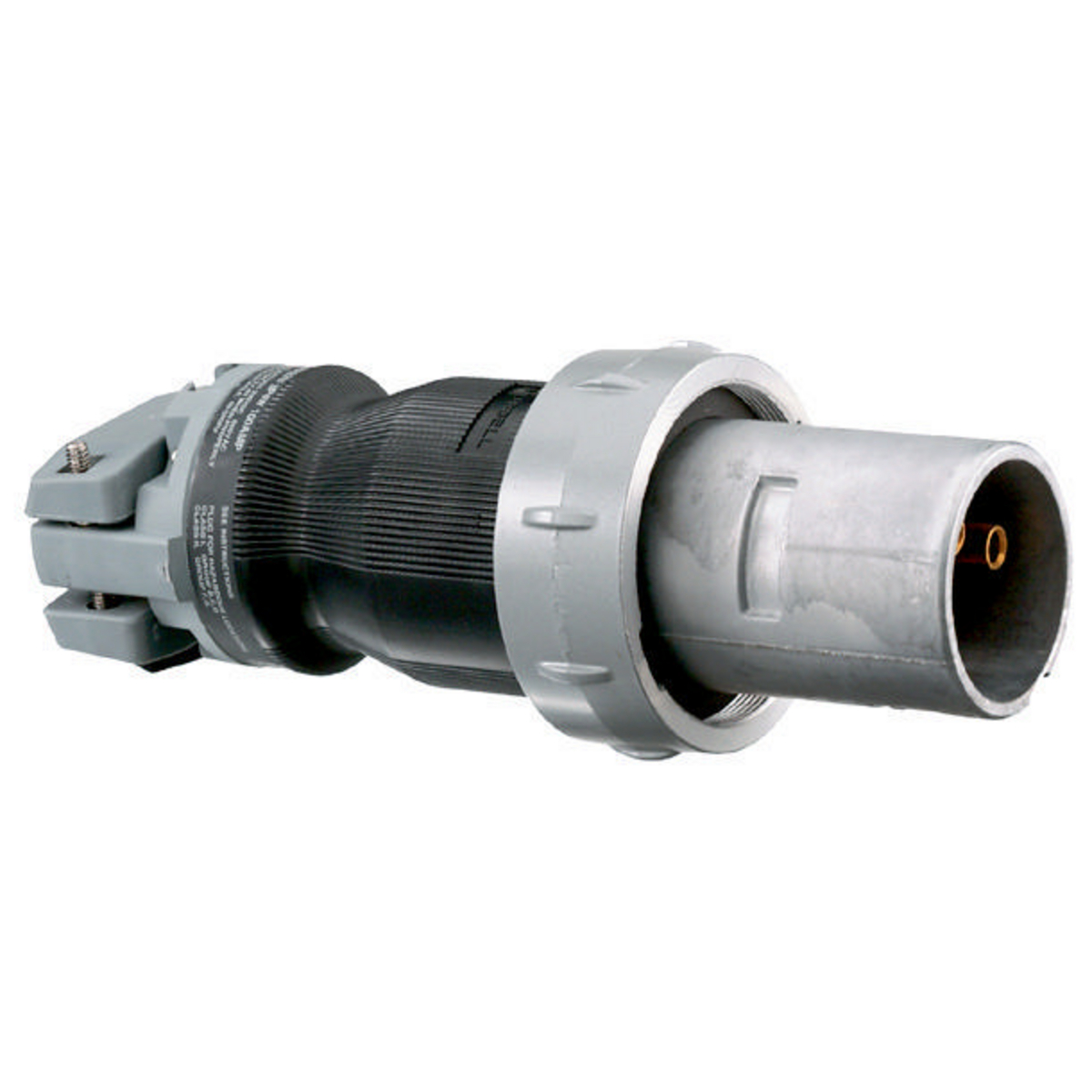

HUBBELL . HBL3100PS2W

Locking ring provides UL Type 4X watertight, dust-tight seal Catalog number and rating visible while in use All-Brass sleeve contacts provide reliable electrical contact Certifications and Compliance: Industry Standards: CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682, UL 50, and UL 1010 Amperage 100 Amperage Rating 100 Application Metallic with Nylon Shroud Approximate Weight 3.900 Brand WIRING DEVICE-KELLEMS Catalog Number HBL3100PS2W Color Black and Gray Connection Pressure Terminal Screws Cord Type All Portable Current Rating 100 Environmental Conditions Watertight Manufacturer Hubbell Wiring Material Composite Mounting Cord Mounted NEMA Configuration Non-NEMA NEMA Rating Non-NEMA Number Of Poles 2-Pole Number Of Wires 3-Wire Series UL 1686 Class 1 Insulgrip Size Standard Sized Special Features Watertight Standard CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682, UL 50, and UL 1010 Stock Status NONSTOCK Trade Size Standard Sized Type Watertight Plug Voltage 600 VAC/250 Wire Size #4 AWG to #2 AWG Wire Size / Gauge #4 AWG to #2 AWG

<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Plug<br /> Body Material - Pin and Sleeve: Valox 357 Housing and Aluminum Shroud<br /> Amps - Plugs and Receptacles: 100<br /> Voltage - Plugs and Receptacles: 600VAC/250VDC<br /> Color - Plugs and Receptacles: Gray<br /> Number of Poles: 2<br /> Number of Wires: 3<br /> Grounding Style: 2<br /> Phase - Electrical: 1<br /> Item: Type 4X Pin and Sleeve Plug<br /> Features: Watertight, Ground Through Dedicated Ground Pin<br /> Standards: UL Listed 1686-C1, UL50 and UL1010, CSA Certified C22.2 No. 182.1, No.94 and No. 159
