Hubbell . HBL300FW

'Connector, NEMA Rating 3R, 4X, 12K, Series 16, Amps AC/DC 300AC/DC, Single Pole Device Style Taper Nose, Cable Range 6 to 2/0, Voltage Rating 600VAC/250VDC, Terminal Connection Double Set Screw, Male/Female Female, Color White, Material Thermoplastic Elastomer, Conductor Material Brass, Standards UL/cUL'

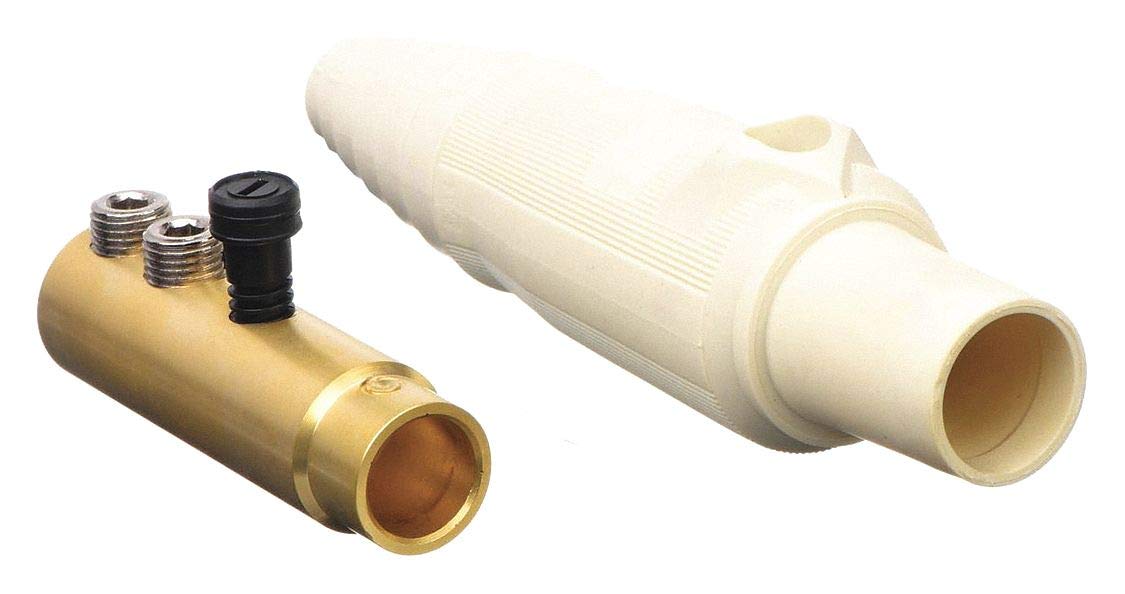

Hubbell wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell Wiring Device-Kellems offers a line of innovative, high quality, single pole plugs, receptacles and accessories. The Hubbell single pole device line is rated for 600 volts AC and 250 volts DC, up to 400 amps. Accepts cable sizes Number 4 through 4/0. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making, and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. High conductivity brass contact: Provides improved performance by helping to reduce operating temperatures and extends life. Extra long locking ring: Non-conductive inner sleeve reduces force required to install housing over contacts. Easier to rotate contact in body for installing retaining screw. Turn and lock symbol: Aids in the mating of devices and provides a clear indication that the devices are properly connected. Easily identifiable cable cut off points for secure fit: Allows you to easily customize the housing to the required cable size. Makes cutting to the correct cable size very easy. Accommodates wide range of cables (0.46 inches to 1.02 inches). Strip gauge: Molded into every plug and receptacle housing. Simplifies installation and saves time. 300 amperes current. Number 4 - 2/0 cable size. White color.

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.<br /><br /> Item: Connector<br /> NEMA Rating: 3R, 4X, 12K<br /> Series: 16<br /> Amps AC/DC: 300AC/DC<br /> Single Pole Device Style: Taper Nose<br /> Cable Range: 6 to 2/0<br /> Voltage Rating: 600VAC/250VDC<br /> Terminal Connection: Double Set Screw<br /> Male/Female: Female<br /> Color: White<br /> Material: Thermoplastic Elastomer<br /> Conductor Material: Brass<br /> Standards: UL/cUL<br />
