Hubbell

Hubbell . HBL2323ST

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHubbell
DimensionUnitinch
UPC783585719269
UnitOfMeasureEA
Weight0.39
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead, moq, multiple, tierMinQty11
height2.4
jsonUrlData924526ffbdad25e5923b
length4.5
MPNHBL2323ST
qtyInStock-1
qtyInStockOverrideLimited Stock
SKUG306170817
tierPrice128.54
urlhttps://www.zoro.com/hubbell-locking-connector-hbl2323st/i/G306170817/
width2.5

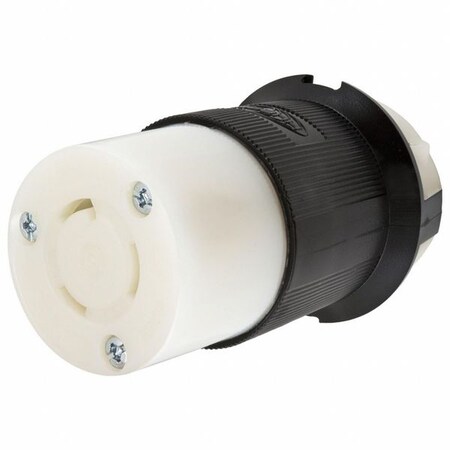

ItemLocking Connector
Number of Poles2
Number of Wires3
Wiring StyleStandard
Midget Locking, ShroudedNo
Contact MaterialBrass
For LocationIndoor
GroundingGrounded
Housing ColorBlack, White
NEMA Receptacle ConfigurationL6-20R
Maximum Wire Size8 AWG
Resistance PropertiesImpact Resistant
Cap TypeNo Cap or Cover
Outside Diameter2.57 in
Housing MaterialNylon
Maximum Operating Temperature75 Degrees C
UL 94 Flammability RatingV-0
Wire Connection TypeSpring Clamp Terminals
Minimum Wire Size16 AWG
MarketIndustrial
Minimum Operating Temperature-40 Degrees C
Overall Length2.26 in
Connection OrientationStraight
Current Rating20 A
Voltage Rating250V AC
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3061708171In Stock11 @ $28.54
kirbyrisk.com3618937111 @ $66.92
crescentelectric.com1411002111 @ $28.43
simsupply.comZO-G3061708171311 @ $39.10
