Hubbell Automation . HBL7485

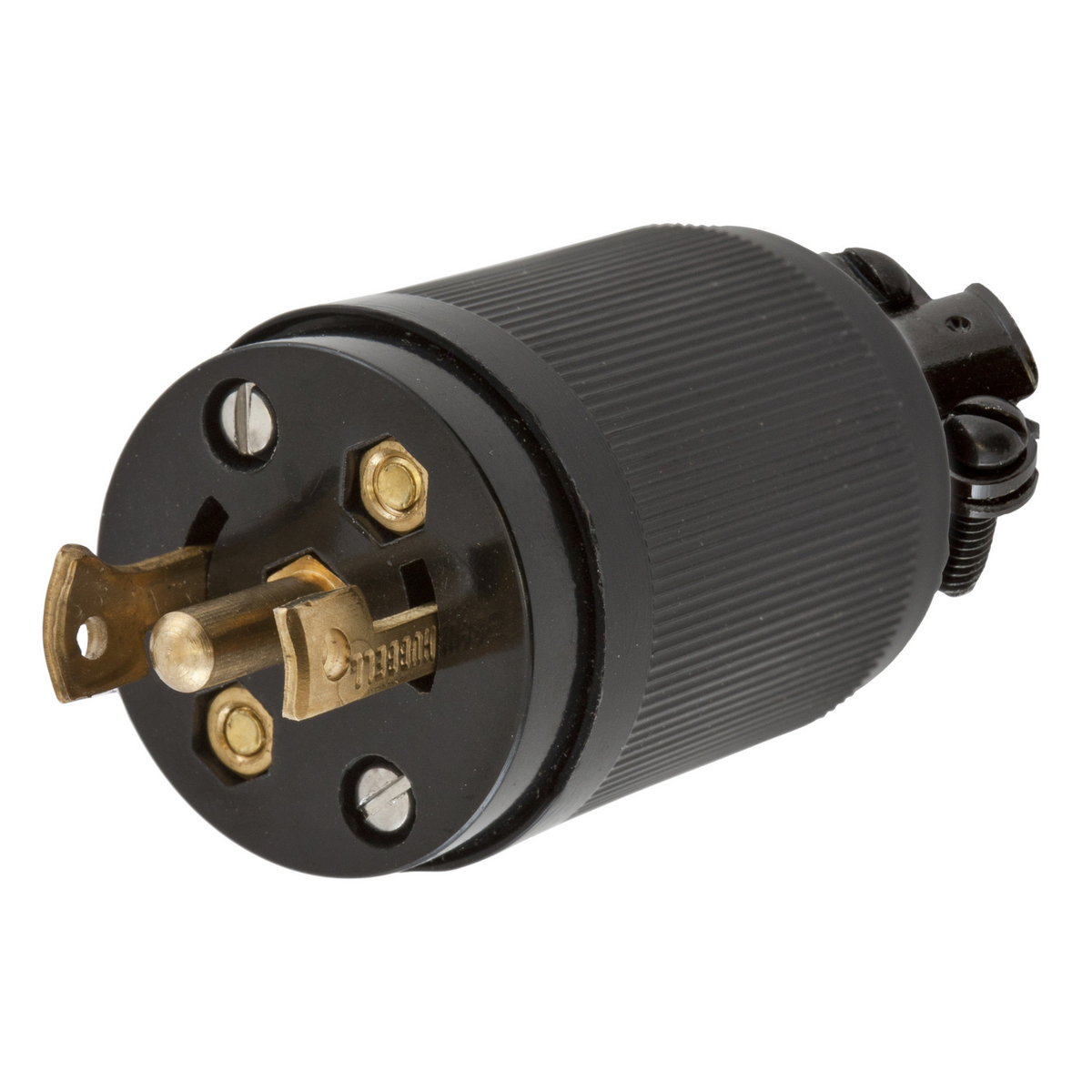

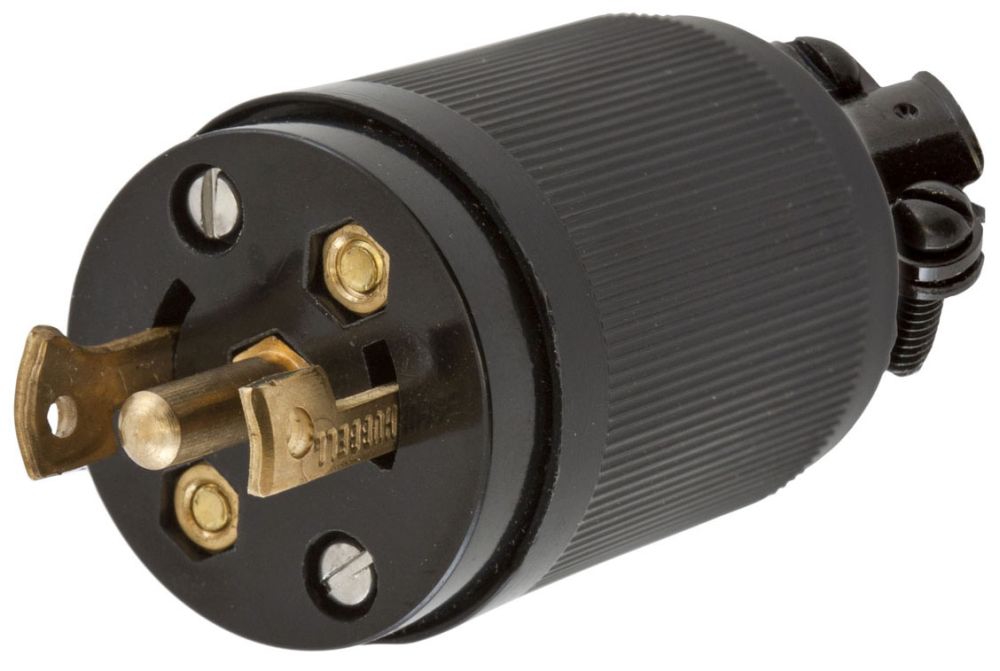

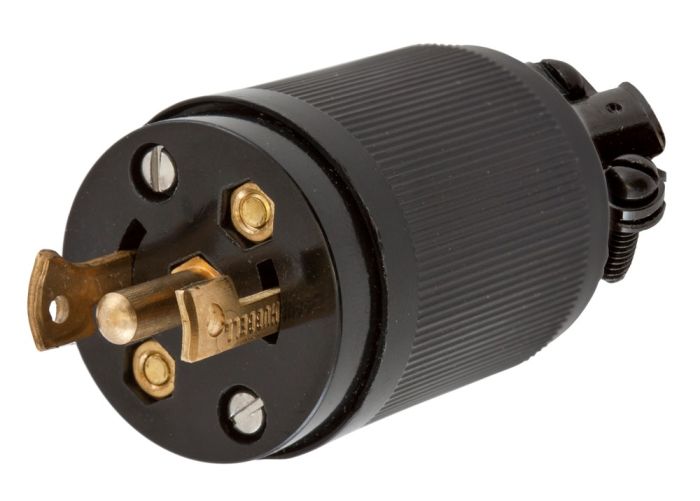

Product Overview The HBL7485 is a 3-pole 3-wire 15A 125/250VAC midget Twist-Lock NEMA ML-3P Non-grounding Plug, made of black nylon body, phenolic base, multiple drive screw terminals, cord grip having 7.1 to 10.7mm cord diameter. UL 498 listed HB or better as per UL94/CSA 22.2 No.0.17 Flammability test IP20 Moisture resistance rating -40 to 75°C Operating temperature range Abuse resistant nylon housing Phenolic body for high heat resistance Angled body design for low profile in tight spaces Totally insulated body adds extra measure of safety Applications Power Management This listing is for Each. Brand Hubbell Wiring Device-Kellems Sub Brand Twist-Lock Devices Country of Origin United States Made in USA Yes Amperage Rating 15 Application Industrial/Commercial Color Black Connection Terminal Screws Material Nylon Mounting Cord Mounted NEMA Rating ML-3P Number of Poles 3 Number of Wires 3-Wire Phase Single Phase Special Features Standard Product Standard Certified to CSA C22.2 ;Listed to UL 498 Item Type Plugs Size 1.17 in x 1.17 in x 2.45 in Environmental Conditions Indoor Dry Unless Protected By Additional Means Voltage Rating 125/250 Wattage 3750 Wire Size #18 AWG to #14 AWG

Conn Power PL 3 POS ST Cable Mount 3 Terminal 1 Port

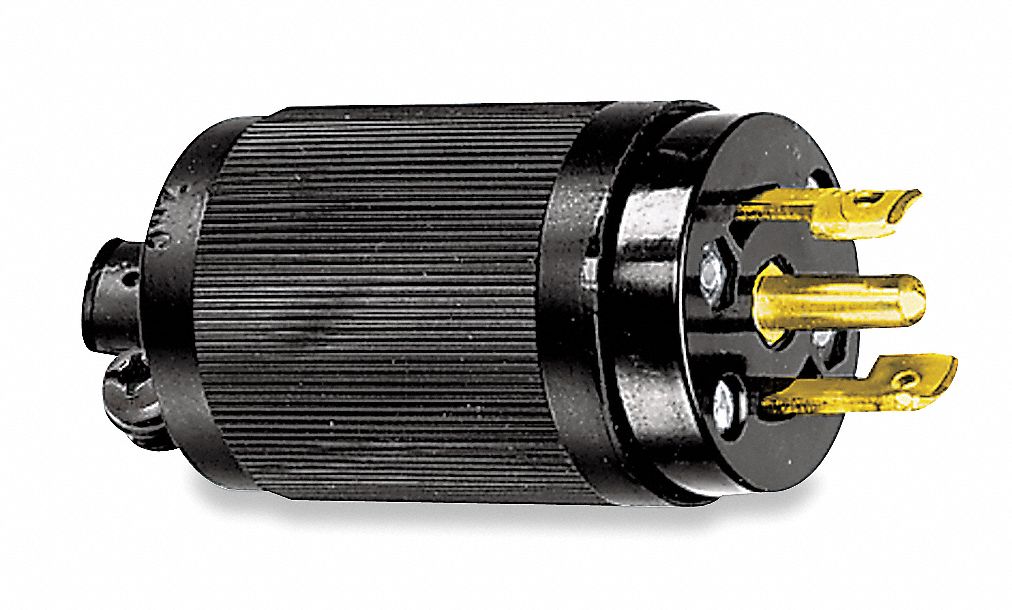

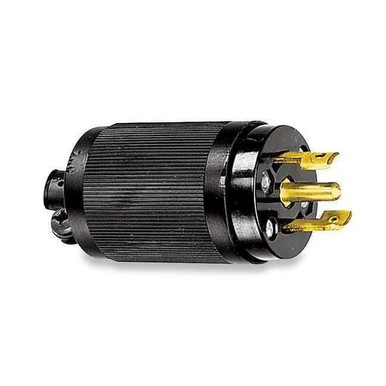

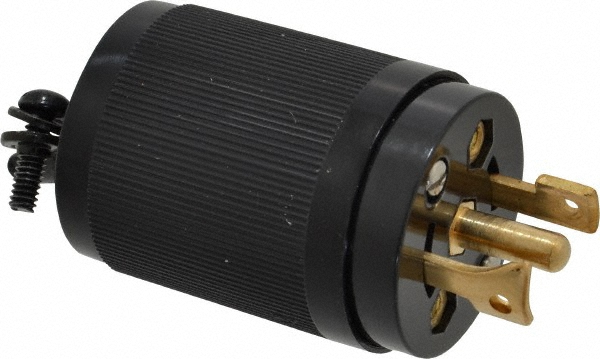

Locking DevicesMidget DevicesNylon plugs and connector bodies resist impact and abuse. Weatherproof boots protect devices from moisture, dust, metal filings, etc. Angle devices are low profile for use in limited spaces. Valise devices have offset jaw cord grips to prevent strain on terminals. 2-wire valise devices have bundling clamp screw terminals; 3-wire valise devices have insulation displacement terminals. UL Listed and CSA Certified.<br /><br /> Item: Midget Locking Plug<br /> Wiring Style: Standard<br /> Amps: 15<br /> NEMA Configuration: ML-3P<br /> Voltage: 120/240VAC<br /> Number of Poles: 3<br /> Number of Wires: 3<br /> Color: Black<br /> Body Material: Nylon<br /> Standards: UL Listed, CSA Certified<br /> Cord Size: 0.281" to 0.421"<br />
