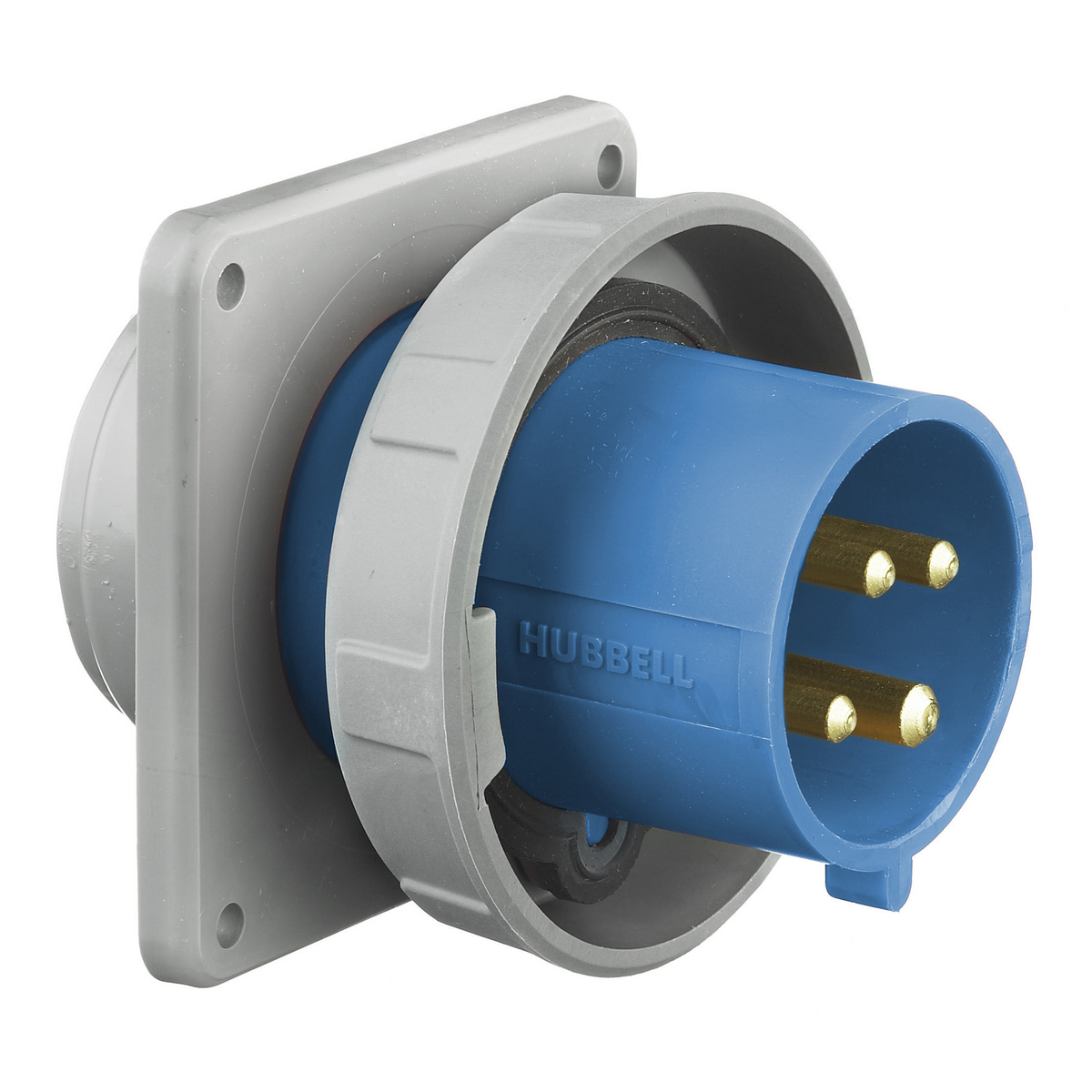

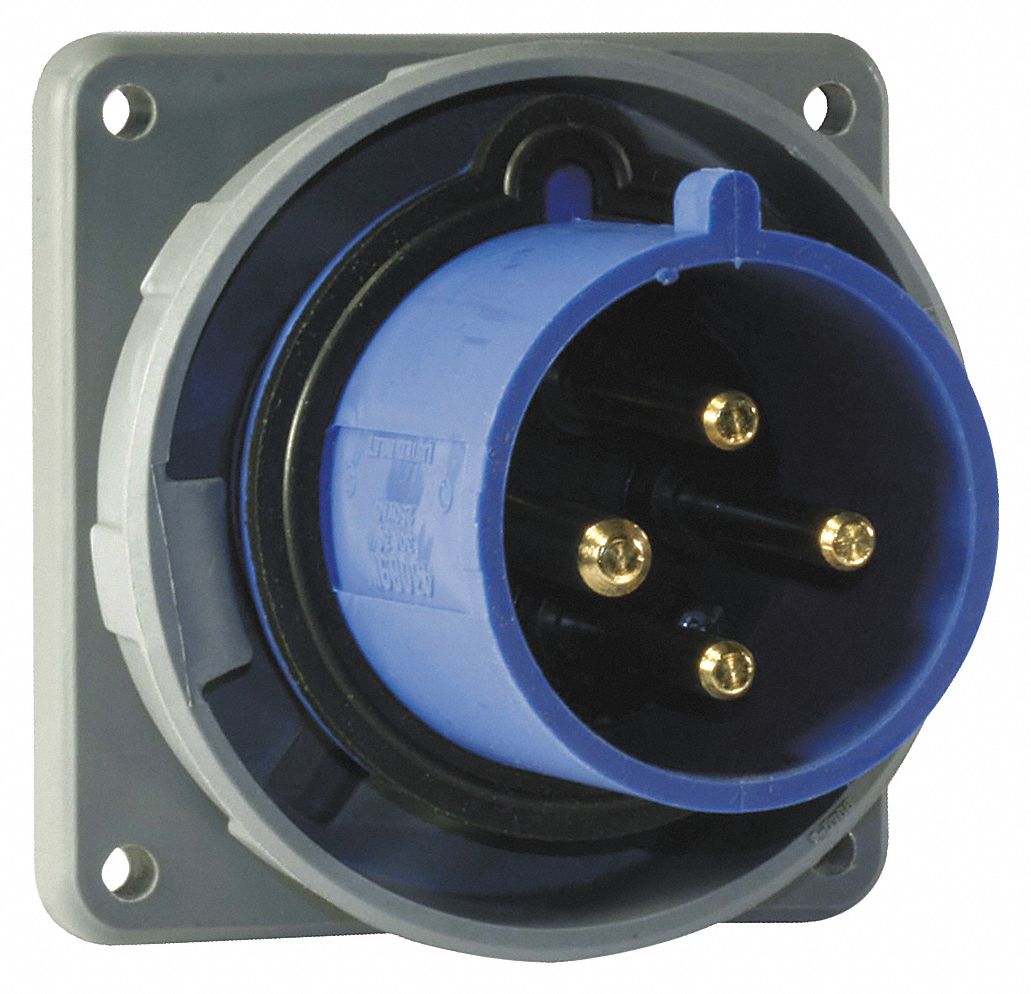

Hubbell . HBL460B9W

Male Inlet IEC 60309 Pin and Sleeve. Rated for <b>250 Volts</b>, 60 Amps, 3-Pole, 4-Wire, IP67 Watertight, Three Phase. CEEtyp clockface pround pin in 3 Hour Position Mates with Female in 9 Hour Position. Housing Color - Blue. UL and CSA Approvals.

'Watertight Pin and Sleeve Inlet, Color Blue, Amps 60, Number of Poles 3, Number of Wires 4, Phase 3, Voltage 250VAC, Features Abuse Resistant, HP 5, Body Material Zytel 101 Nylon, Standards UL Listed, UL 498, CSA Certified to CSA Spec. C22.2 No. 182.2 UL Classified to IEC 309-1 and IEC 309-2'

IEC Nonmetallic Watertight Pin and Sleeve DevicesDesigned and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.<br /><br /> Item - Plugs and Receptacles: Watertight Pin and Sleeve Inlet<br /> Body Material - Pin and Sleeve: Zytel 101 Nylon<br /> Amps - Plugs and Receptacles: 60<br /> Voltage - Plugs and Receptacles: 250VAC<br /> Color - Plugs and Receptacles: Blue<br /> Number of Poles: 3<br /> Number of Wires: 4<br /> Grounding Style: IEC<br /> Phase - Electrical: 3<br /> Features: Abuse Resistant<br /> HP: 5<br /> Standards: UL Listed, UL 498, CSA Certified to CSA Spec. C22.2 No. 182.2 UL Classified to IEC 309-1 and IEC 309-2<br /> Item: Watertight Pin and Sleeve Inlet<br />
