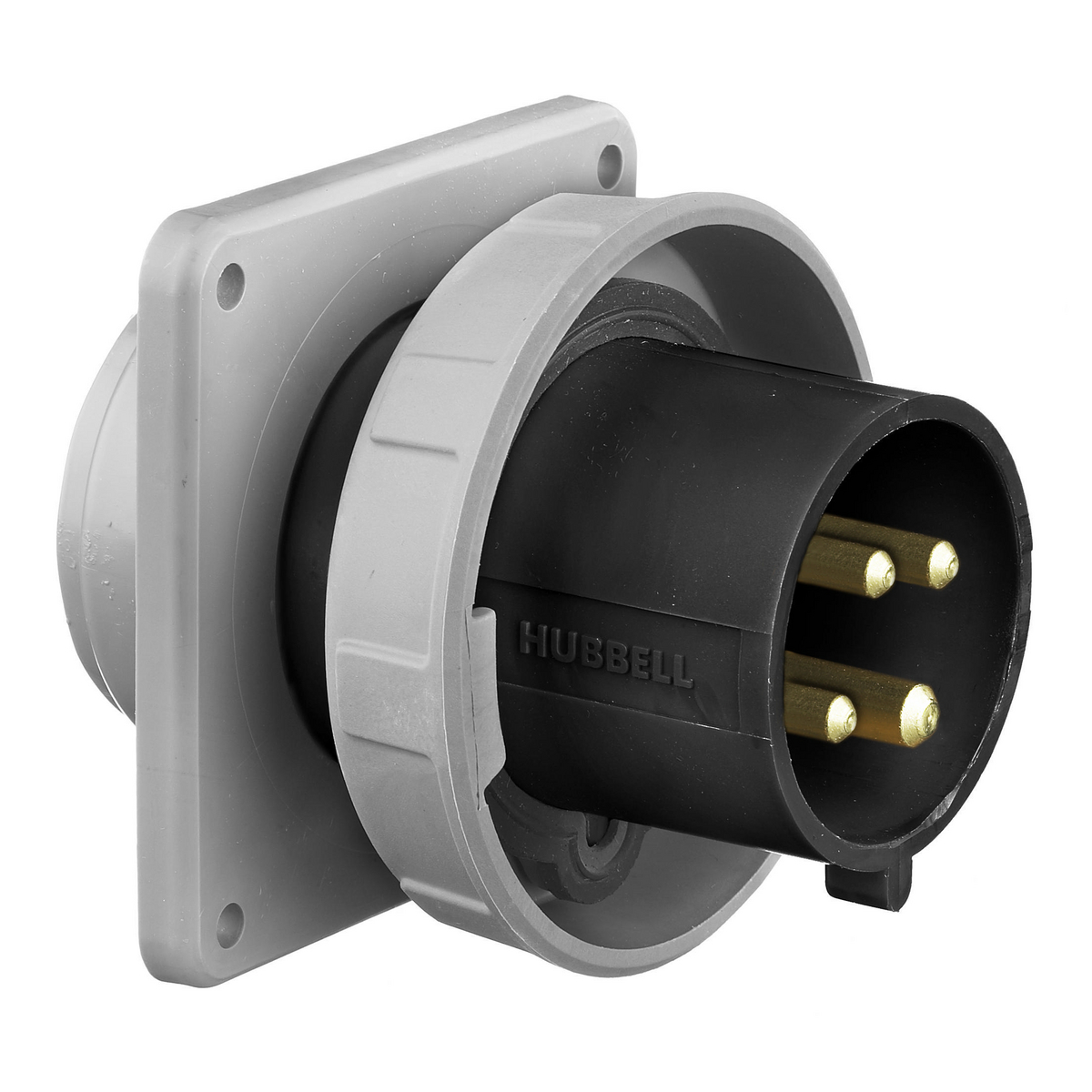

Hubbell . HBL420B5W

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. This listing is for each. Amps 20 Color Black Material Nylon Number of Poles 3 Number of Wires 4 Specification UL Listed, UL Standard 498, CSA Spec C22.2 .2, UL Classified to IEC 309-1 and IEC 309-2 Style Watertight Temperature -40°C - 75°C Type Pin and Sleeve Inlet Voltage 600 AC - 3 Phase Wire Size 14 - 10 AWG Product Weight 0.85 Catalog Page BBV11, Page 10-68 Notes Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service. IP67 Suitability. Color Coded Housings IEC pin and sleeve devices are color coded by voltage for easy identification Watertight Neoprene Sealing Glands Provide a reliable seal at the cable entry point. Prevents infiltration of contaminants Self-Closing Gasketed Cover Detents into position to fully close automatically. Corrosion-resistant hardware Insulated Non-Metallic Housing Super tough, non-conductive and chemical resistant for heavy duty industrial environments Gasketed Sealing Ring Provides watertight seal when mated with receptacle or connector Lockout/Tagout Tapered opening on plug shroud accommodates up to 3/8 inch (9.7mm) lock shackle diameter Solid One-Piece Pins Machined from solid brass for longer life and reliable electrical contact Liquidtight Conduit Adapters Machined aluminum adapters are available to provide a means for attaching flexible liquidtight metal conduit to rear of Hubbell Pin and Sleeve plug or
