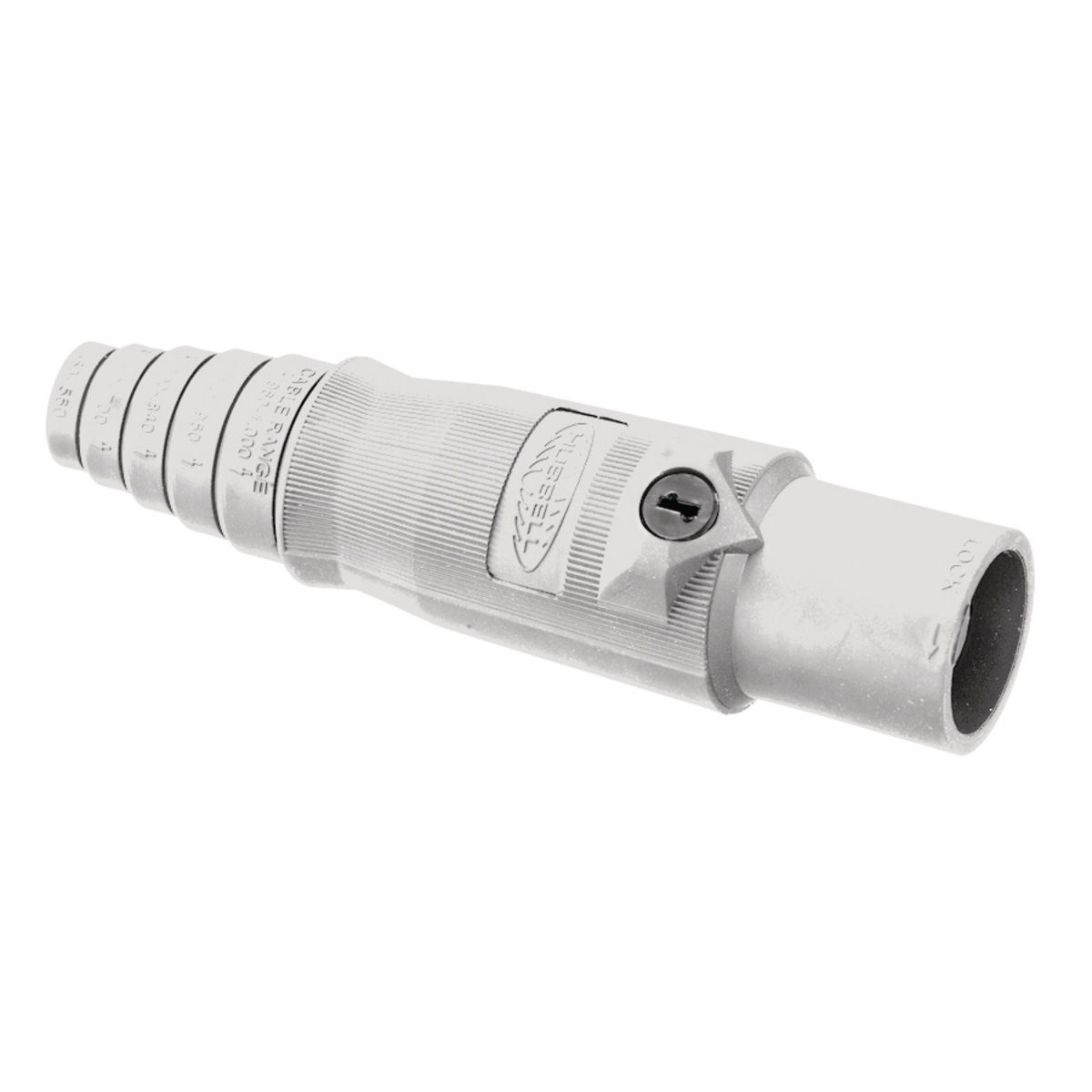

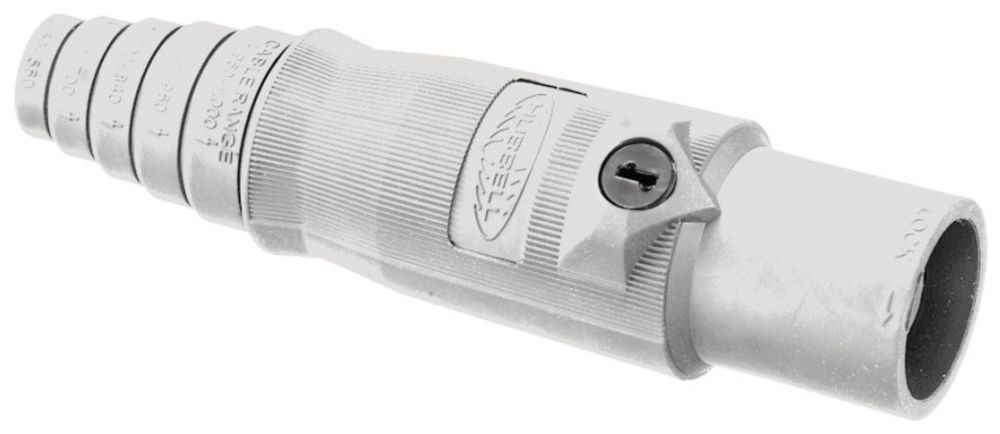

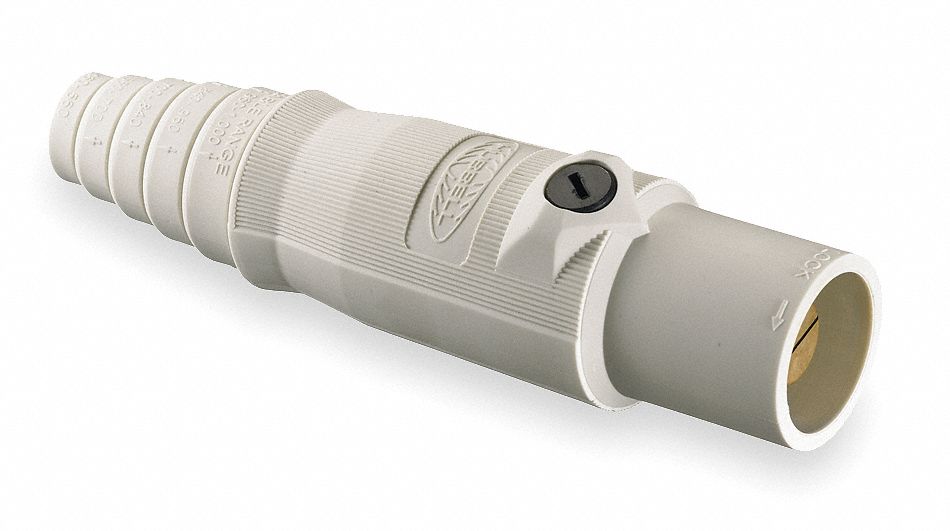

Hubbell . HBL400MW

' Connector, NEMA Rating 3R, 4X, 12K, Series 16, Amps AC/DC 400AC/DC, Single Pole Device Style Taper Nose, Cable Range 2/0 to 4/0, Voltage Rating 600VAC/250VDC, Terminal Connection Double Set Screw, Male/Female Male, Color White, Material Thermoplastic Elastomer, Conductor Material Brass, Standards UL/cUL '

Insulgrip Style Housing for Superior Gripping Conforms to the Users Hand Making it Easy to Connect and Disconnect Even with Gloves on; Rounded Corners Reduce the Possibility of Catching or Snagging on Structures or Equipment; UL Enclosure Types 3R 4X and 12 Rating Suitable for use in Almost any Environment; Double Cam Design Provides High Contact Pressure and Vibration Resistant Connection Which helps Reduce Operating Temperatures and Extends Life; Large Raised Alignment Arrow Aids in the Mating of Devices and Provides a Visual Indication that the Devices are Properly Connected; Non-Conductive Retaining Screw Locks Contacts in Place and Allows for Easy Installation Prevents Contact Movement within Housing Special Screw Thread Requires Fewer Turns than Most Competitors and Reduces the Risk of a Conductive Screw Being Substituted

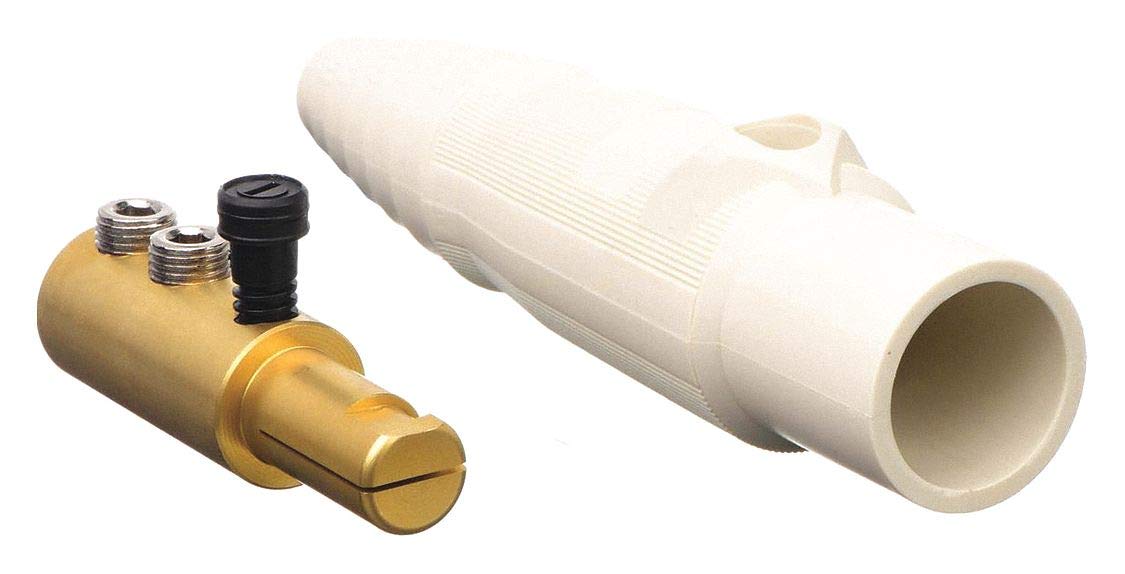

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.<br /><br /> Item: Connector<br /> NEMA Rating: 3R, 4X, 12K<br /> Series: 16<br /> Amps AC/DC: 400AC/DC<br /> Single Pole Device Style: Taper Nose<br /> Cable Range: 2/0 to 4/0<br /> Voltage Rating: 600VAC/250VDC<br /> Terminal Connection: Double Set Screw<br /> Male/Female: Male<br /> Color: White<br /> Material: Thermoplastic Elastomer<br /> Conductor Material: Brass<br /> Standards: UL/cUL<br />
