Compact pistol-grip air-powered impact wrenches (sometimes called stubby wrenches) have a shorter front-to-back length than standard pistol-grip impact wrenches, allowing for access to tight spaces. They have higher torque and larger drive sizes than inline impact wrenches, but often have lower torque than full-size tools. The pistol grip has a trigger that is pressed to activate the wrench. Pistol grips provide ergonomic handling when working on vertical surfaces from the user's waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead. This listing is for each. Technical Specification Item Impact Wrench Power Source Air Powered Air Consumption 30 cfm Air Inlet 3/8 in NPT Air Pressure 90 psi Max. Air Pressure 90 psi Min. Air Pressure 90 psi Min. Hose Size 1/2 in Exhaust Location Bottom Duty Rating General Duty Breakaway Torque 1, 200 ft-lb Fastening Torque 950 ft-lb Free Speed 6, 300 RPM Impact Rated Yes Impact Sound Level 107 dB Impacts per Minute 900 Number of Speed Settings 3 Power to Weight Ratio 99.6 ft-lb/lb Max. Bolt Capacity 1 1/8 in Drive Size 1 in Square Drive Type Standard Retainer Type Friction Ring Clutch Style Twin Hammer Tool Style Compact Vibration Level 10.4 m/sq sec Overall Length 9 1/4 in Handle Material Aluminum Housing Material Aluminum Handle Type Pistol Grip Tool Brand Chicago Pneumatic Built-In Light No Features Combined Power Regulator With Forward/Reverse, Operator Comfort, Powerful Motor And Durable Clutch Includes Torque Regulator Tool Weight 12.1 lb Standards EN ISO 11148-6:2013, ISO-28927-2

Features and Benefits1,200 ft/lbs of ultimate torque providing power to loosen the toughest fastener Twin Hammer high performance clutch for longer life under tough conditions Efficient 6 Vane Motor - power with any 1/2 hose air supply

Air Impact Wrench, Drive Size - Air Tools 1 In. Square, Body Style - Air Tools Pistol, Retainer Type - Air Impacts Ring, Torque Range 100 to 950 ft.-lb., Max. Torque 1200 ft.-lb., Standard Anvil Type - Air Impacts, Anvil Length - Air Impacts 1.250 In., General Duty Duty Cycle - Air Tools, 900 Blows per Minute - Air Tools, Air Inlet Size - Air Tools 3/8 In. NPT, Max. Bolt Capacity 1-1/8 In., 7.50 Average CFM @ 15 Second Run Time, 30.0 CFM @ Full Load, Free Speed 6300 rpm, Required Pressure 90 psi

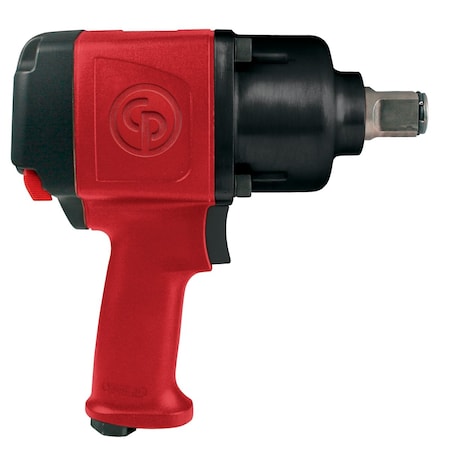

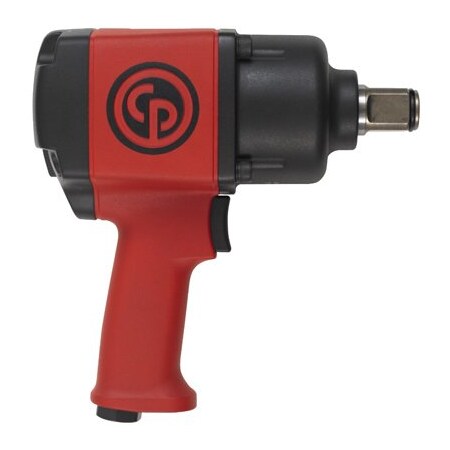

<p><b>Chicago Pneumatic 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpm</b></p><p><b>CP7773</b></p><p>CP7773, 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpm by <b>Chicago Pneumatic</b>. Available to order on FlexibleIndustrial.com - Do you see this <b>Impact Wrench</b> at a lower price? Call or email Customer Service and we'll match the price!</p><p><b>Benefits</b></p> <ul> <li>Ideal for General Maintenance applications</li> <li>Powerful motor and durable clutch</li> <li>Operator comfort due to reduced noise level</li> </ul> <p><b>Features</b></p> <ul> <li>1" pistol impact wrench with ring retainer</li> <li>Twin hammer clutch</li> <li>High power: 1200 ft.lbs (1627 Nm)</li> <li>Compact size with only 12,1 lbs (5.25 kg)</li> <li>Combined power regulator with forward/reverse</li> </ul>
