| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 439C49 | 1 | 1 | ||
 Zoro | G2987667 | 1 | 12 | 1 | 1 @ $15.00 |
 bscsource.com | 68823 | 1 | 1 | 1 @ $28.39 | |
| sustainablesupply.com | C2764722 | 1 | -2 | 1 | 1 @ $16.46 |
 Guardian | 80907231 | 1 | -2 | 1 | 1 @ $32.82 |
| 68823 | 9 | -2 | 6 | 1 @ $11.88 | |
| 68823 | 1 | -2 | 1 | 1 @ $13.84 | |
 simsupply.com | ZO-G2987667 | 1 | 7 | 1 | 1 @ $19.95 |
| 80907231 | 6 | -2 | 6 | 1 @ $21.42 | |
 MRO Supply | 6131616 | 1 | 1 | 1 @ $12.12 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Chicago Latrobe 120DH Series High-Speed Steel Long Length Drill Bit, Uncoated (Bright) Finish, Round Shank with Tang, Parabolic Flute, 135 Degree Spilt Point, 23/64" Size, 6-Pack
Brand: Chicago Latrobe
Details
- Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume
- Manufactured from premium high-speed steel
- 135 degree self-centering split point reduces thrust with easier penetration
- Engineered for deep-hole drilling up to depths of 10 to 16 x diameter
- Bright finishes standard from stock and alternate coatings are available as stock modifications
- Made in the USA
Chicago Latrobe 120DH Series High-Speed Steel Long Length Drill Bit, Uncoated (Bright) Finish, Round Shank, Parabolic Flute, 135 Degree Spilt Point, 23/64" Size (Pack of 1)
Brand: Chicago Latrobe
Details
- Parabolic flute configuration with proprietary Convoflute flute design offers wider flute space, dispersing chips away from the cutting edges more rapidly and increasing coolant flow volume^Manufactured from premium high-speed steel^135 degree self-centering split point reduces thrust with easier penetration^Engineered for deep-hole drilling up to depths of 10 to 16 x diameter^Bright finishes standard from stock and alternate coatings are available as stock modifications
23/64
Brand: Chicago Latrobe
'Taper Length Drill Bit, Fractional Inch, Drill Bit Size 23/64 In., Decimal Equivalent 0.3594, Drill Bit Point Angle 135 Degrees , Drill Bit Material High Speed Steel, Drill Bit Finish Bright (Uncoated)'
Details
- <b>Price For:</b> Each <b>Drill Bit Point Angle</b>: 135 Degrees <b>Drill Bit Finish</b>: Bright <b>Shank Dia.</b>: 23/64" <b>Cutting Direction</b>: Right Hand <b>Drill Bit Material</b>: High Speed Steel <b>Flute Type</b>: Parabolic <b>Sizes Included</b>: 23/64" <b>Item</b>: Taper Length Drill Bit <b>Grade</b>: Heavy Duty <b>Application</b>: For Metalworking <b>Drill Bit Size</b>: 23/64" <b>Point Type</b>: Notched <b>Shank Type</b>: Straight <b>Standards</b>: ANSI
- <b>List Number</b>: 120DH <b>Decimal Equivalent</b>: 0.3594 <b>Coolant Through</b>: No <b>Flute Length</b>: 5-3/8" <b>Overall Length</b>: 6-3/4" <b>Number of Flutes</b>: 2 <b>Drill Bit Dimension Type</b>: Fractional Inch <b>Drill Bit Grouping</b>: Drill Bit <b>Depth x Dia. Ratio</b>: 8xD <b>Coolant Fed</b>: Non-Coolant Through <b>Depth:Dia. Ratio</b>: 8xD <b>Drill Diameter Tolerance</b>: +0.0000"/-0.0010" <b>Drill Bit Point Type</b>: Notched Point <b>Helix Angle</b>: 40 Degrees
- <b>Material Grade - Machining</b>: Heavy Duty <b>Measurement System</b>: Fractional Inch <b>Material - Machining</b>: High Speed Steel <b>Spiral Direction</b>: Right Hand <b>Maximum Drilling Depth</b>: 5-3/8" <b>Drill Point Length</b>: 0.0744" <b>Primary Material Application ISO Code</b>: N, P <b>Shank Length</b>: 1-3/8" <b>Series</b>: 120DH <b>Drill Length Class</b>: Taper Length <b>Shank Type - Machining</b>: Straight <b>Finish - Machining</b>: Bright (Uncoated)
- <b>Primary Material Application</b>: Aluminum, Brass, Bronze, Copper, Magnesium, Steel <b>Country of Origin (subject to change)</b>: United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | DRILL_BITS |
| Part number | 68823 |
| Items per pack | 1 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |
23/64" HSS 135 Deg. Jobber Length Drill Bit
Brand: Chicago Latrobe
Listing
| Product group | BISS Basic |
|---|---|
| Product type | DRILL_BITS |
| Model | 68823 |
| Part number | 68823 |
| Label | CHICAGO-LATROBE |
| Manufacturer | CHICAGO-LATROBE |

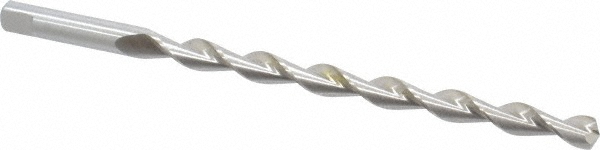

Chicago-Latrobe 68823 120DH Taper Length Drill, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in OAL, HSS, Bright (6 Each)
Brand: Chicago Latrobe
Chicago-Latrobe Taper Length Drill, Series: 120DH, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in Overall Length, 3-7/16 in Cutting Depth, 2 Flutes, Parabolic/Spiral Flute, 3-7/16 in Flute Length, 23/64 in Shank, Tanged Shank, 135 deg Point, K-Notch Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Low Carbon Steel, Non-Ferrous Materials and Soft Alloy Steel
