Order YNA32R4N by Burndy 195007 Aluminum Compression Terminal - US Mega Store

Burndy . YNA32R4N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YNA32R4N
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YNA32R4N by Burndy 195007 Aluminum Compression Terminal - US Mega Store
diameter, height30.225999999999996
height_AttribDimension - Outside Diameter inch
length232.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUYNA32R4N
qtyInStock-2
qtySourceFieldMap

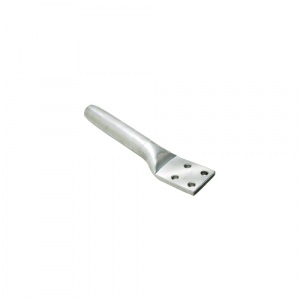

snippet<p>HYLUG, Aluminum Compression Terminal, 300-336.4 Kcmil ACSR, 356.4-350 Kcmil, 395.1-395.2 Kcmil ACAR, 230 Kv </p>
tierPrice1288.7
width76.19999999999999
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index717
MaterialAluminum
Physical Attribute - Pad OrientationStraight
Prefilled Oxide InhibitorY
Trade NameHYLUG&trade;
Dimension - B Length inch3.9 in
Dimension - Bolt Hole Size inch0.56 in
Dimension - E Spacing between Holes fraction1-3/4 in
Dimension - L Length Overall mm232 mm
Dimension - Length Overall inch9.14 in
Dimension - Outside Diameter inch1.19 in
Dimension - Pad Width inch3 in
Conductor - ACAR Str Size, Conductor - ACAR Str Size Range395.1; 395.2
Conductor - ACSR Str Size300.0 (26/7) Ostrich; 336.4 (18/1) Merlin; 336.4 (26/7) Linnet; 336.4 (30/7) Oriole
Conductor - ACSR Str Size Range300.0 (26/7) Ostrich-336.4 (30/7) Oriole
Conductor - AL Str Size, Conductor - AL Str Size Range356.4; 350
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYNA32R4N1-211 @ $288.70
