Burndy 1/2" High Strength Irreversible Connector YGHR26C12. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YGHR26C12

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioBurndy
DimensionUnitmm
height49.275999999999996
height_AttribDimension - Height fraction
length22.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Crimps Required, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, SKU, Keyword, Model, ModelNumber, Model_number, PartNumber, Part_numberYGHR26C12
qtyInStock0
snippetBurndy 1/2" High Strength Irreversible Connector YGHR26C12. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice162.56
Connector TypeTap
Die Index998;1012
Item Type4D
MaterialCopper
Oxide Inhibitor TypePenetrox E
PlatedN
Plating TypeUnplated
Precrimp DieUPRECRIMP12
Prefilled Oxide InhibitorY
TypeTaps cable tie ean gtin upc
Dimension - B Length fraction22/25 in
Dimension - B Length inch, Dimension - Length Overall inch0.88 in
Dimension - Ground Rod Size1/2
Dimension - Height fraction1-47/50 in
Dimension - Height inch1.94 in
Dimension - L Length Overall mm22 mm
Conductor - Copper Str Size2 AWG; 1 AWG; 1/0; 2/0 AWG
Conductor - Copper Str Size Range2 AWG-2/0 AWG
Conductor - Rod Size, Conductor - Rod Size Range1/2 in
Conductor TypeCU C Str-Size A; Rod-Size B
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Certification - UL Listed Direct Burial, UL ListedYes
Industry Standard(s)UL467; IEEE 837
Standards - RoHS Compliance StatusCM
ASIN, AsinB00CBL40FW
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
BindingMisc.
Bullet_pointAcceptable for direct burial in earth or concrete Accommodates a wide range of copper conductors to ground rod High strength irreversible compression ground rod tap connectors High torque strength ground rod connectors Prefilled with Penetrox compound and strip sealed
Chemical_nameslead
ClassificationId306629011
Compliance_typechemical
DisplayNameWiring & Connecting
Height, Width500 75
Identifier00781810220702 0781810220702 781810220702
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleBurndy YGHR26C12 Hytail High Strength Irreversible Compression Ground Rod Tap Connector, #2 Str. through 2/0 Str. Commercial Copper Cable Range, 1/2" Nominal Ground Rod Diameter, 0.88" Length, 1.94" Height
Item_type_keywordpower-distribution-blocks
Linkhttps://m.media-amazon.com/images/I/318C4gPWE1S._SL75_.jpg https://m.media-amazon.com/images/I/318C4gPWE1S.jpg
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameELECTRONIC_COMPONENT_TERMINAL
Product_site_launch_date2013-04-11T20:14:59.194Z
Specification_metUl Listed; Csa Certified; Ieee - 837, Direct Burial
URLhttps://m.media-amazon.com/images/I/318C4gPWE1S._SL75_.jpg
Unit_count1.0
Unitspixels
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYGHR26C12111 @ $62.56
usmegastore.comYGHR26C121-211 @ $65.69
ZoroG302438218111 @ $49.26
Platt.com209807711
Crescent Electric Supply Co216985611
GalcoYGHR26C12-BURN20201 @ $84.32

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

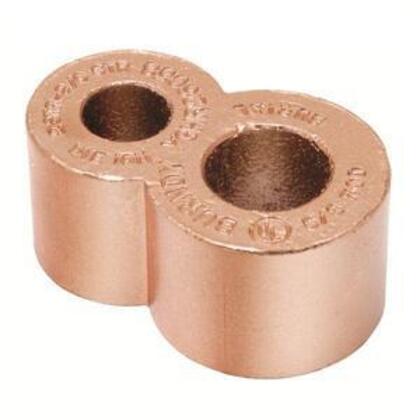

Burndy YGHR26C12 Hytail High Strength Irreversible Compression Ground Rod Tap Connector, #2 Str. through 2/0 Str. Commercial Copper Cable Range, 1/2" Nominal Ground Rod Diameter, 0.88" Length, 1.94" Height
Brand: Burndy
Details
  • High strength irreversible compression ground rod tap connectors
  • High torque strength ground rod connectors
  • Accommodates a wide range of copper conductors to ground rod
  • Acceptable for direct burial in earth or concrete
  • Prefilled with Penetrox compound and strip sealed
Listing
BindingMisc.
Product groupBISS Basic
Product typeELECTRONIC_COMPONENT_TERMINAL
ModelYGHR26C12
Part numberYGHR26C12
Items per pack1
LabelBurndy
ManufacturerBurndy
