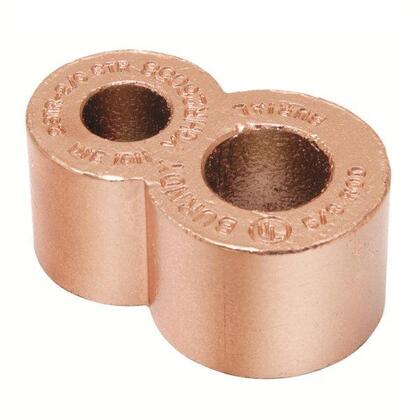

Burndy 1" High Strength Irreversible Connector YGHR26C100. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YGHR26C100

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
height64.77
height_AttribDimension - Height fraction
length22.0
length_AttribDimension - L Length Overall mm
moq, multiple, Physical Attribute - Number of Crimps Required, Dimension - Ground Rod Size1
MPN, SKUYGHR26C100
qtyInStock0
snippetBurndy 1" High Strength Irreversible Connector YGHR26C100. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Connector TypeTap
Die Index998;1012
Item Type4D
MaterialCopper
Oxide Inhibitor TypePenetrox E
PlatedN
Plating TypeUnplated
Prefilled Oxide InhibitorY
TypeTaps
Dimension - B Length fraction22/25 in
Dimension - B Length inch, Dimension - Length Overall inch0.88 in
Dimension - Height fraction2-11/20 in
Dimension - Height inch2.55 in
Dimension - L Length Overall mm22 mm
Conductor - Copper Str Size2 AWG; 1 AWG; 1/0; 2/0 AWG
Conductor - Copper Str Size Range2 AWG-2/0 AWG
Conductor - Rod Size, Conductor - Rod Size Range1 in
Conductor TypeCU C Str-Size A; Rod-Size B
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Certification - UL Listed Direct Burial, UL ListedYes
Industry Standard(s)UL467; IEEE 837
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYGHR26C10011
Graybar9602456111
usmegastore.comYGHR26C1001-211 @ $82.03
Platt.com209807511
GalcoYGHR26C100-BURN20201 @ $110.55
