Order YCAB444N by Burndy Copper Compression Lug - US Mega Store

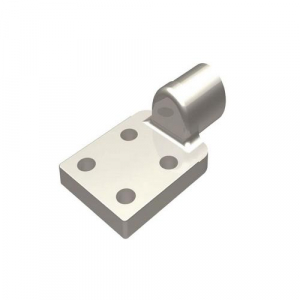

Burndy . YCAB444N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YCAB444N
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YCAB444N by Burndy Copper Compression Lug - US Mega Store
diameter, height, length2.0
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYCAB444N
qtyInStockContact Us
snippet<p>Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus. </p>
tierPrice1452.1
width3.0
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index345
MaterialCopper Alloy
Physical Attribute - Number of Crimps Required, Physical Attribute - Number of Holes4
Plated, Prefilled Oxide InhibitorN
Plating TypeUnplated
Trade NameHYLUG
Dimension - B Length fraction3-9/29 in
Dimension - B Length inch3.31 in
Dimension - D inch, Dimension - Pad Width inch3 in
Dimension - E Spacing between Holes fraction, Dimension - F Width Center to Center inch1.75 in
Dimension - Hole Size fraction14/25 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm198 mm
Dimension - Length Overall inch7.80 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch2 in
Dimension - Strip Length inch3 3/8
Dimension - Stud Size inch1/2
Dimension - Z inch0.63 in
Physical Attribute - Tongue AngleStraight
Conductor - Copper Str Size, Conductor - Copper Str Size Range1000 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYCAB444N1Contact Us11 @ $452.10
