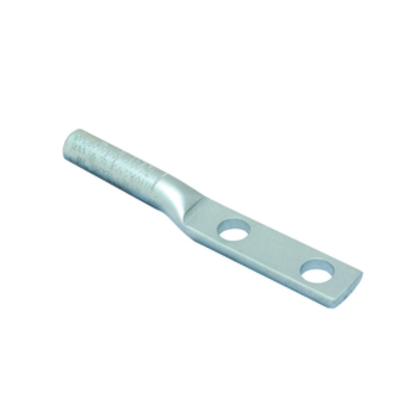

Burndy 207171 Aluminum Compression Lug, 2 Hole YCA30R2N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YCA30R2N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height25.4
height_AttribDimension - Outside Diameter inch
length170.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYCA30R2N
qtyInStock0
snippetBurndy 207171 Aluminum Compression Lug, 2 Hole YCA30R2N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width36.068
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index251
Item Type3C
MaterialAluminum
Physical Attribute - Pad Configuration2 Hole NEMA
PlatedN
Plating TypeUnplated
Prefilled Oxide InhibitorY
Dimension - B Length inch2.57 in
Dimension - Bolt Hole Size inch0.5 in
Dimension - E Spacing between Holes fraction1-3/4 in
Dimension - L Length Overall mm170 mm
Dimension - Length Overall inch6.71 in
Dimension - Outside Diameter inch1.00 in
Dimension - Pad Width inch1.42 in
Conductor - ACSR Str Size266.8 (18/1) Waxwing kcmil;266.8 (26/7) Owl kcmil;266.8 (26/7) Partridge kcmil
Conductor - ACSR Str Size Range266.8 (18/1) Waxwing kcmil-266.8 (26/7) Partridge kcmil
Conductor - AL Str Size, Conductor - AL Str Size Range266 kcmil
Certification - CSA Approved, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYCA30R2N11
Crescent Electric Supply Co201408511
usmegastore.comYCA30R2N1-211 @ $55.60
steinerelectric.com969274111 @ $46.46
Platt.com209734911
GalcoYCA30R2N-BURN111 @ $74.92
