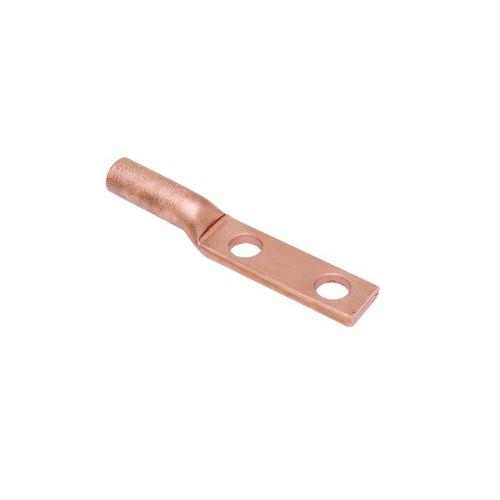

Burndy 185128 Copper Compression Lug, 2 Hole, 750 Kcmil YCA392N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YCA392N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.7
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYCA392N
qtyInStock0
snippetBurndy 185128 Copper Compression Lug, 2 Hole, 750 Kcmil YCA392N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width2.31
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index627
Physical Attribute - Number of Crimps Required, Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
Plated, Prefilled Oxide InhibitorN
Plating TypeUnplated
Trade NameHYLUG™
Dimension - B Length inch, Dimension - D inch3.00 in
Dimension - Hole Size fraction14/25 in
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm183 mm
Dimension - Length Overall inch7.22 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.7 in
Dimension - Pad Width inch2.31 in
Dimension - Strip Length inch3 1/16
Dimension - Stud Size inch1/2
Dimension - Z inch0.62 in
Physical Attribute - Tongue AngleStraight
Conductor - Copper Str Size, Conductor - Copper Str Size Range750 kcmil
Certification - CSA Approved, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYCA392N11
usmegastore.comYCA392N1-211 @ $567.00
Platt.com209735311
GalcoYCA392N-BURN331 @ $749.21
