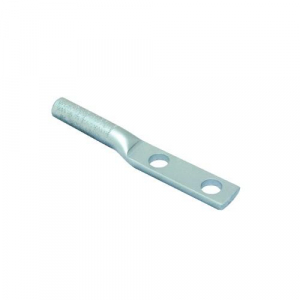

Burndy 207111 Aluminum Compression Lug, 2 Hole, #2 AWG YCA2R2N. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YCA2R2N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height13.208
height_AttribDimension - Outside Diameter inch
length149.0
length_AttribDimension - L Length Overall mm
moq, multiple1
MPN, SKUYCA2R2N
qtyInStock0
snippetBurndy 207111 Aluminum Compression Lug, 2 Hole, #2 AWG YCA2R2N. ✅$50 OFF Orders over $1499 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width31.75
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index239
Item Type3C
MaterialAluminum
Physical Attribute - Pad Configuration2 Hole NEMA
PlatedN
Plating TypeUnplated
Prefilled Oxide InhibitorY
Dimension - B Length inch1.61 in
Dimension - Bolt Hole Size inch0.5 in
Dimension - E Spacing between Holes fraction1-3/4 in
Dimension - L Length Overall mm149 mm
Dimension - Length Overall inch5.90 in
Dimension - Outside Diameter inch0.52 in
Dimension - Pad Width inch1.25 in
Conductor - ACSR Str Size, Conductor - ACSR Str Size Range2 (6/1) Sparrow AWG
Conductor - AL Str Size, Conductor - AL Str Size Range2 AWG
Certification - CSA Approved, Certification - UL Recognized, Certification - cULus, UL ListedNo
Standards - RoHS Compliance StatusCM
