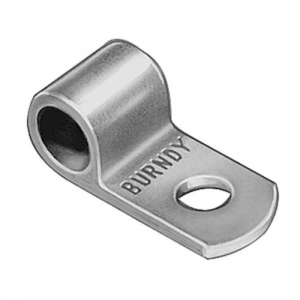

Burndy . YBM26L

Burndy . YBM26L

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYBM26L
qtyInStockContact Us
tierPrice117.84
Connector TypeTerminal - Ring
Die Index598
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
Dimension - B Length fraction13/16 in
Dimension - B Length inch0.78 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm43 mm
Dimension - Length Overall inch1.71 in
Dimension - N inch0.36 in
Dimension - Outside Diameter inch0.76 in
Dimension - Pad Width inch0.84 in
Dimension - Strip Length inch13/16
Dimension - Stud Size inch3/8
Dimension - Z inch0.49 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size2/0 (375/#24)
Conductor - Copper Flex I Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range2/0
Conductor - Copper Str Aircraft SizeAN 2/0
Certification - CSA Approved, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYBM26L1Contact Us11 @ $17.84
Platt.com209728511
GalcoYBM26L-BURN1001001 @ $25.85
