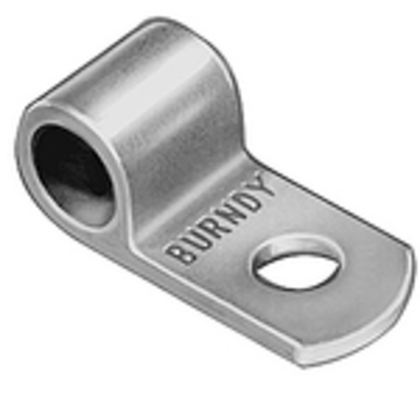

Burndy 618062 Small Terminal, #1 AWG, 3/8" Stud YBM1CL. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YBM1CL

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length0.58
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes, Conductor - Copper Flex I Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range1
MPN, SKUYBM1CL
qtyInStock0
snippetBurndy 618062 Small Terminal, #1 AWG, 3/8" Stud YBM1CL. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.66
width_AttribDimension - Pad Width inch
Connector TypeTerminal - Ring
Die Index572
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeTin
Trade NameHYLUG™
Dimension - B Length fraction5/8 in
Dimension - B Length inch0.59 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Length Overall inch1.53 in
Dimension - N inch0.36 in
Dimension - Outside Diameter inch0.58 in
Dimension - Pad Width inch0.66 in
Dimension - Strip Length inch5/8
Dimension - Stud Size inch3/8
Dimension - Z inch0.49 in
Physical Attribute - Tongue Angle90 Degree
Conductor - Copper DLO Size1 (225/#24)
Conductor - Copper Str Aircraft SizeAN 1
Conductor TypeCU C Solid-Size, CU C Str-Size
Certification - CSA Approved, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYBM1CL11
usmegastore.comYBM1CL1-211 @ $13.09
Platt.com209727911
GalcoYBM1CL-BURN2002001 @ $21.02
