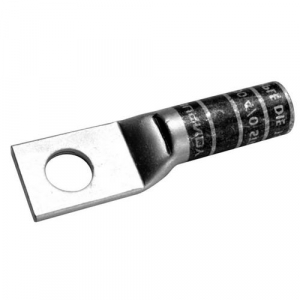

Order YAZV28TC58FX by Burndy 10106729 Cu Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store

Burndy . YAZV28TC58FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZV28TC58FX
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZV28TC58FX by Burndy 10106729 Cu Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store
diameter, height, length0.77
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAZV28TC58FX
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZV28TC58FX, 10106729 Cu Terminal, 1 Hole </strong> </p>
tierPrice121.59
width1.14
width_AttribDimension - Pad Width inch
Color CodePurple
Connector TypeTerminal
Die Index15
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive
Dimension - B Length fraction1-5/8 in
Dimension - B Length inch1.62 in
Dimension - Bolt Hole Size inch, Dimension - N inch0.66 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size inch0.69 in
Dimension - Hole Size mm18 mm
Dimension - L Length Overall mm89 mm
Dimension - Length Overall inch3.51 in
Dimension - Outside Diameter inch0.77 in
Dimension - Pad Width inch1.14 in
Dimension - Strip Length inch1-11/16
Dimension - Z inch0.67 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size4/0 (550/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Str Size, Conductor - Copper Str Size Range4/0 AWG
Conductor - CopperWeld Str Size4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Conductor - CopperWeld Str Size Range4/0 E AWG-4/0 V AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZV28TC58FX1-211 @ $21.59
