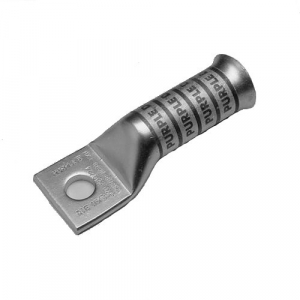

Order YAZV25TC38FXB by Burndy 10061485 Cu Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store

Burndy . YAZV25TC38FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZV25TC38FXB
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZV25TC38FXB by Burndy 10061485 Cu Terminal, 1 Hole, (Pack of 50 pcs) - US Mega Store
Weight0.077
WeightUnitlbs
Weight_AttribWeight
diameter, height0.56
height_AttribDimension - Outside Diameter inch
length2.75
length_AttribLength
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAZV25TC38FXB
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZV25TC38FXB, 10061485 Cu Terminal, 1 Hole </strong> </p>
tierPrice117.74
width0.83
width_AttribWidth
Color CodePink
Connector TypeTerminal
Die Index12
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive
Dimension - B Length fraction1-1/2 in
Dimension - B Length inch1.50 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size inch, Dimension - N inch0.41 in
Dimension - Hole Size mm10 mm
Dimension - Inside Diameter inch0.44 in
Dimension - L Length Overall mm70 mm
Dimension - Length Overall inch, Length2.75 in
Dimension - Outside Diameter inch, Outside Diameter0.56 in
Dimension - Pad Width inch, Width0.83 in
Dimension - Z inch0.42 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size1/0 (275/#24) DLO
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Str Size Range1/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZV25TC38FXB1-211 @ $17.74
