Where can I buy YAZV102TC1490?

YAZV102TC1490 is available from Megadepot, usmegastore.com, Platt.com, Galco. See pricing comparison above.

What is the price of YAZV102TC1490?

Pricing ranges from $13.13 to $19.36 depending on quantity and distributor.

Is YAZV102TC1490 in stock?

Yes, YAZV102TC1490 is currently in stock at multiple distributors with immediate availability.

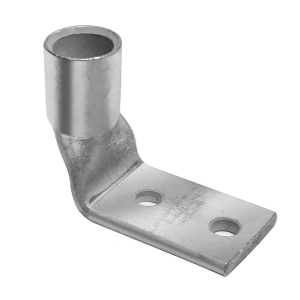

Burndy 25015920 Copper Compression Lug, 2 Hole YAZV102TC1490. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM

Name: Burndy 25015920 Copper Compression Lug, 2 Hole YAZV102TC1490. &#9989;Burndy authorized distributor &#9989;. &#9742; (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Brand: Burndy
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Burndy
DimensionUnit	inch
diameter, length	0.21
height	0.94
height_Attrib	Dimension - Height inch
length_Attrib	Dimension - Outside Diameter inch
moq, multiple	1
MPN, SKU	YAZV102TC1490
qtyInStock	0
snippet	Burndy 25015920 Copper Compression Lug, 2 Hole YAZV102TC1490. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width	0.41
width_Attrib	Dimension - Pad Width inch
Application	Wire Termination
Connector Type	LONG BARREL
Feature - Barrel Style	Skived
Feature - Barrel Type	Long
Finish Type	Tin-Plated
Material, Conductor - Material	COPPER
Physical Attribute - Number of Holes	2
Physical Attribute - Tongue Type	Standard
Plated	Y
Plating Type	Tin - Electro Plated
Type	Long Barrel, Skive, Tin Plated
Dimension - B Length fraction	11/16 in
Dimension - B Length inch	0.69 in
Dimension - Bolt Hole Size inch	0.27 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction	1/4
Dimension - Bolt Size inch	0.25
Dimension - Height inch	0.94 in
Dimension - Hole Size inch	0.27
Dimension - Hole Size mm	6.9 mm
Dimension - L Length Overall mm	37 mm
Dimension - Length Overall inch	1.45 in
Dimension - N inch	0.31 in
Dimension - Outside Diameter inch	0.21 in
Dimension - Pad Width inch	0.41 in
Dimension - Strip Length inch	3/4
Dimension - Z inch	0.34 in
Physical Attribute - Tongue Angle	90 Degree
Rating - KVA, Voltage Rating	35 kV
Voltage - Maximum	35000
Conductor - Copper Str Size	14 AWG-10 AWG
Conductor Size	14-10 AWG
Conductor Type	CODE
Certification - CSA Approved, UL Listed	Yes
Certification - ETL, Certification - UL Recognized, Certification - cULus	No
Industry Standard(s)	UL 486A-486B
Standards - RoHS Compliance Status	CM

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Megadepot	YAZV102TC1490	1		1
usmegastore.com	YAZV102TC1490	1	-2	1	1 @ $13.13
Platt.com	2097176	1		1
Galco	YAZV102TC1490-BURN	10		10	1 @ $19.36
