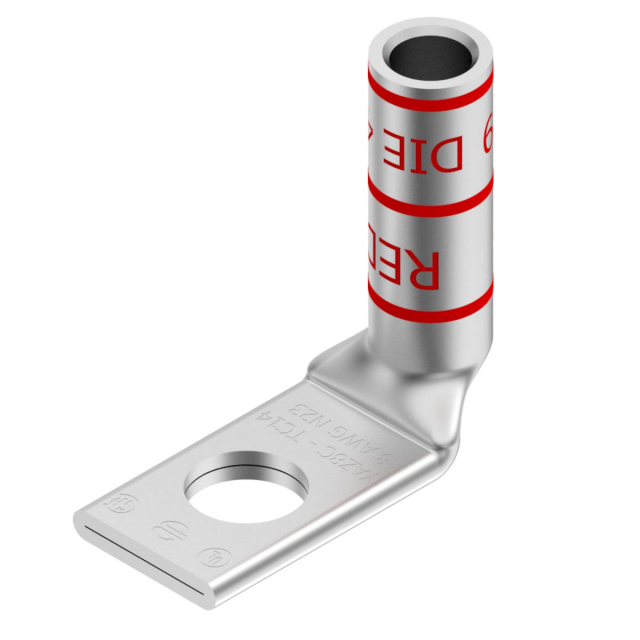

Burndy 25020320 Copper Compression Lug, #8 AWG YAZ8CTC1490. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAZ8CTC1490

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, length, Dimension - Hole Size inch0.27
height1.0
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYAZ8CTC1490
qtyInStock0
snippetBurndy 25020320 Copper Compression Lug, #8 AWG YAZ8CTC1490. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width0.41
width_AttribDimension - Pad Width inch
ApplicationWire Termination
Color CodeRed
Connector TypeLONG BARREL
Die Index49
EU RoHS IndicatorContact Manufacturer
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Material, Conductor - MaterialCOPPER
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction1-1/4 in
Dimension - B Length inch1.25 in
Dimension - Bolt Hole Size inch, Dimension - Outside Diameter inch0.27 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction1/4
Dimension - Bolt Size inch0.25
Dimension - Height inch1.00 in
Dimension - Hole Size mm6.9 mm
Dimension - L Length Overall mm22 mm
Dimension - Length Overall inch0.86 in
Dimension - N inch0.31 in
Dimension - Pad Width inch0.41 in
Dimension - Strip Length inch7/8
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA, Voltage Rating35 kV
Voltage - Maximum35000
Conductor - Copper Str Navy Size23 (7) Navy
Conductor - Copper Str Size, Conductor Size8 AWG
Conductor TypeCODE
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ8CTC149011
usmegastore.comYAZ8CTC14901-211 @ $5.58
Graybar99549716111 @ $8.53
Platt.com209717411
GalcoYAZ8CTC1490-BURN50501 @ $8.77
