Order YAZ8C2TC10SL by Burndy 10002912 Copper Compression Terminal, (Pack of 50 pcs) - US Mega Store

Burndy . YAZ8C2TC10SL

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ8C2TC10SL
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ8C2TC10SL by Burndy 10002912 Copper Compression Terminal, (Pack of 50 pcs) - US Mega Store
diameter, height, length0.27
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAZ8C2TC10SL
qtyInStock-2
qtySourceFieldMap

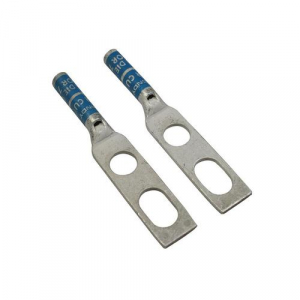

snippet<p>Hylug Slotted, Copper Compression Terminal, 2 Hole, Dieindex 49. </p>
tierPrice111.15
width0.44
width_AttribDimension - Pad Width inch
Color CodeRed
Connector TypeTerminal
Die Index49
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction3/4 in
Dimension - B Length inch0.75 in
Dimension - Hole Size fraction1/5
Dimension - Hole Size inch0.21 in
Dimension - Hole Size mm5 mm
Dimension - L Length Overall mm56 mm
Dimension - Length Overall inch2.21 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.27 in
Dimension - Pad Width inch0.44 in
Dimension - Strip Length inch13/16
Dimension - Stud Size inch#10
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range8 (37/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Str Size, Conductor - Copper Str Size Range, Conductor - CopperWeld C Solid Size, Conductor - CopperWeld Solid Size Range8 AWG
Conductor - Copper Solid Size Range8-6 Sol
Conductor - Copper Str Navy Size23 (7) Navy
Conductor - CopperWeld Str Size8 A AWG; 8 C AWG; 8 D AWG
Conductor - CopperWeld Str Size Range8 A AWG-8 D AWG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ8C2TC10SL1-211 @ $11.15
