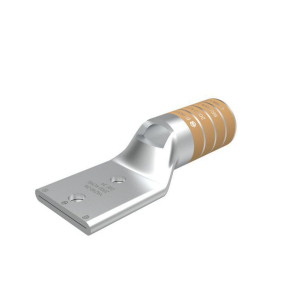

Burndy 25019179 Copper Compression Lug, 2 Hole YAZ482N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length2.12
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYAZ482N
qtyInStock0
snippetBurndy 25019179 Copper Compression Lug, 2 Hole YAZ482N. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width3.1
width_AttribDimension - Pad Width inch
ApplicationWire Termination
Color CodeBrown
Connector TypeLONG BARREL
Die Index34
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Material, Conductor - MaterialCOPPER
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length fraction3-7/16 in
Dimension - B Length inch3.44 in
Dimension - Bolt Size fraction, Dimension - Hole Size fraction, Dimension - Stud Size fraction, Dimension - Stud Size inch1/2
Dimension - Bolt Size inch0.5
Dimension - Hole Size inch0.56
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm200 mm
Dimension - Length Overall inch7.89 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch2.12 in
Dimension - Pad Width inch3.10 in
Dimension - Strip Length inch3-1/2
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA, Voltage Rating35 kV
Voltage - Maximum35000
Conductor - Copper Str Size2000 kcmil
Conductor Size2000 KCMIL
Conductor TypeCODE
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s), Standards - Industry Standards MetUL 486A-486B
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ482N11
usmegastore.comYAZ482N1-211 @ $528.00
Platt.com209713411
GalcoYAZ482N-BURN111 @ $728.72
