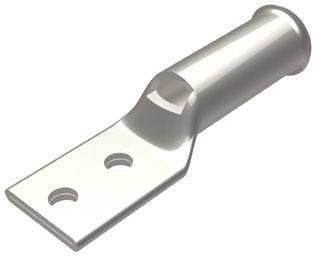

Burndy 25020241 Copper Compression Lug, 350 Kcmil YAZ342NTCFXB. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy . YAZ342NTCFXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, length0.42
height1.74
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAZ342NTCFXB
qtyInStock0
snippetBurndy 25020241 Copper Compression Lug, 350 Kcmil YAZ342NTCFXB. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice161.89
width0.6
width_AttribDimension - Pad Width inch
Color CodeBrown
Connector TypeTerminal
Die Index10
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Plated, Certification - CSA Approved, UL ListedYes
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch1.25 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.21 in
Dimension - Height inch1.74 in
Dimension - Hole Size mm5 mm
Dimension - L Length Overall mm40 mm
Dimension - Length Overall inch1.58 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.42 in
Dimension - Pad Width inch0.60 in
Dimension - Strip Length inch1-5/16
Dimension - Z inch1.03 in
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range60 (37) Navy
Conductor - Copper Str Size350 kcmil
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYAZ342NTCFXB111 @ $61.89
gordonelectricsupply.comYAZ342NTCFXB1-211 @ $382.68
usmegastore.comYAZ342NTCFXB1-211 @ $64.98
ZoroG205778251661 @ $38.01
Platt.com209706211
GalcoYAZ342NTCFXB-BURN661 @ $83.40
